I/O data transfer (implicit messages)
I/O data mapping
48
Lenze · Decentralised frequency inverter 8400 motec (EtherNet/IP™ option) · EDS84DMOTEIP EN 3.0 - 02/2019
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
8.2 I/O data mapping
I/O data transfer takes place via the MCI interface.
• The I/O data are accessed via the port blocks MCI_IN and MCI_OUT. These port blocks are also
referred to as I/O data channels.
•The MCI_IN port block maps the received data objects.
•The MCI_OUT port block maps the data objects to be sent.
• To the scanner, up to 10 data words (max. 20 bytes) can be sent.
• From the scanner, up to 8 data words (max. 16 bytes) can be received.
• The ports/function blocks of the I/O data objects are interconnected with the Lenze »Engineer«.

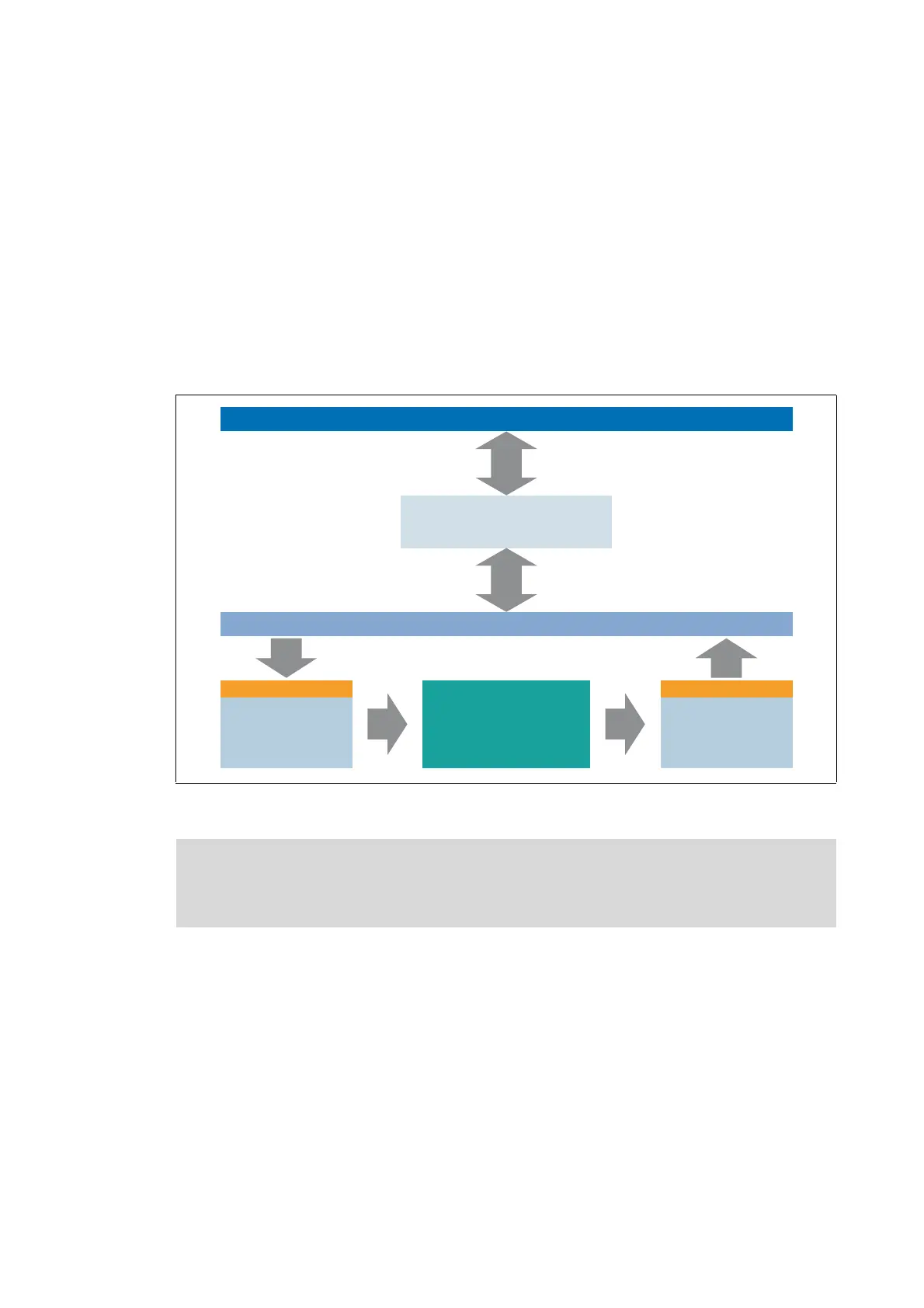

[8-1] External and internal data transfer between the bus system, inverter, and application
Field bus
8400
Application
Communication Unit
Drive Unit
MCI_IN
Word 1
...
Word 8
MCI_OUT
Word 1
...
Word 10
 Reference manual/online help for the Inverter Drive 8400 motec
Here you will find detailed information on the port/function block interconnection in
the »Engineer« and on the port blocks.
