Lenze · Decentralised frequency inverter 8400 motec (EtherNet/IP™ option) · EDS84DMOTEIP EN 3.0 - 02/2019 23
Installation
Electrical installation
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
5.2 Electrical installation
5.2.1 Network topology
It is typical of EtherNet/IP to have a rather free topology the limiting factor of which is large
message latencies due to e.g. switches connected in series.
Internal switch latency
( 20)
The combination of a line and a stub is useful for system wiring.
EtherNet/IP supports the following topologies:
•Line

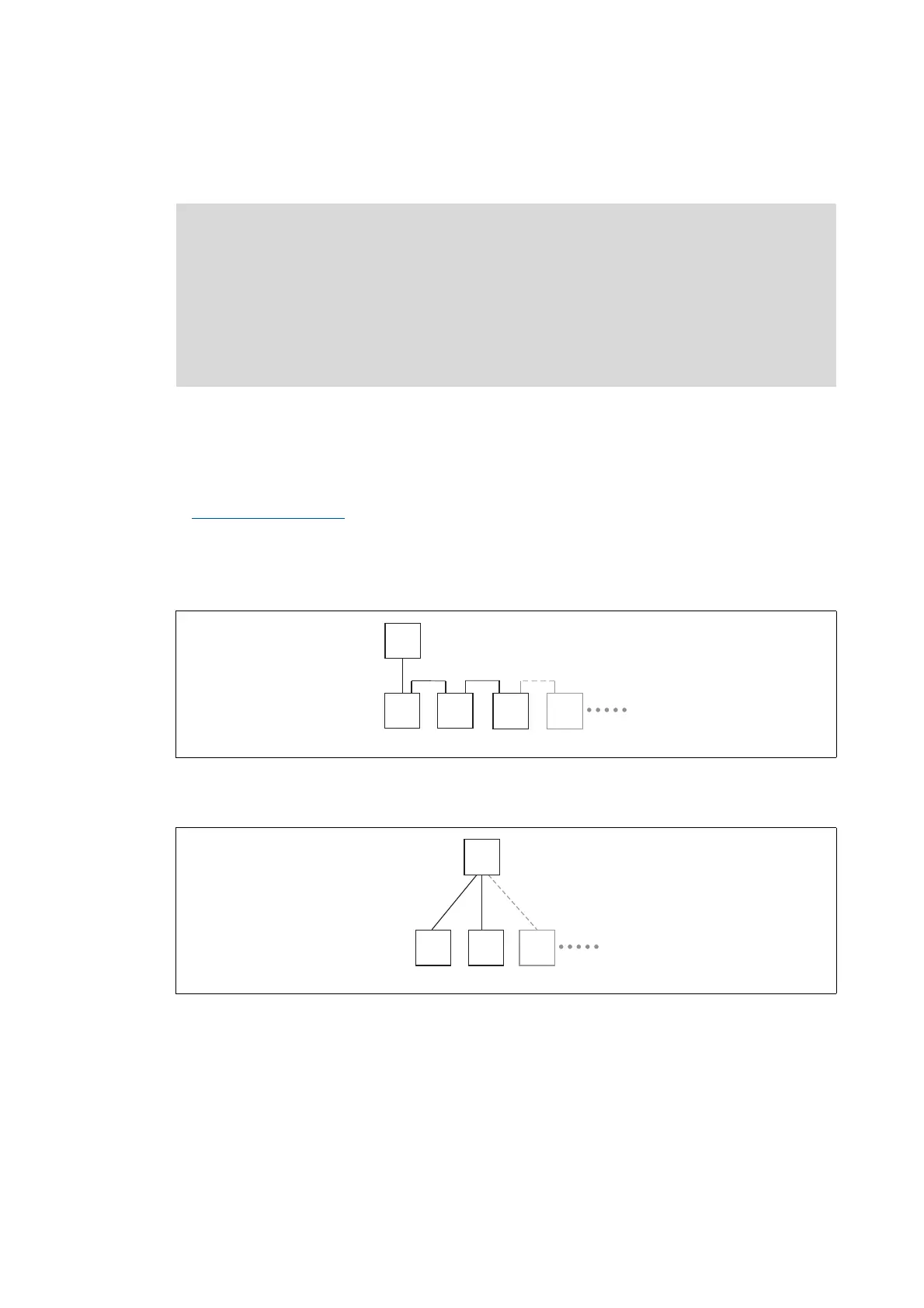

[5-2] Line topology (S = scanner, A = adapter)
•Switch / star
[5-3] Switch / star topology (SW = switch, A = adapter)
 Hardware manual for Inverter Drives 8400 motec
Here you can find detailed information on ...
• the digital and analog inputs/outputs;
•the relay output;
• the integrated safety system (safety option);
• the wiring of the terminals.
Observe the notes and wiring instructions provided therein!
E94AYCEO008
AA
S
A
A
E94AYCEO005
SW
AAA
