Lenze EtherNet/IP E84DGFCGEJP User Manual

Lenze · Decentralised frequency inverter 8400 motec (EtherNet/IP™ option) · EDS84DMOTEIP EN 3.0 - 02/2019 75
Parameter data transfer (explicit messages)
Write parameters
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

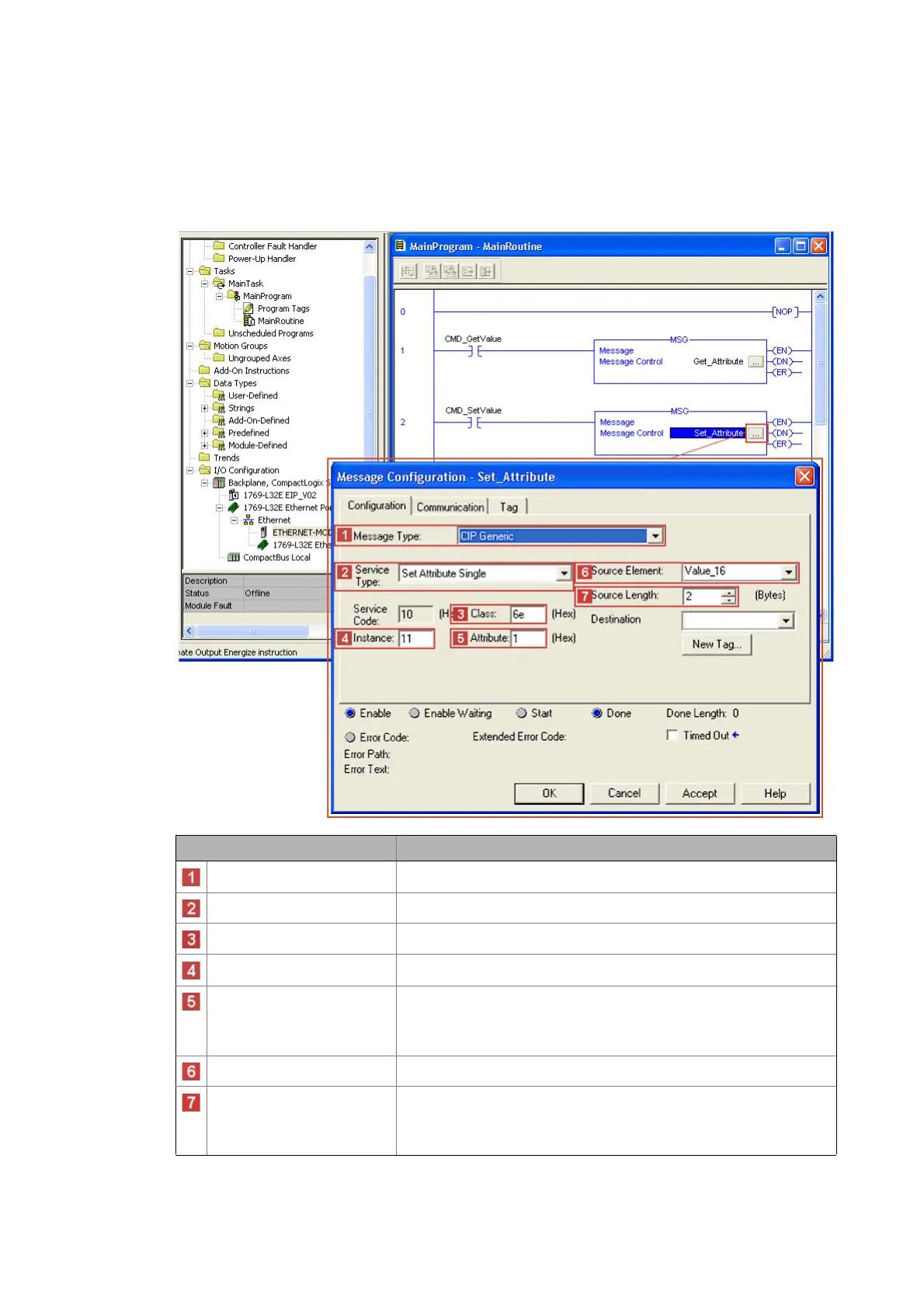

9.1 Write parameters
In order to write data into code C00011 (reference speed) of the Inverter Drive 8400 motec by
means of explicit message transfer, for example, the following settings are necessary:
Settings Value / description
Message Type "CIP Generic"
Service Type "Set Attribute Single" (service code "0x10")
Class "6E" (access to Lenze code)
Instance "11" = Lenze code C00011 of Inverter Drive 8400 motec
Attribute "1" = Subcode of the Lenze code
• If the corresponding Lenze code does not have a subcode, the value ’1’
must be entered here.
• A display code cannot be configured by the "SET" service.
Source Element Variable in the PLC program used as data source for writing.
Source Length The source length must be set to the length (data type) of the current
parameter (see parameter reference in the reference manual/online help of
the inverter).
For writing to code C00011, set the source length to "2 bytes".
