6.3.2 Setting via codes in the »Engineer«

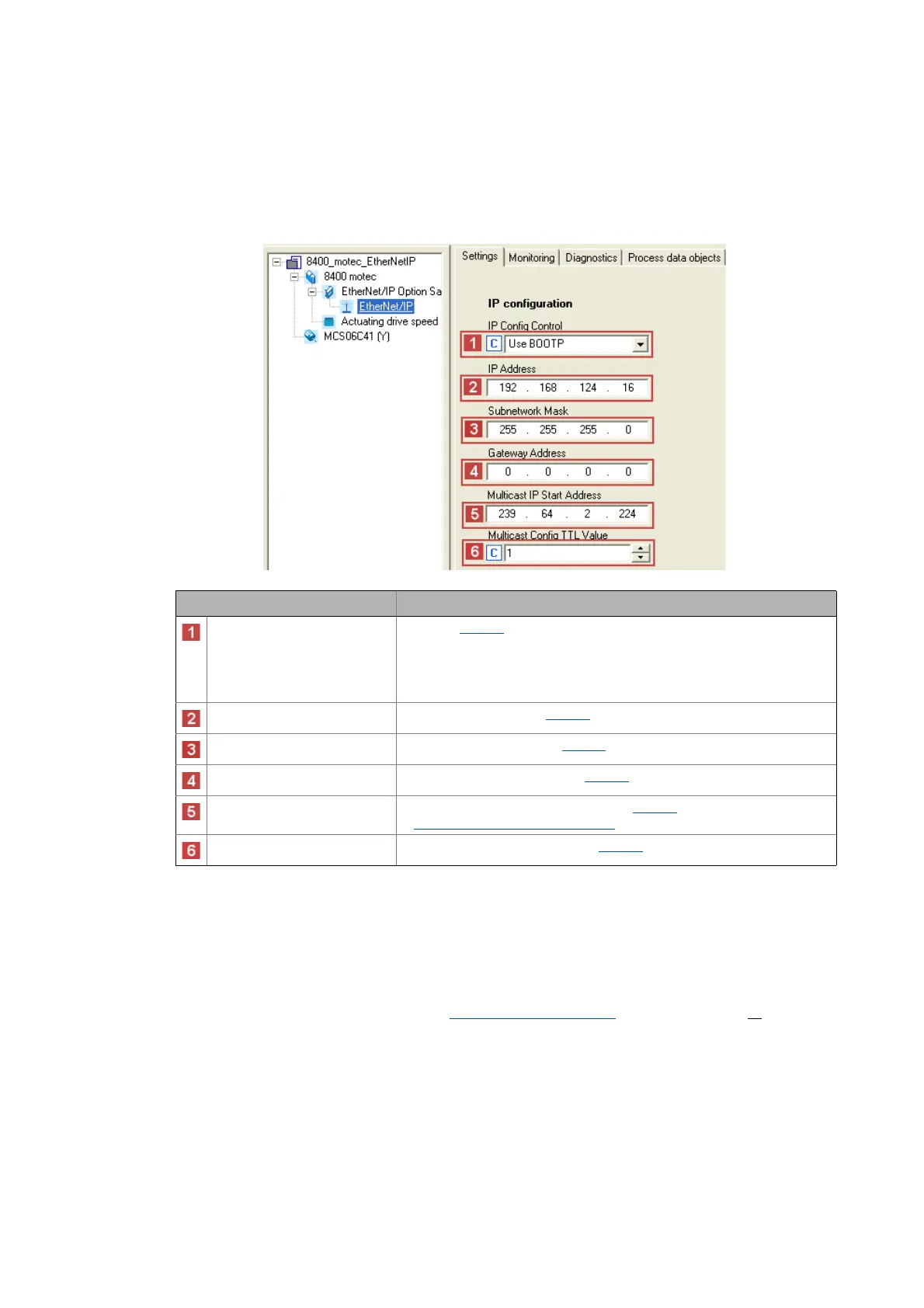

You can also set the IP parameters manually in the »Engineer« under the Settings tab. The values
will be transferred to the corresponding codes.
 How to activate changed settings in the »Engineer«:
1. Execute device command C00002 = "11: Save all parameter sets".
The current IP configuration is stored in the memory module of the inverter.
2. Carry out a "Type 0 reset" for the Identity Object (1 / 0x01)
( 111) of the node, or switch the
voltage supply of the Communication Unit off and on again.
Settings Description
IP Config Control Selection (C13005
) of how the IP configuration is to be made:
• 0: The IP configuration currently saved in the Communication Unit is
used.
• 1: The IP configuration is assigned by a BOOTP server using the BOOTP.
• 2: The IP configuration is assigned by a DHCP server using the DHCP.
IP Address Setting of the IP address (C13000
)
Subnet Mask Setting of the subnet mask (C13001
)
Gateway Address Setting of the gateway address (C13002
)
Multicast IP Start Address Setting of the Multicast IP start address (C13006
)
Setting the multicast configuration
( 37)
Multicast Config TTL Value Setting of the multicast TTL value (C13019
)
