Technical Information
131
G 1xxx/G 2xxx

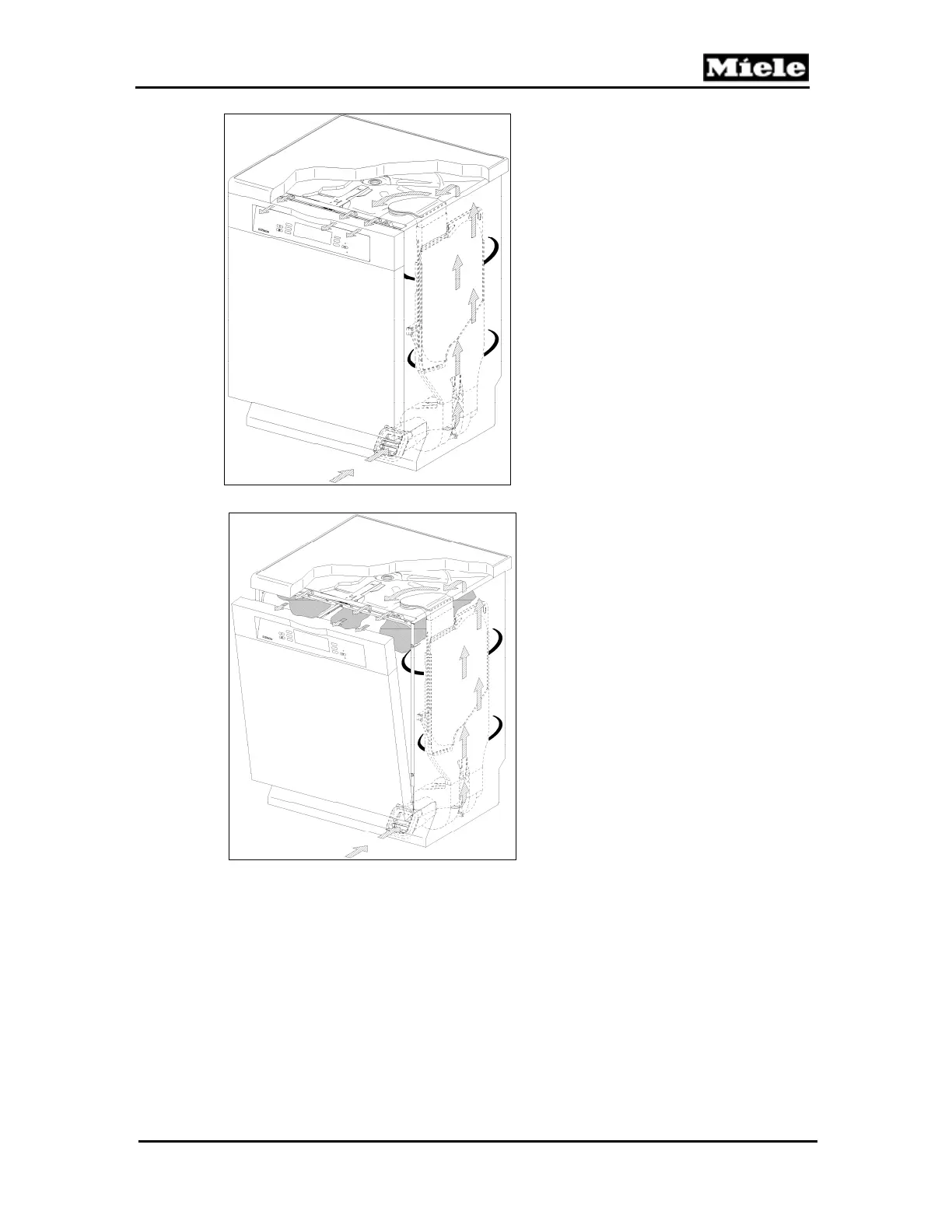

Figure 080-6: Drying Phase (Before Program End)
Figure 080-7: Drying Plus (After Program End)
After the Drying plus cycle has completed, the motorized door lock latch
moves from position 3 (drying, latch completely extended) back to position 2
(door open, latch positioned in the center). In this position, the adjustable
door lock latch is hidden by the countertop in front of it. The customer can
now open the door and unload the appliance.
For the user, the opening of the door is an additional indication that the
program has come to an end. While Drying plus is running, the door may be
