Technical Information
61
G 1xxx/G 2xxx

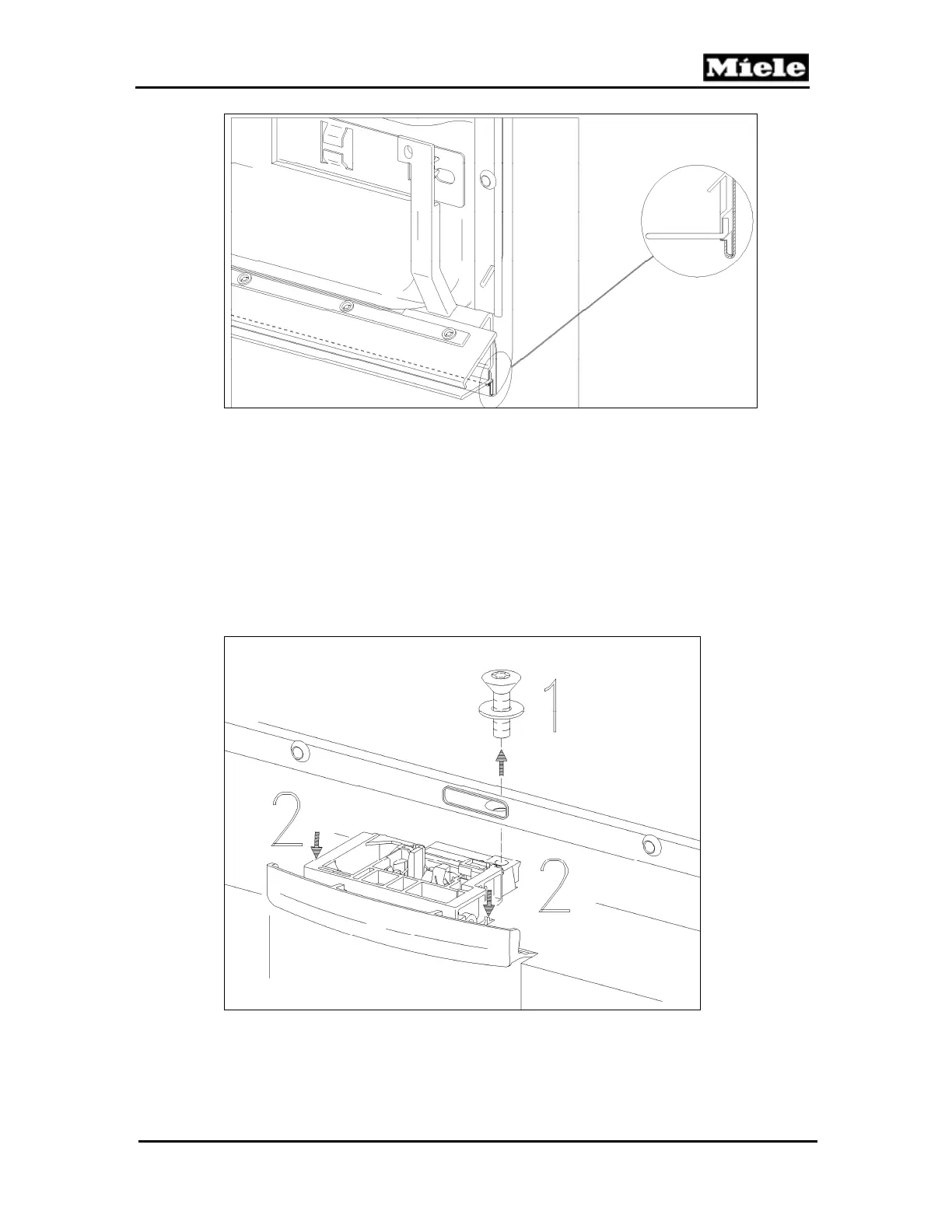

Figure 020-13: Re-Installing the Door Seal
4.5 Door Lock Removal (Touchtronic/Novotronic/Navitronic)
1. Remove the outer door panel (Section 030-4.3).
2. Remove the retaining screw (Figure 020-14, Item 1).
3. Press down the retaining lugs with a screwdriver (Figure 020-14, Item 2).
4. Pull the door lock slightly to the front.
5. Remove the side screws from the inner door panel.
6. Remove the retaining bracket.
7. Remove the door lock from the retaining bracket.
8. Disconnect all electrical connections to the door lock.
Figure 020-14: Door Lock Removal (Touchtronic/Novotronic/Navitronic)
