Technical Information

G 1xxx/G 2xxx

2.5 Fully Integrated Models, No Salt Container (Slimline)

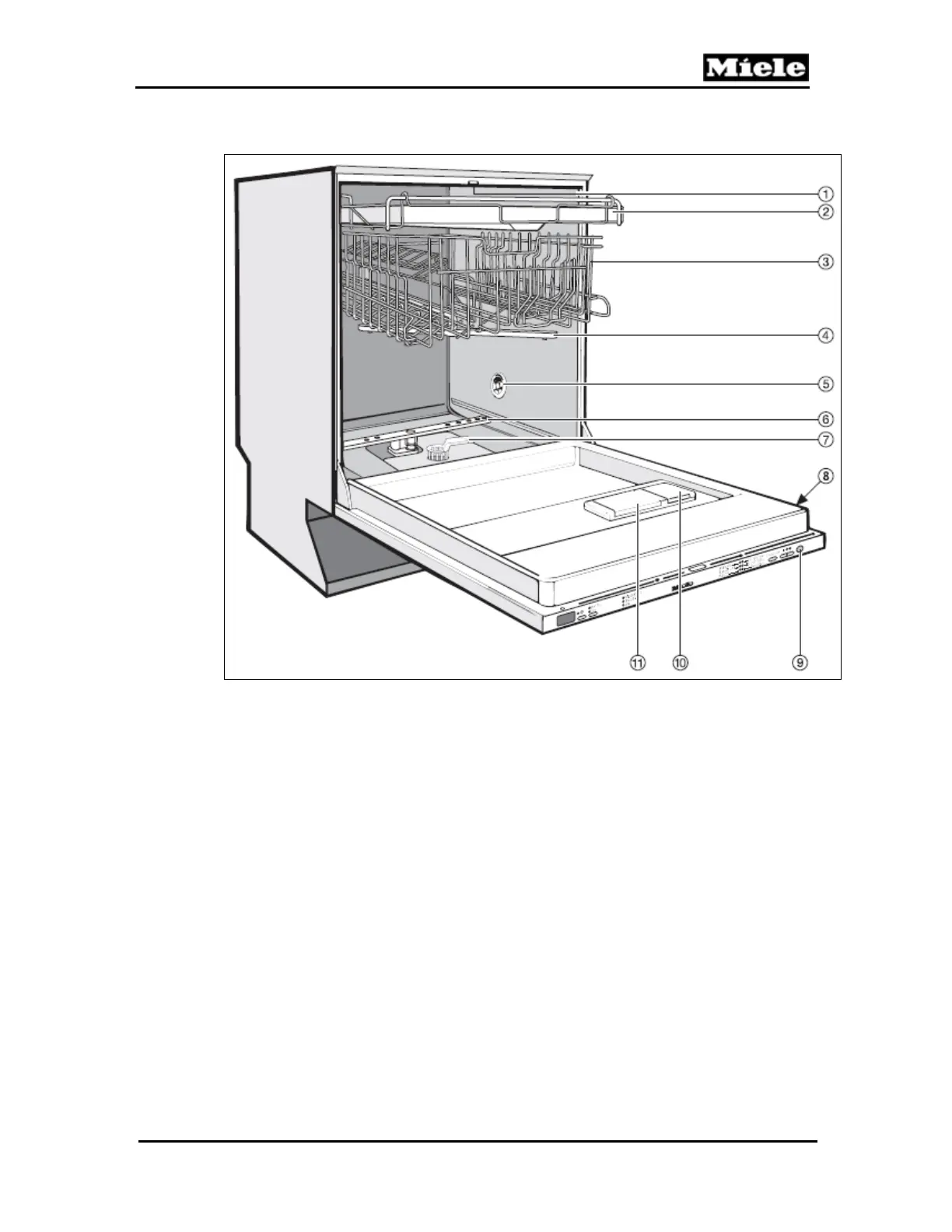

Figure D-19: Fully Integrated Model without Salt Container

1 Upper spray arm (not visible) 7 Filter combination

2 Cutlery tray 8 Data tag

3 Upper basket 9 Optical interface

4 Middle spray arm 10 Rinse aid reservoir

5 Air inlet for drying (model-dependent) 11 Dual-compartment detergent dispenser

6 Lower spray arm

Default Chapter2
