Technical Information

82

G 1xxx/G 2xxx

2.4.1 Water Diverter without EGS

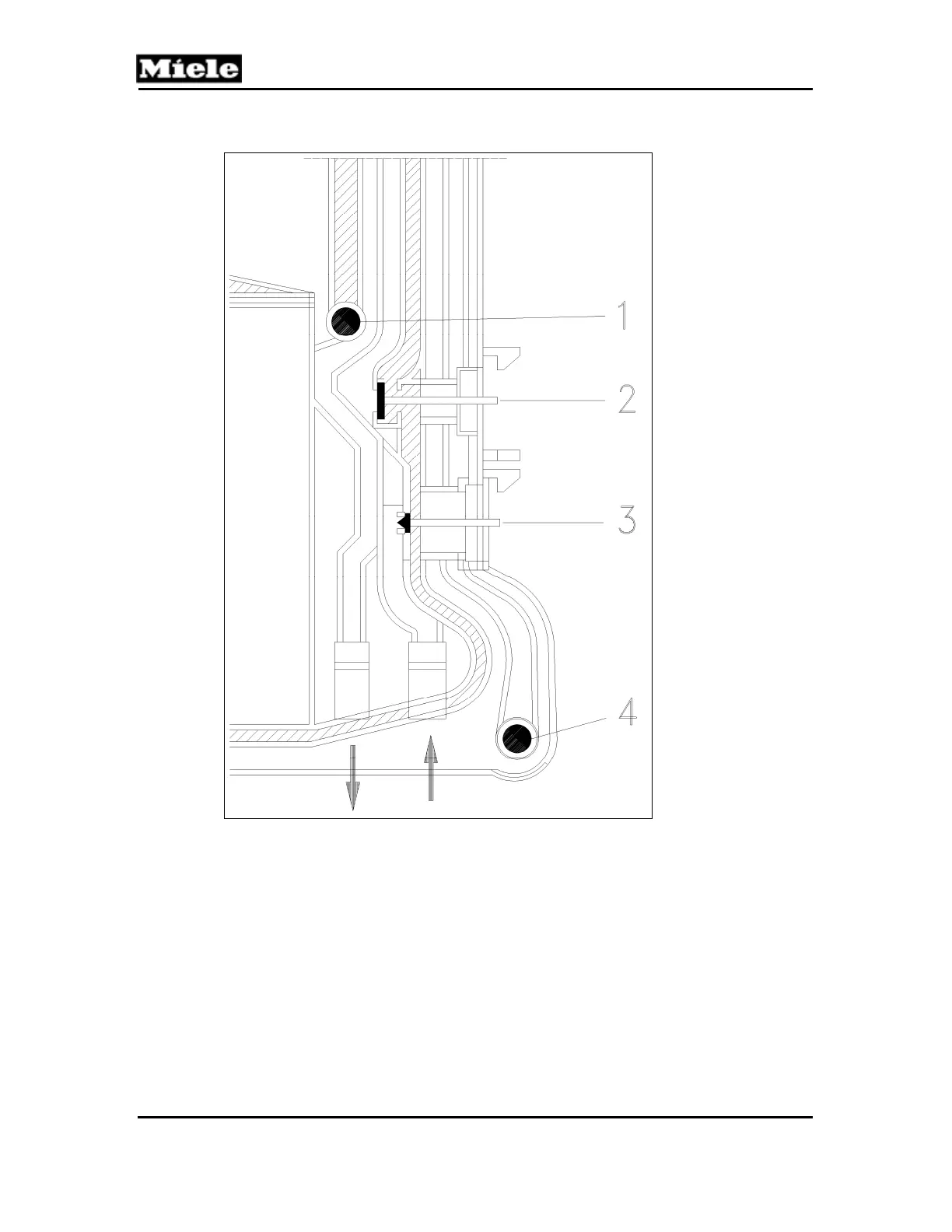

Figure 050-4: Water Diverter without EGS

1

Water outlet to sump

2

EGS valve not activated

3

Reactivation valve

4

Connection to inlet valve
