Technical Information

G 1xxx/G 2xxx

3.4 G 2630, G 2732 (Excella with Touchtronic)

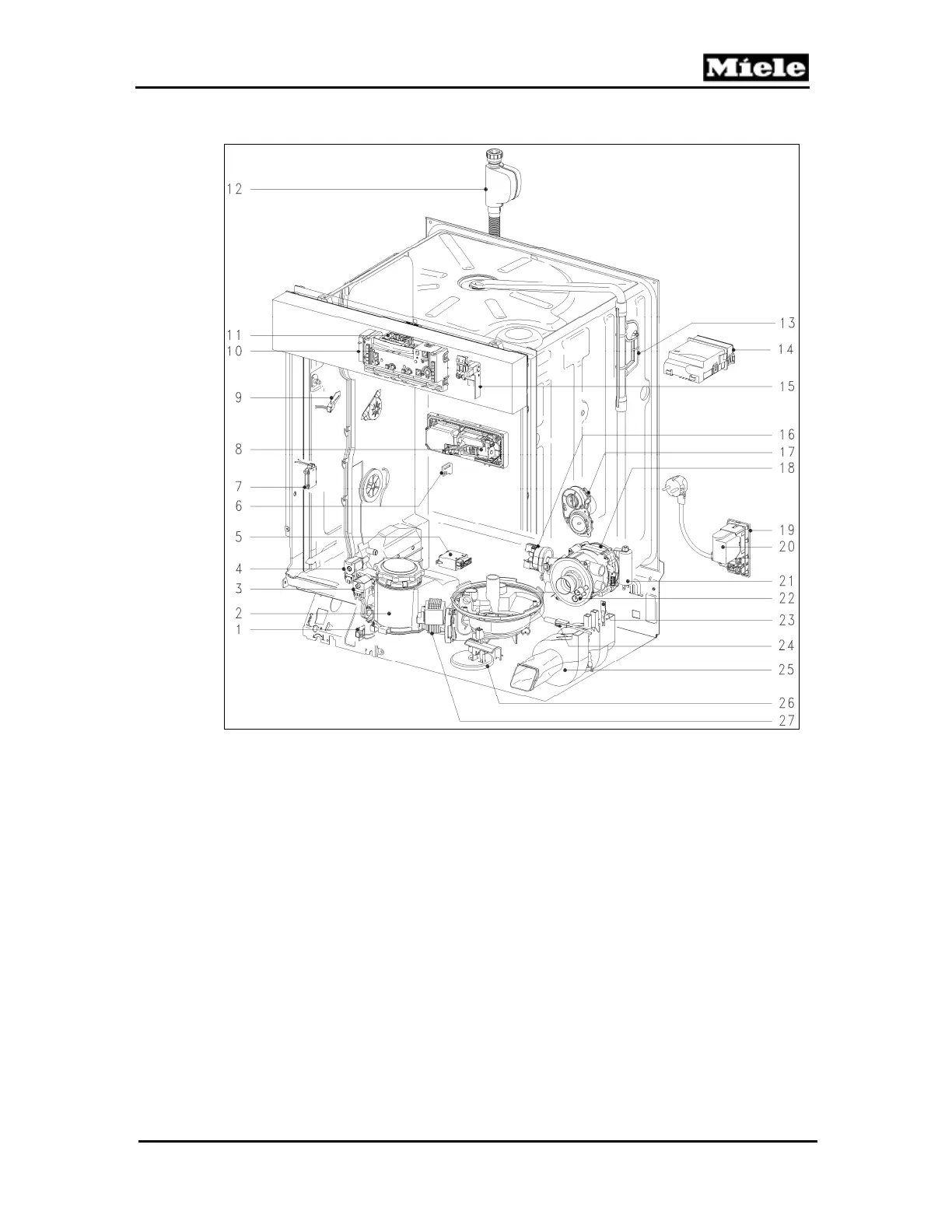

Figure D-23: G 2630, G 2732 Component Layout

Salt float switch, B8/2

Main switch, S2

Salt reservoir

Heater pressure switch, B1/13

Reactivation solenoid, Y38

Slide shutter, M24 and B3/12

Wash-water hardness solenoid, Y5

Circulation pump (MPEW or MPPW), M6

Heater relay, K1/1

Terminal block, X3/1

Rinse aid float switch, B8/1

Interference suppression, Z1 or Z2

Spray arm sensing

Circulation pump capacitor, C6

Combination dispenser solenoid, Y50

Heater, R1

Flow meter, B3/4

Speed sensor, B3/9

Electronic, 1N1

Temperature sensor (NTC), R30

Door contact switch, S24

Fan, M2

Water intake solenoid, Y2

Overflow float switch, B8/3

Turbidity sensor, B3/10

Drain pump, M8

RemoteVision, 3N1 (G 2732 only)

Default Chapter2
- Table of Contents2
Technical Information12
Warning and Safety Instructions12
- General Information12
- Touch Current Measurement12
- Risk of Injury Due to Sharp Edges and Protruding Parts13
- Uninstalling the Dishwasher13
- Service Work - Casing13
B Modification History13
C Technical Data14
- Data Sheets14
  - Inspira, Inspira II14
- Table C-1: US Data Sheet, Inspira/Inspira II Models14
  - Diamante, Diamante Plus15
- Table C-2: US Data Sheet, Diamante/Diamante Plus Models15
  - Optima, Optima II16
- Table C-3: US Data Sheet, Optima/Optima II Models16
  - Excella, Excella II17
- Table C-4: US Data Sheet, Excella/Excella II Models17
  - Laperla, Laperla II18
- Table C-5: US Data Sheet, Laperla/Laperla II Models18
  - Advanta19
- Table C-6: US Data Sheet, Advanta Models19
  - Door Springs20
    - Summary20
    - Standard Door Springs by Appliance Model20
- Table C-7: Door Springs Summary20
- Table C-8: Standard Door Springs by Model20
  - Door Springs Supplied as Spare Parts21
  - Electrical and Plumbing Connections21
    - Electrical Information21
- Table C-9: Door Springs Supplied as Spare Parts21
  - Hard-Wired Electrical Connection22
  - Plumbing Connections22
    - Intake Connection22
    - Drain Connection22
D Layout of Electrical Components23
- Control Panels23
- Appliance Overviews27
- Component Layouts32
G 1Xxx/G 2Xxx38
- Data Tag42
- Model Numbering42
- Figure D-30: Data Tag Location42
- Figure D-31: Data Tag Information42
- Figure D-32: Model Numbering42
Casing43
- Service44
Door48
- Function49
G 1Xxx/G 2Xxx52
- Fault Repair58
  - Door Can't be Closed58
  - Fault with Automatic Door Closing/Opening (Laperla II)58
- Service59
Front Panel64
- Service65
Inner Cabinet68
- Function69
- Fault Repair71
- Service72
  - Door Seal Replacement72
  - Figure 040-3: Seal Install Guide72
Technical Information73
- Basket Guide Removal73
- Figure 040-4: Basket Guide73
- Figure 040-5: Clip with Bolt73
- Toekick Removal74
- Steam Condenser Removal74
- Figure 040-6: Toekick Removal74
- Fan Removal75
- Connection Box Removal75
- Figure 040-7: Fan Removal75
- Figure 040-8: Connection Box76
Water Paths77
- Function78
- Fault Repair98
- Service100
G 1Xxx/G 2Xxx106
- Removing EGS Solenoid Y5106
- Removing Reactivation Valve Y38106
- Removing the Circulation Pump106
- Removing the Circulation Pump Housing Cap (with Ring Heater)107
- Figure 050-21: Screws and Clips Securing the Pump Housing Cap107
- Slide Shutter Removal (Excella/Laperla)108
- Drive Removal (Excella/Laperla)108
- Figure 050-22: Slide Shutter Assembly108
- Pump Impeller Removal109
- Pump Housing Removal109
- Figure 050-23: Drive Cam109
- Pump Capacitor Removal110
- Removing the Heater Pressure Switch110
- Speed Sensor Removal (MPEW Pumps Only)110
- Removing the Drain Pump110
- Removing the Sump111
- Figure 050-24: Removing the Drain Pump111
- Removing the NTC Temperature Sensor112
- Removing the Float112
- Removing the Float Switch112
- Dismantling the Filter Combination113
- Figure 050-25: Combination Filter113
- Filter Combination Assembly (New Microfine Filter and Handle)114
- Figure 050-26: Microfine Filter Installation114
Technical Information115
- Filter Combination Assembly (with Locking Piece)115
- Figure 050-27: Filter Combination Lock/Unlock Positions115
- Figure 050-28: Combination Filter Locking Clip (Unlocked)116
- Figure 050-29: Combination Filter Locking Clip (Locked)116
- Salt Container (in Sump) Removal117
- Filling the Salt Container in the Sump118
- Figure 050-30: Filling the Salt Container in the Sump118
- Salt Container in Door (SIT) Removal119
- Figure 050-31: SIT Screws and Plug119
- Brine Valve (Y60) Removal120
- Filling the Salt Container in the Door120
- Figure 050-32: Opening the Salt Container121
- Figure 050-33: Opening the Funnel121
- Water Level Check122
- Figure 050-34: Filling the Salt Container in the Door122
- Figure 050-35: Water Level Reference122
Electronic123
- Function124
- Fault Repair134
Technical Information138
- Service164
G 1Xxx/G 2Xxx173
- Service Mode208
Fascia Panel220
- Fault Repair221
  - On/Off Button Jams221
  - Display Steams up221
- Service222
Cutlery Tray226
- Fault Repair227
  - Water Droplets on the Cutlery Tray227
Technical Service Bulletins228
- Intermittent Buzzing/Vibration Noise from G 1000/2000 Dishwashers228
- G 2630 Electronic Replacement228
- Changing the Door Handle Style on a Dishwasher Delivered as 'SF' (Pre-Finished)229
- Re-Designed Cutlery Trays Are Now Available for G 2000 Series Dishwashers231231
- G 1000 and G 2000 Dishwashers Have an Updated Electronic for Even Quieter Operation of the Circulation Pump231
- Fascia Panel Replacement Instructions for the G 2830231
- Some F13 Faults in the G 2000 Dishwashers May be Caused by a Clogged Flow Restrictor232
- Winterizing Procedure for G 2Xxx Series Dishwashers232
- G 2000 Circulation Pumps Have a New Speed Sensor Configuration234
- G 2000 Dishwashers in Vacation Homes: F14, F69, or All Leds Blink235
- Circulation Pumps; MPEW Speed Sensors235
- G 2Xx2 Fault Code F79235
- Update; Replacing the Waterproof Hose in a Dishwasher236
Technical Information237
- F11 Drainage Fault; Non-Return Valve237
- G 2143; G 2472 Lower Spray Arms237
- Miele Policy on Dishwasher Detergent Requirements238
- Dishwasher Detergents and Phosphates239
