Technical Information

G 1xxx/G 2xxx

3.2 G 1202, G 2120, G 214x, G 2150 (Optima Slimline, Inspira,

Diamante with Touchtronic)

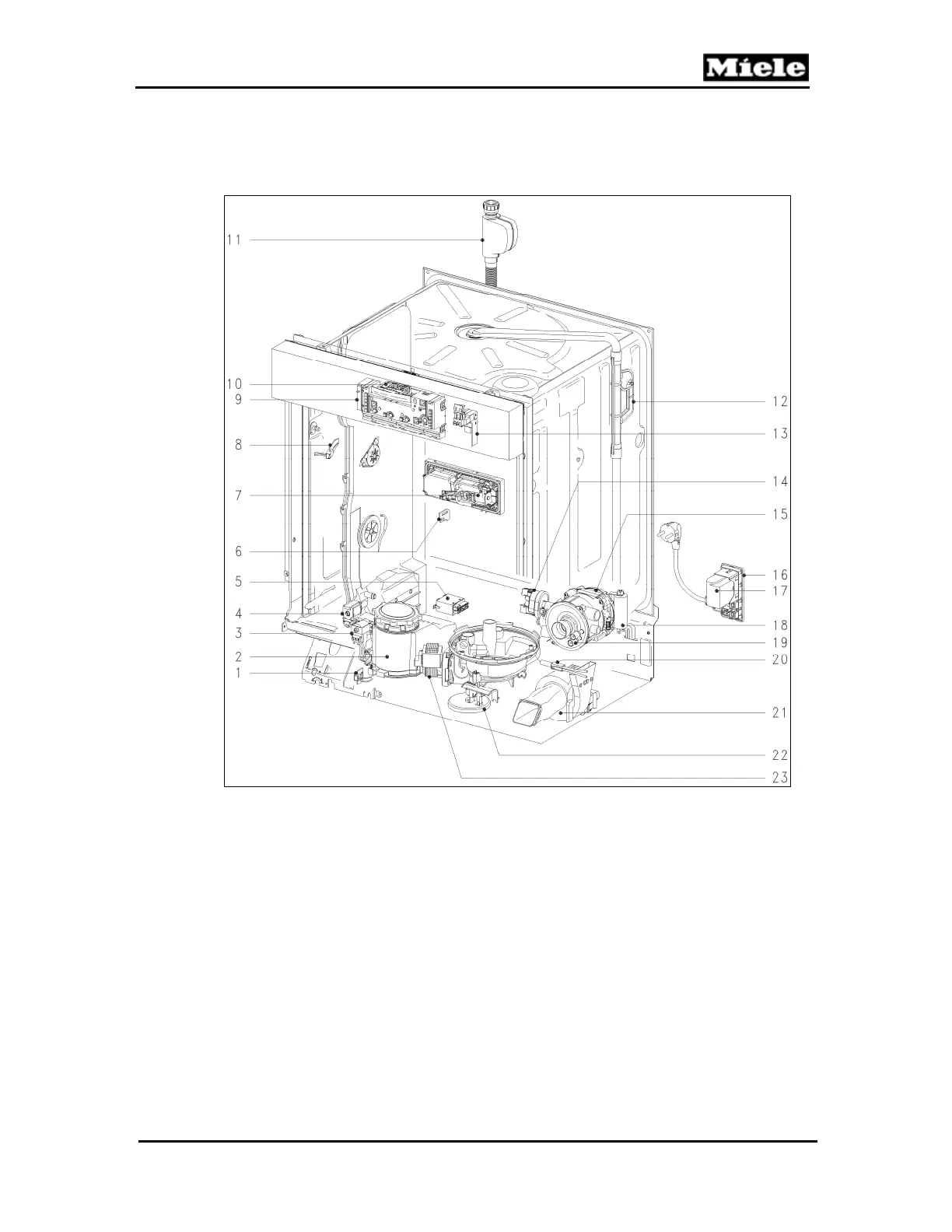

Figure D-21: G 1202, G 2120, G 214x, G 2150 Component Layout

Salt float switch, B8/2

Main switch, S2

Salt container

Heater pressure switch, B1/13

Reactivation solenoid, Y38

Circulation pump (MPEH), M6

Wash-water hardness solenoid, Y5

Terminal block, X3/1

Heater relay, K1/1

Interference suppression, Z1 or Z2

Rinse aid float switch, B8/1

Circulation pump capacitor, C6

Combination dispenser solenoid, Y50

Heater, R1

Flow rate sensor, B3/4

Temperature sensor (NTC), R30

Electronic, 1N1

Fan, M2

Door contact switch, S24

Overflow float switch, B8/3

Water intake solenoid, Y2

Drain pump, M8

Turbidity sensor, B3/10
