Technical Information

G 1xxx/G 2xxx

4.4 Lower Access Cover Plate Removal

1. Remove the cover plate retaining screws; see Figure 030-4, Item 2.

2. Remove the cover plate.

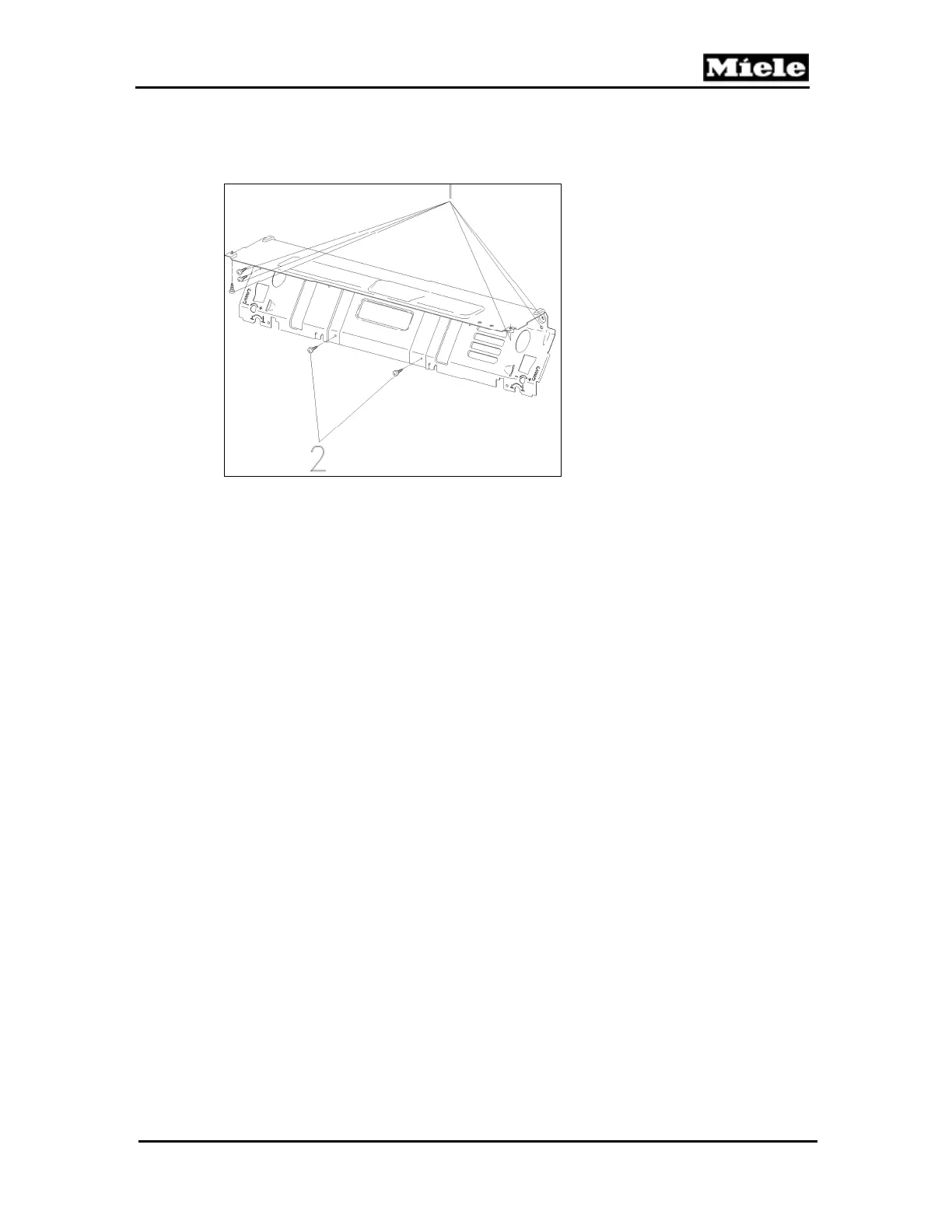

Figure 030-4: Lower Access Cover Plate Removal

4.5 Connecting Strip Removal

1. Remove the drip pan; see Section 010-4.2.

2. Remove the retaining screws; see Figure 030-4, Item 1.

3. Unscrew the machine feet slightly.

4. Remove the connecting strip to the front.
