5-11

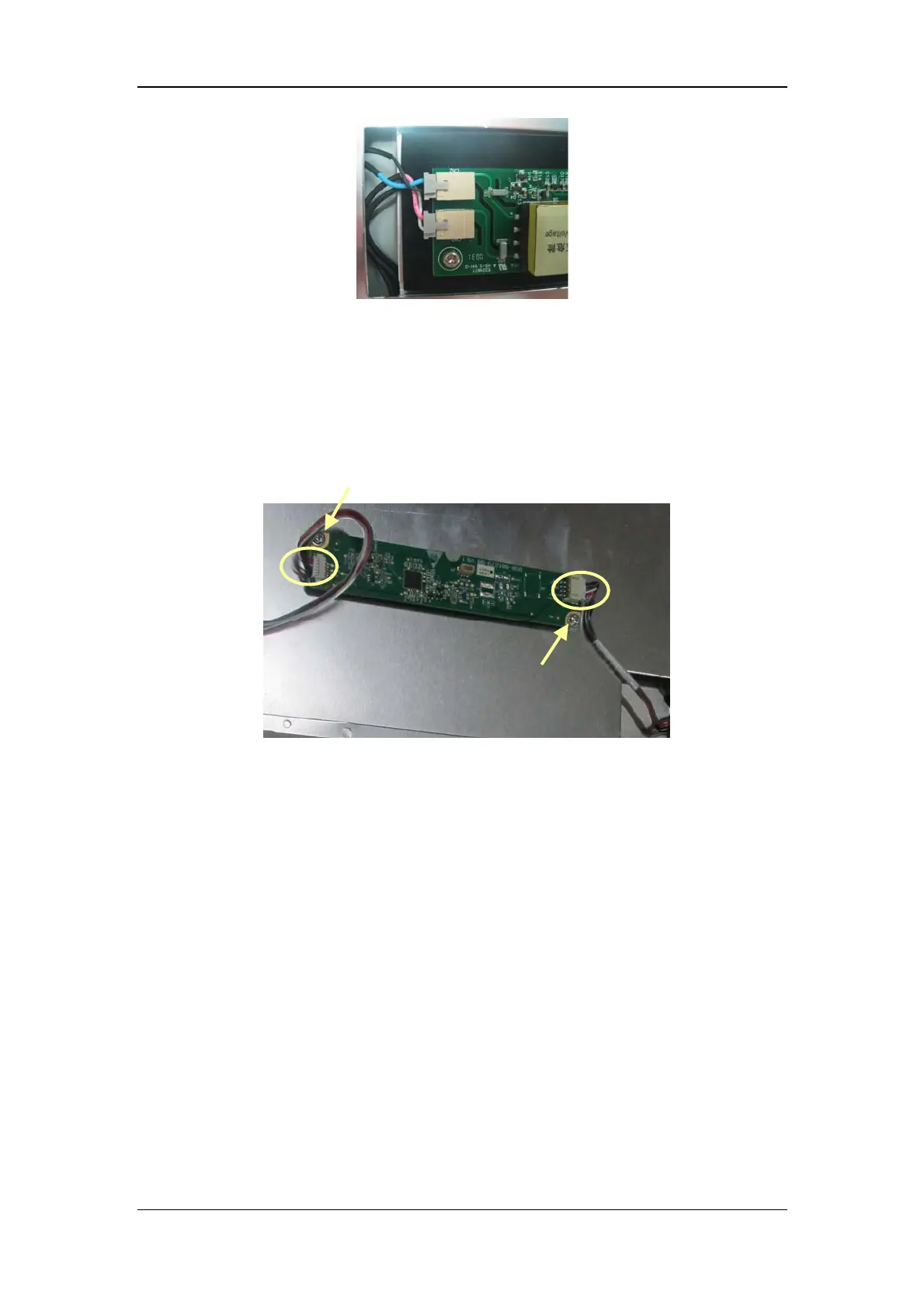

5.4.6 Removing the Backlight Board of T9
Disconnect the cable between the backlight board and the LCD screen. Unscrew the two M3
×6 screws to remove the backlight board.
