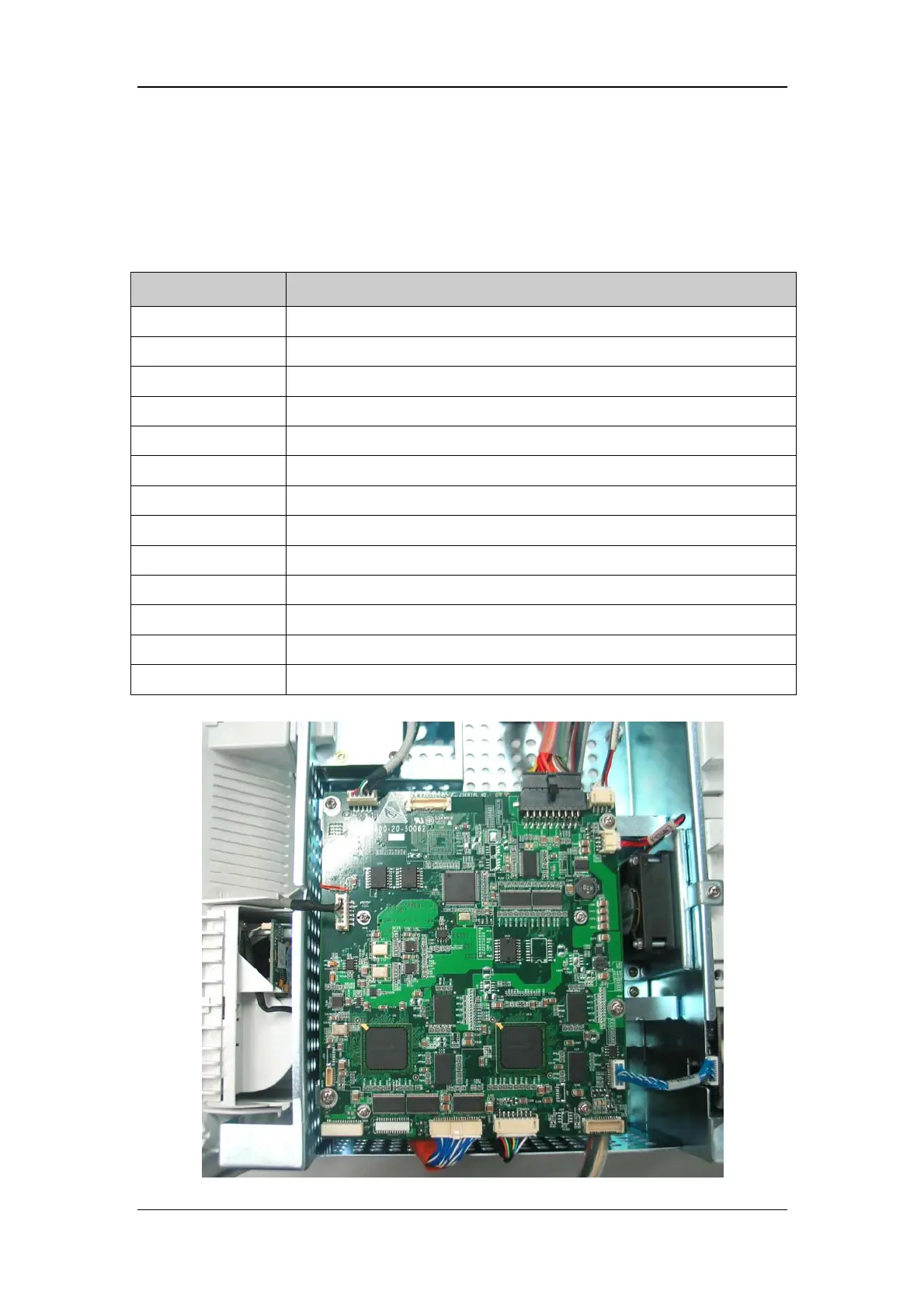

5.4.11 Removing the Main Board
1. Pull out all the connectors on the mother board. There are numbers beside the
connectors, which are listed below.
Number Connected to
J1 Power module
J2 Speaker
J3 Fan
J4 Integral module rack
J5 Button board
J6 DVI interface board
J7 LCD panel
J8 Recorder
J16 Wireless AP
J10 iView assembly
J11 USB interface board
J12 CF assembly
J22/J23 CPU board, which is connected to the mother board with a socket
