Mindray BeneView T8 Service Manual

6-17
6.6.2 Power module

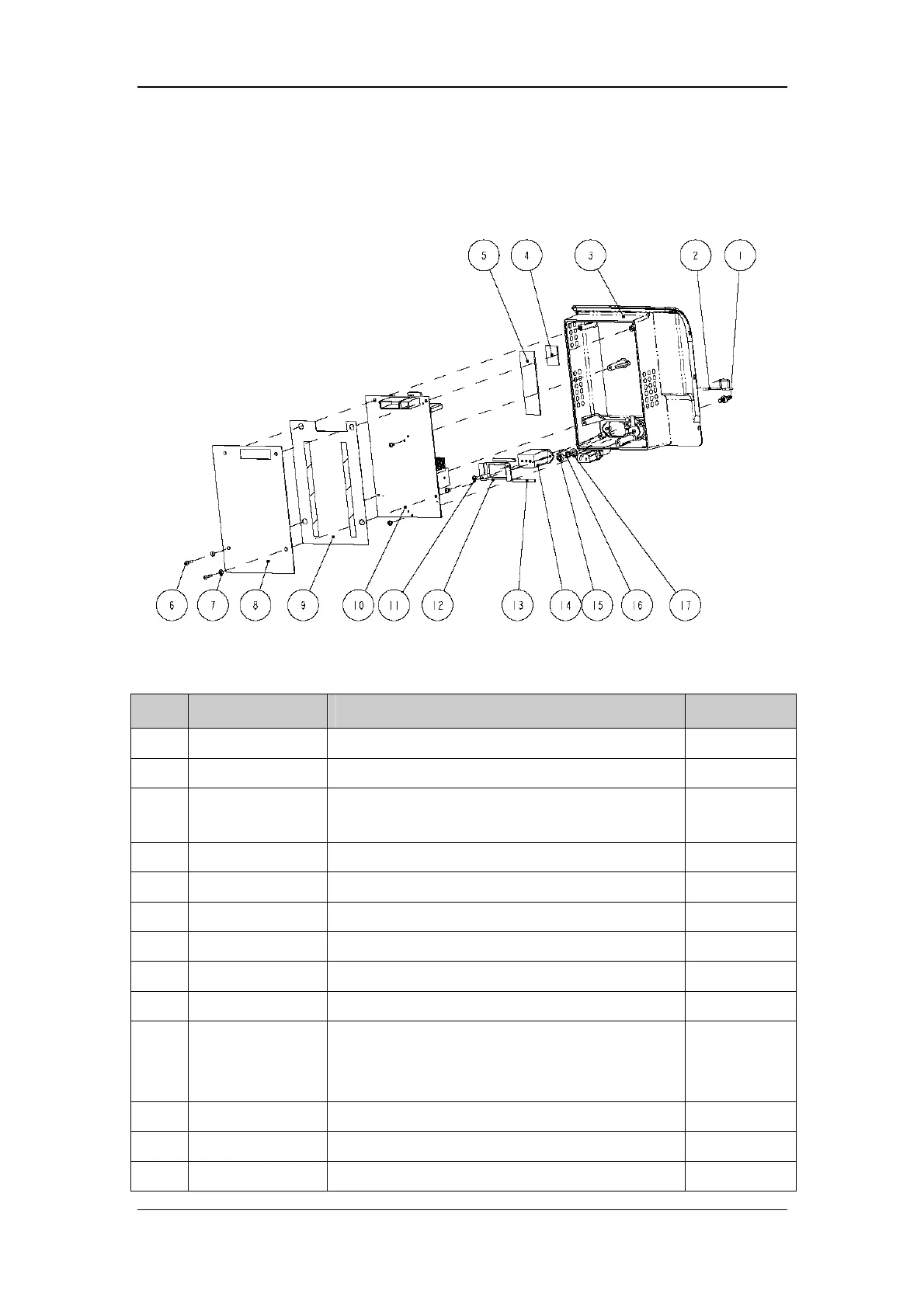

Exploded View
Parts List
SN P/N Description Qty
1 0509-20-00098 Grounding terminal 1
2 9211-20-87369 Pothook for power supply plugs 1
3
6800-20-50197-51
or 044-000447-00
Power module chamber (T8) 1
4 6800-20-50692 Backlight board insulating sheet 1
5 6800-20-50693 Backlight board insulating plate I, 100×27 mm 1
6 M04-004017--- Philips pan head screw GB9074.5-88 M3×12 2
7 M04-021024--- Large washer class A GB/T96.1-2002 3 2
8 6800-20-50219 Sheet metal 1
9 6800-20-50465 Power board insulating sheet 1
10
6800-30-50050 or
051-000193-00
6800 power board
6800 power board PCBA (No voltage decrease, 5V
CIS power board)
1
11 M04-004012--- Crosshead screw M3×6 4
12 6800-20-50218 power socket fixture 1
13 6800-20-50636 Waterproof strip for power socket 2
