Mindray BeneView T8 Service Manual

5-52
5.6.3 Disassembling the BeneLink Module
1. Remove the contact screws, the spanner, and the front cover by referring to steps 1 to 3
as described in 5.6.1Disassembling the ICG Module .

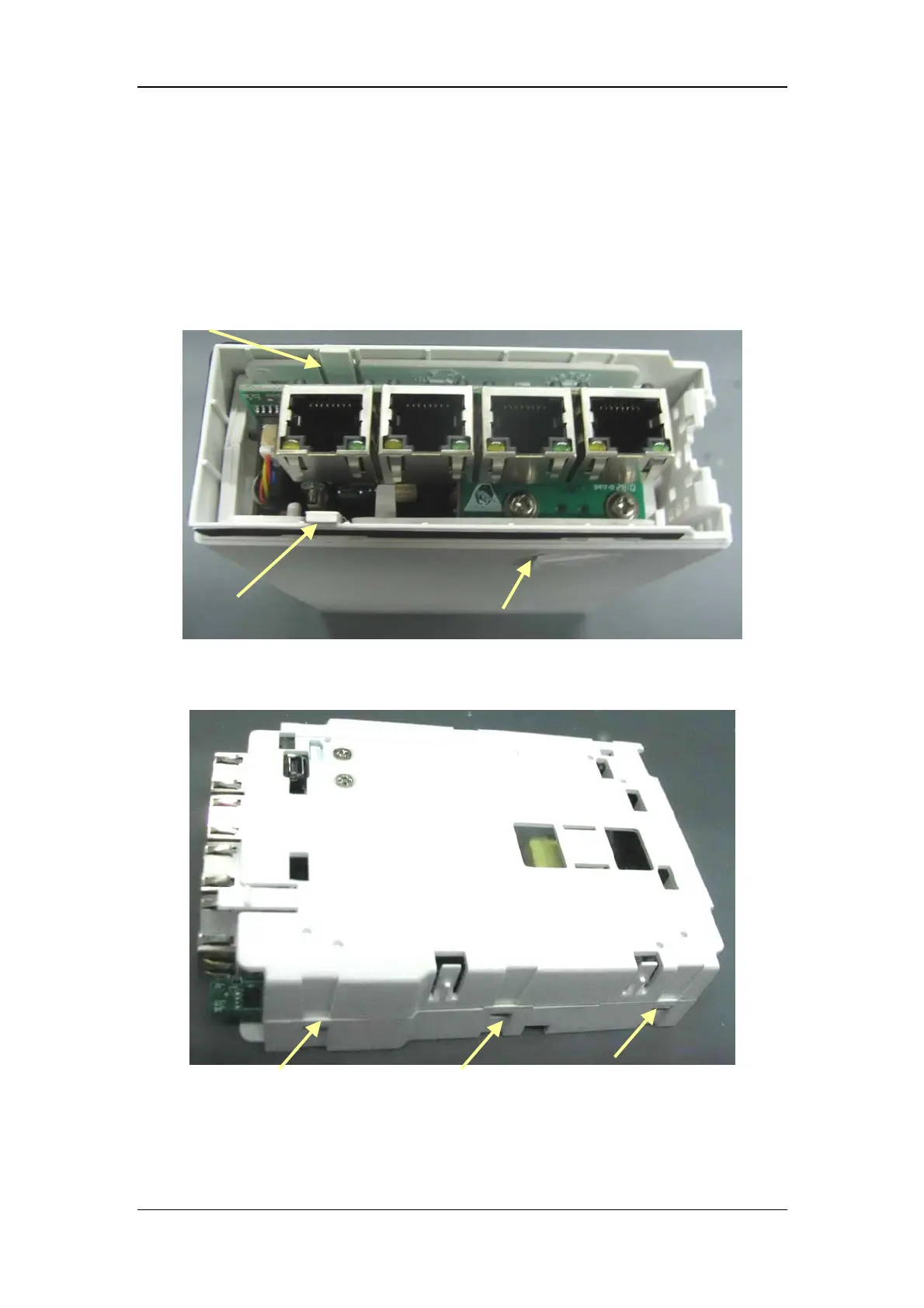

2. Take off the small cover board on one side of the rear cover. Then press the two clips
about 1mm and take off the housing.
3. Release the three snaps to separate the two halves of the module side cover.
