Mindray BeneView T8 Service Manual

5-28
NOTE
z Because the power supply board may be adhered to the insulator, be careful not to
damage the parts, connector and cables when prizing it.
5.4.17 Removing the Integral Module Rack
The following disassembling procedure takes the 5-slot module rack as an example. You can
disassemble other types of module rack by referring to this procedure.
1. Disconnect the cable that connects the integral module rack and the mother board.
Remove the two bolts and unscrew the M3×6 screw.

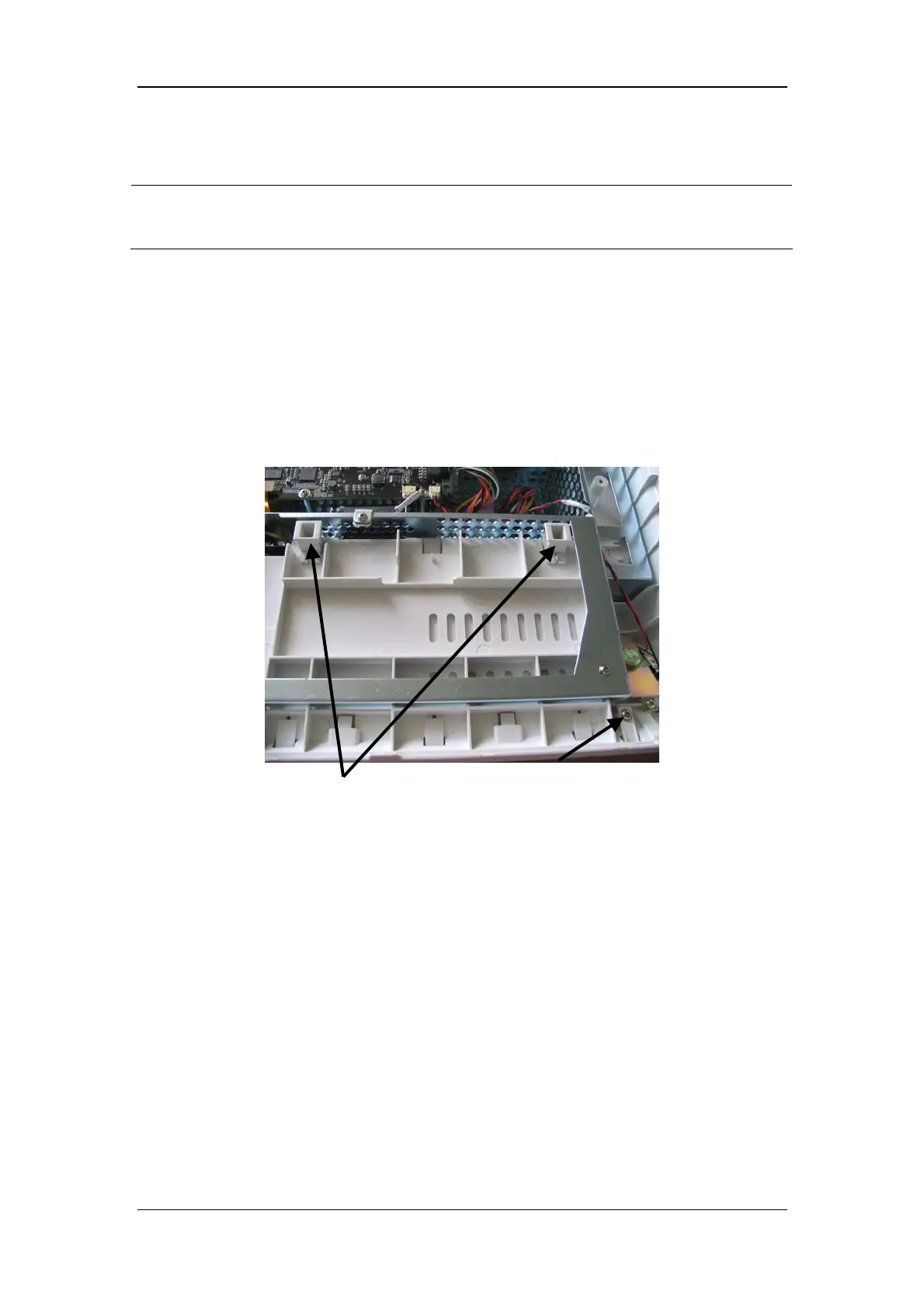

2. Pry the snaps out about 1mm away with a small flat-bladed screwdriver. Then insert the
small flat-bladed screwdriver into the position marked in the picture and pry it out about
1mm so that the module rack becomes disengaged from the back cover.
Bolts
