5-14

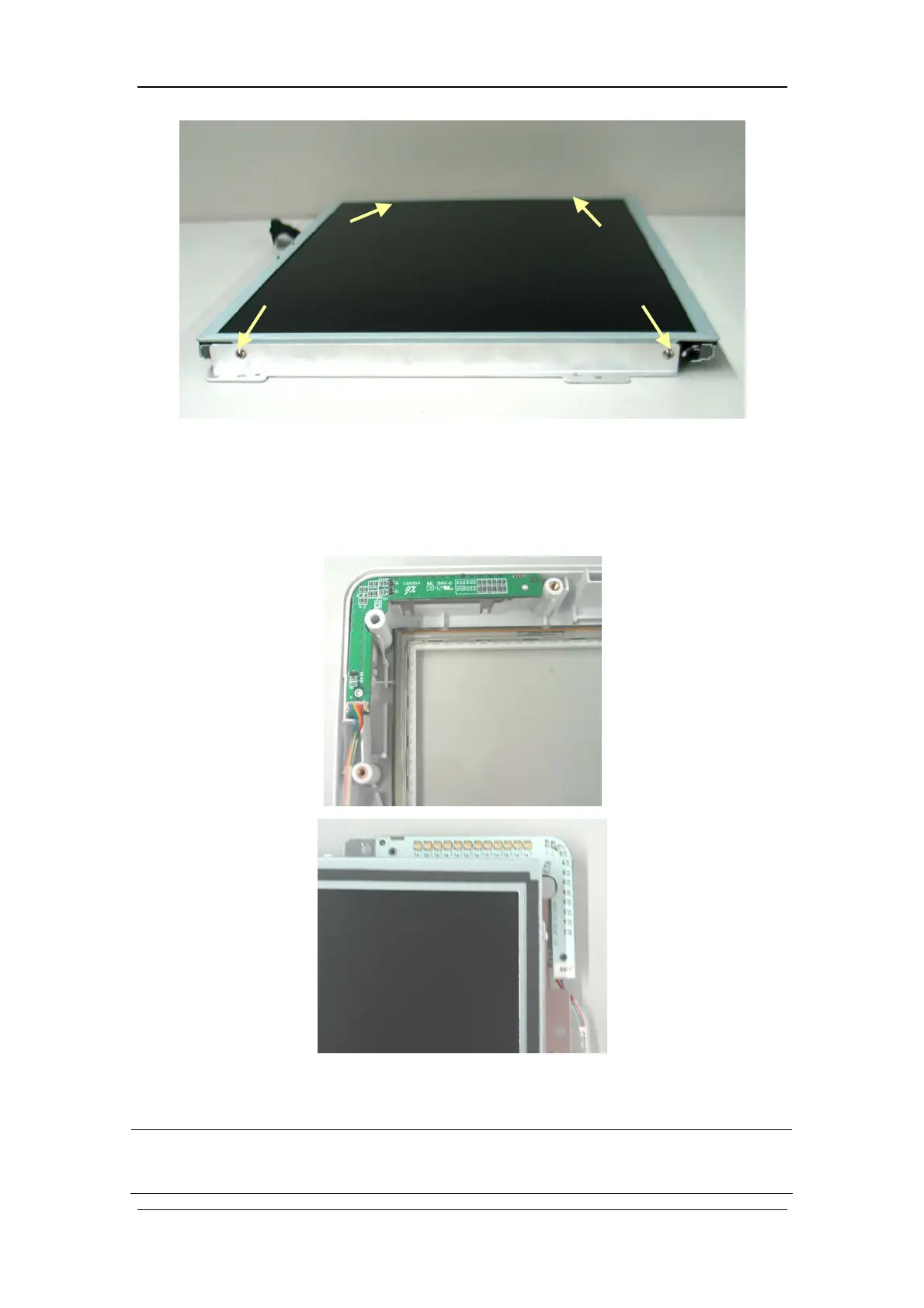

5.4.8 Removing the Alarm Lamp Board
After removing the LCD panel,
disconnect the cable that connects the alarm
la
mp board and
the button
board, and then rem
ove the alarm lam
p board on which there is
no screw
.
NOTE
z
Exercise care when removing the al
arm la
mp board because it may be adhered to
the LCD assembly (as shown in the above figure).
