9-20 Structure and Assembly/Disassembly
9.3.12 DVD
The disassembly tool: cross-headed screwdriver (M3, M4), diagonal cutting pliers.

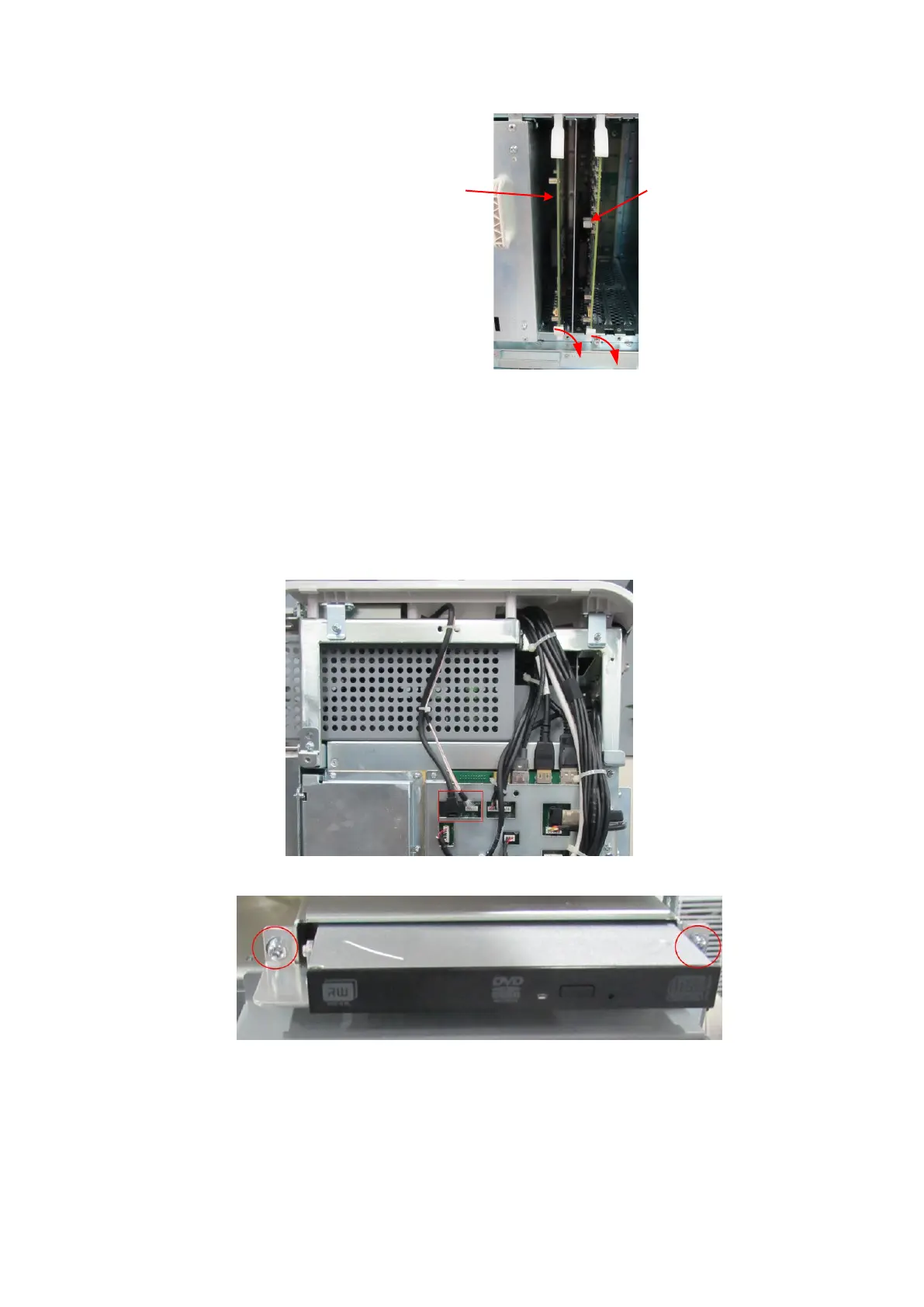

1. Follow step 1 to step 3 in Chapter 9.3.2. Remove the left/right side panels and the front cover.
2. Unplug the power supply cable connecting hard disk assembly to the mother board and the plug
of SATA signal cable.
3. Unscrew two M4 X 8 screws on the device to remove DVD assembly.
4. Unscrew two M3 X 6 screws on the back of DVD assembly to remove DVD shield board.
