4-2 Product Principle

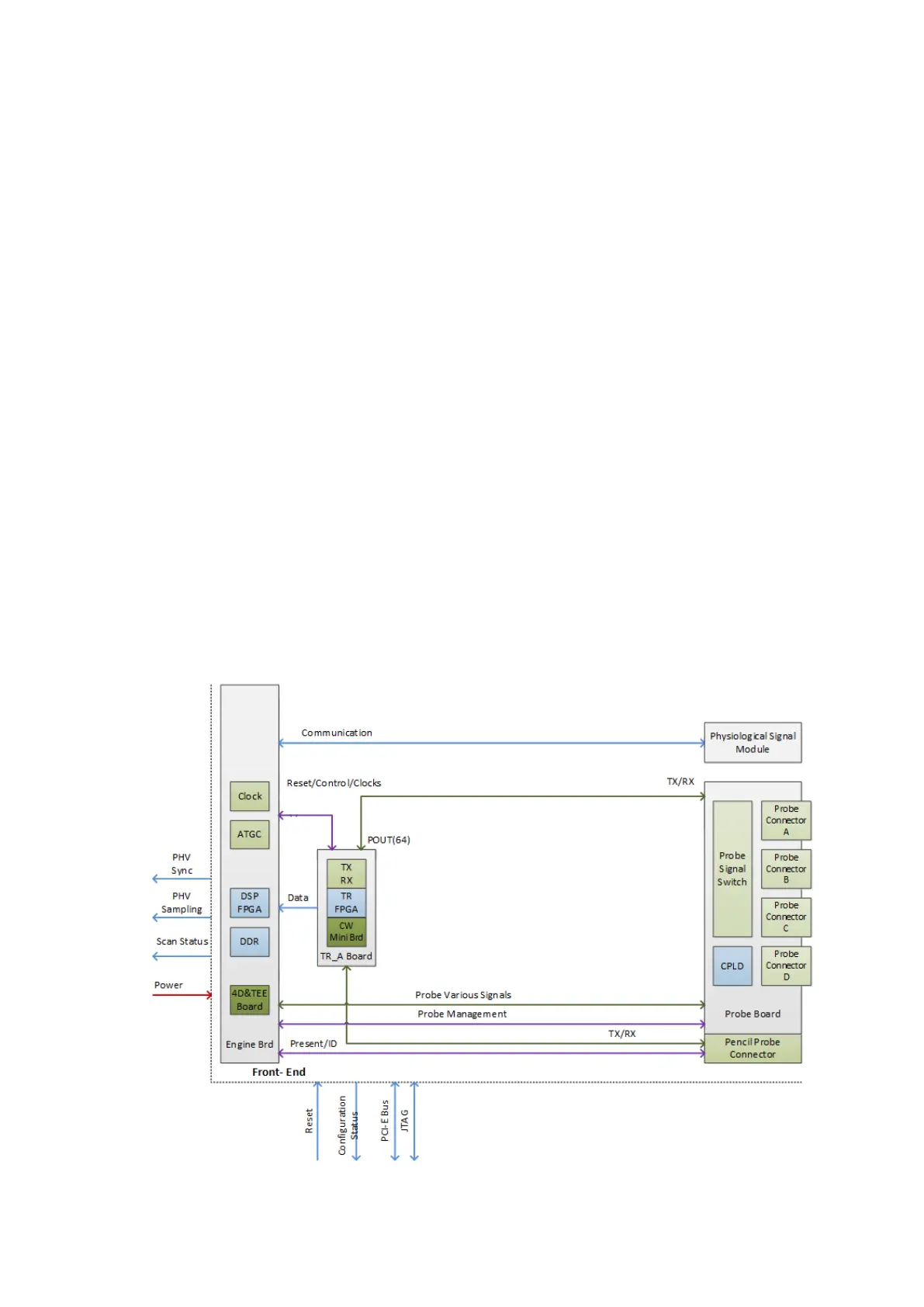

 Control interface, the clock, Rate, sub-module information management (in the place,
board ID) are all based on the engine board, which distributes to other sub-modules.
 The management functions of the probe decouple the transmitting/receiving channel, and
communicate with the engine board.
 As the independent sub-module, 4D driving function and physiological signals are
subordinate to the engine board.
 As an option, CW receiving function can be realized through an independent single board
and is subordinate to TRA board signal.
 Back-end unit: more functions are achieved on back-end unit. It basically resembles with PC. It
is equipped with main functions of the main unit, calculation capacity of image post-process,
operator-system interface to human-computer interaction, etc. PC module takes charge of
back-end unit. The elements are shown above.
 Power supply unit: it supplies the power to the front-end unit, back-end unit and peripherals.
Other elements are shown above.
 PHV board
 DC-DC board
 Battery * 2
 Battery connecting board
 24V to 12V Power Conversion board
 AC-DC Module
 AC connecting board
4.2 Ultrasound Front-end Unit
