3-8 System Installation
Uninstalling

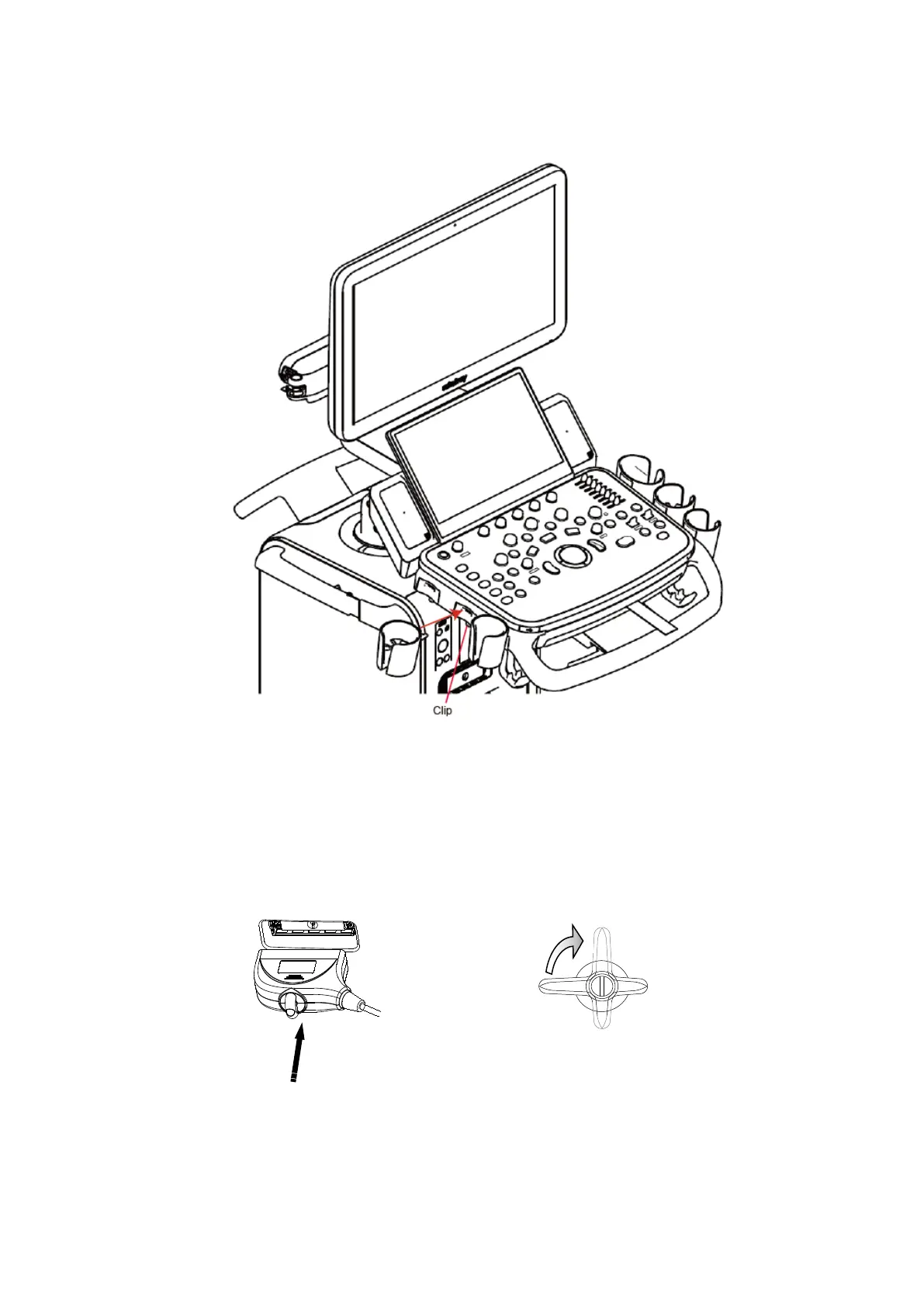

Press the clip in the direction of the arrow to get out the holder.
3.3.5 Connecting the Transducer
Four sockets (A, B, C, D) are configured on the system; every socket can be connected with all
types of supported transducers.
1. Keep the cable end of the transducer to the right side of the system, and insert the connector
into the socket of the system, and then press in fully. (Shown as the left figure)
2. Turn the lock handle 90° clockwise to lock it securely. (Shown as the right figure)
Lock
To Next Page
