Mitsubishi Heavy Industries ESA30E-25 User Manual

-

-
'15 • HM-T-246
Master-slave
communication wire
Hot water cylinder 󰴤
Water pipe
(Water supply,
hot water outlet)
Cylinder
temperature
Sensor wire
Water level
sensor wire
Water heater
(Master unit)
Water heater
(Slave unit 1)
Water heater
(Master unit)
Water heater
(Slave unit 1)
Water heater
(Master unit)
Water heater
(Slave unit 1)
Water heater
(Slave unit 2)
Water heater
(Slave unit 3)
Water pipe
(Water supply,
hot water outlet)
* XY is not connected to the slave unit.
Water pipe
(Water supply,
hot water outlet)
Water pipe
(Water supply,
hot water outlet)
SW1, SW2: 00
SW4-7: OFF
SW4-8: OFF
AddressNo.00
SW1, SW2: 00
SW4-7: ON
SW4-8: OFF
AddressNo.01
SW1, SW2: 10
SW4-7: OFF
SW4-8: OFF
AddressNo.10
SW1, SW2: 10
SW4-7: ON
SW4-8: OFF
AddressNo.11
SW1, SW2: 10
SW4-7: OFF
SW4-8: OFF
AddressNo.20
SW1, SW2: 20
SW4-7: ON
SW4-8: OFF
AddressNo.21
SW1, SW2: 00
SW4-7: OFF
SW4-8: ON
AddressNo.02
SW1, SW2: 00
SW4-7: ON
SW4-8: ON
AddressNo.03
Touch panel type
Hot water supply remote control
Hot water cylinder 󰴥
Hot water cylinder 󰴦
Cylinder
temperature
Sensor wire
Water level
sensor wire
Cylinder
temperature
Sensor wire
Water level
sensor wire
Water pipe
(Water supply,
hot water outlet)
Water pipe
(Water supply,
hot water outlet)
Water pipe
(Water supply,
hot water outlet)
Water pipe
(Water supply,
hot water outlet)
A B
X Y
X
Y
X Y
A B
A B
A B
A B
A B
A B
A B
 Up to 16 master units can be set
(connected) at the maximum.
 Total number of water heaters
is up to 16 units.
Max. master-slave
setting is 4 units.

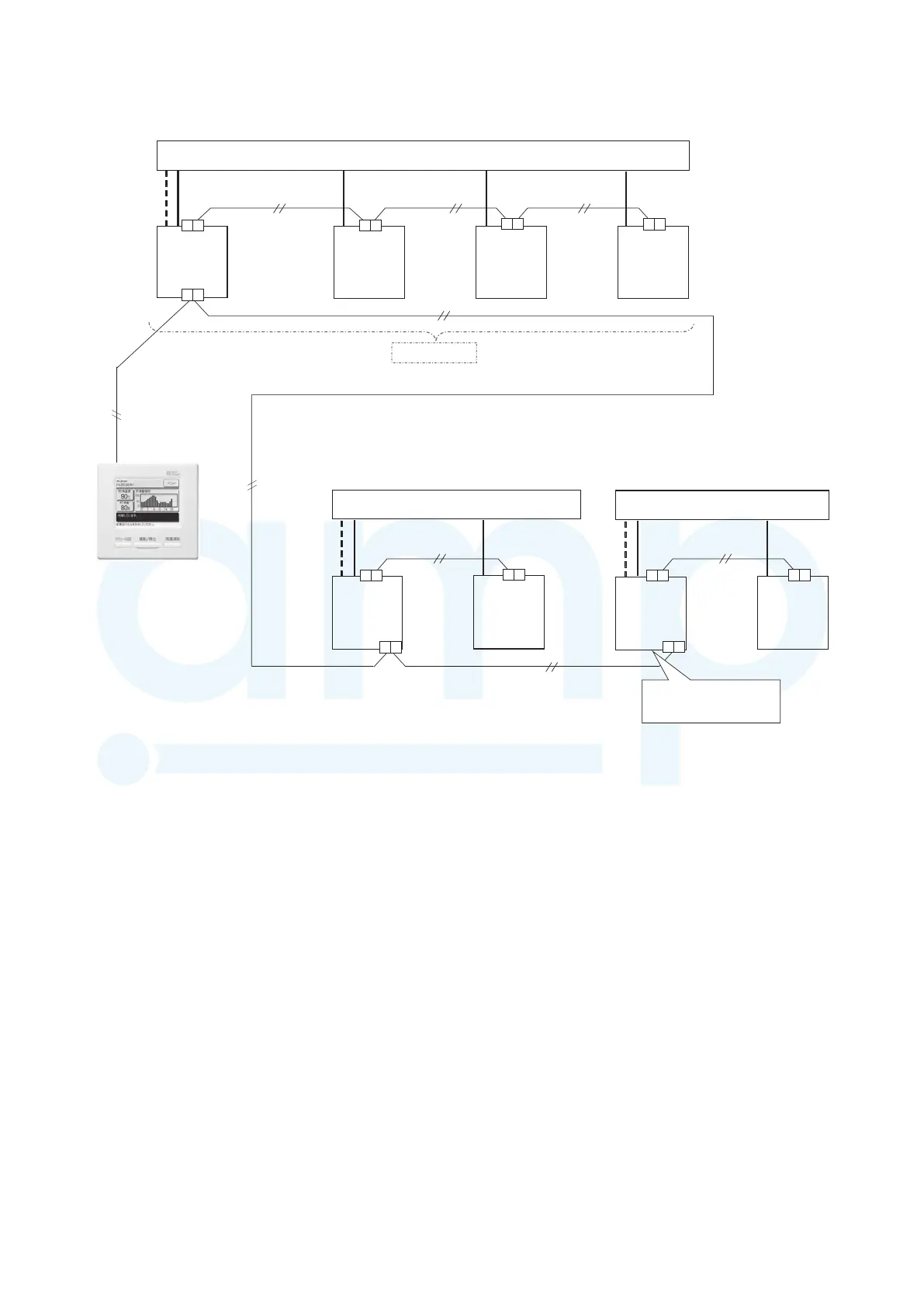

Example of address setting for multiple unit connection

