bolt in the rear.
Bind up wires and cables in order not to get in
the way of brazing work and replacing work of
compressor.

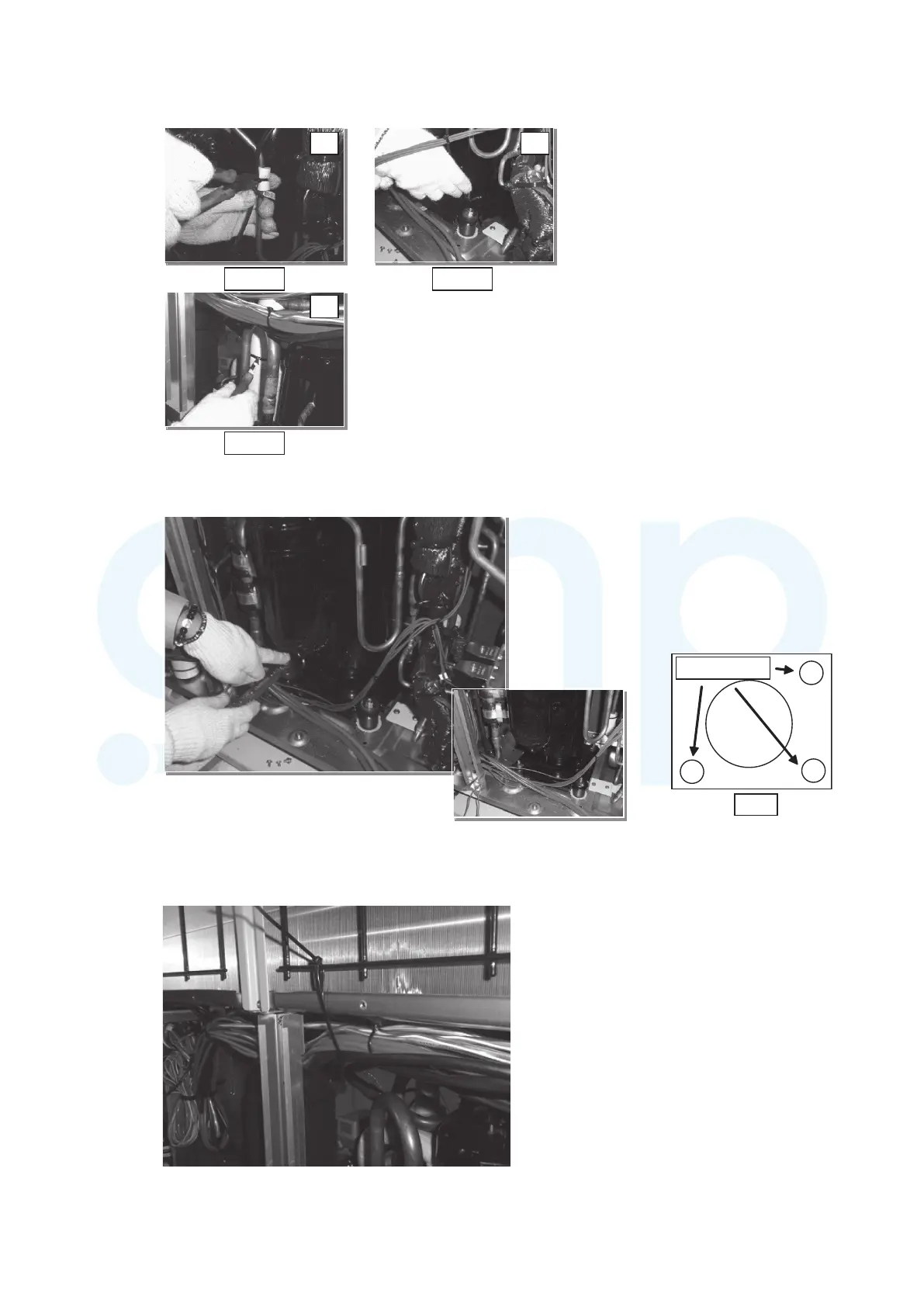

7) Bind up wires and cables for compressor
6) Loosen 3 nuts of compressor mounting bolts
5) Remove temperature sensors
Remove 3 temperature sensors after
removing insulations
1. Tho-IN J1 (Injection temperature sensor)
2. Tho-D1 (Discharge temperature sensor)
3. Tho-C1 (Under-dome temperature sensor)
Front
Bolt positions
