'15 • HM-T-246

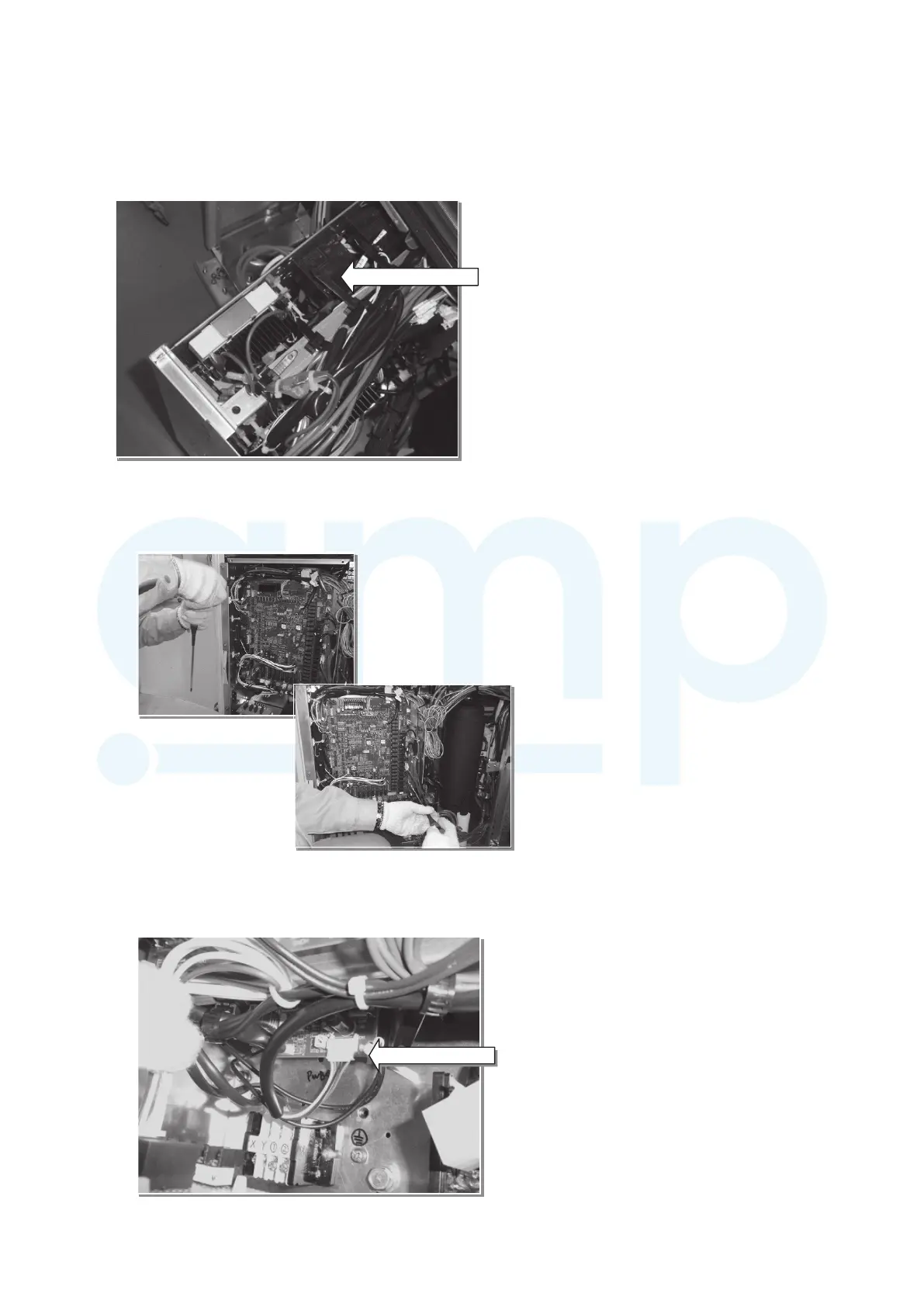

(3) Replacement procedure of power PCB and water pump PCB
The second layer
(a) Replacement work of power PCB (on the second layer)
②
Disconnect the wire going to the water pump PCB
①
Loosen 4 screws

Disconnect CN2
Disconnect CN 2 connector on the water pump P CB.
