Snap-on Mobile Payment Module with Chip and PIN
The DCR7X00-200R Snap-on Mobile Payment Module with Chip and PIN smart card reader snaps onto the
bottom of the MC75A mobile computer to allow easy data capture with magnetic stripe cards, EMV compliant Chip
and PIN cards and personal identification number (PIN) entry using a numeric keypad. This guide describes how to
install and use the module.
Installation
1. Align the module with the bottom of the MC75A and push up until the locking tabs snap into place.

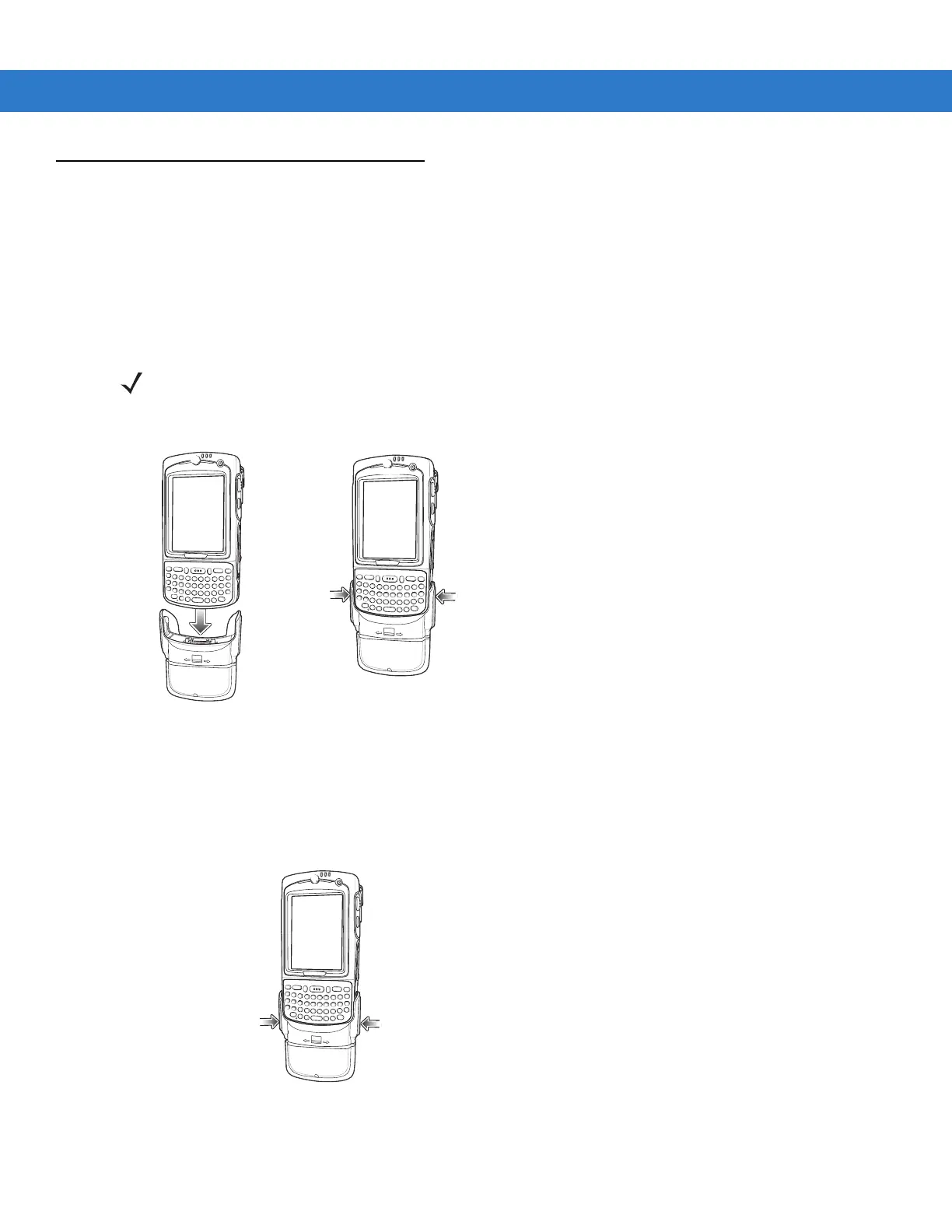

Figure 7-20
Attach Module to MC75A
2. Pull on the module to ensure it is securely connected to the MC75A.
Removal
To remove the module from the MC75A, push in the bottom of the two locking tabs and pull the module from the
MC75A.
Figure 7-21
Press Latches In to Lock
NOTE The module only functions when attached to the MC70/MC75.
