ＮＩＳＳＥＩ ＣＯＲＰＯＲＡＴＩＯＮ E6581815
A-3
1
1.3 Names and functions

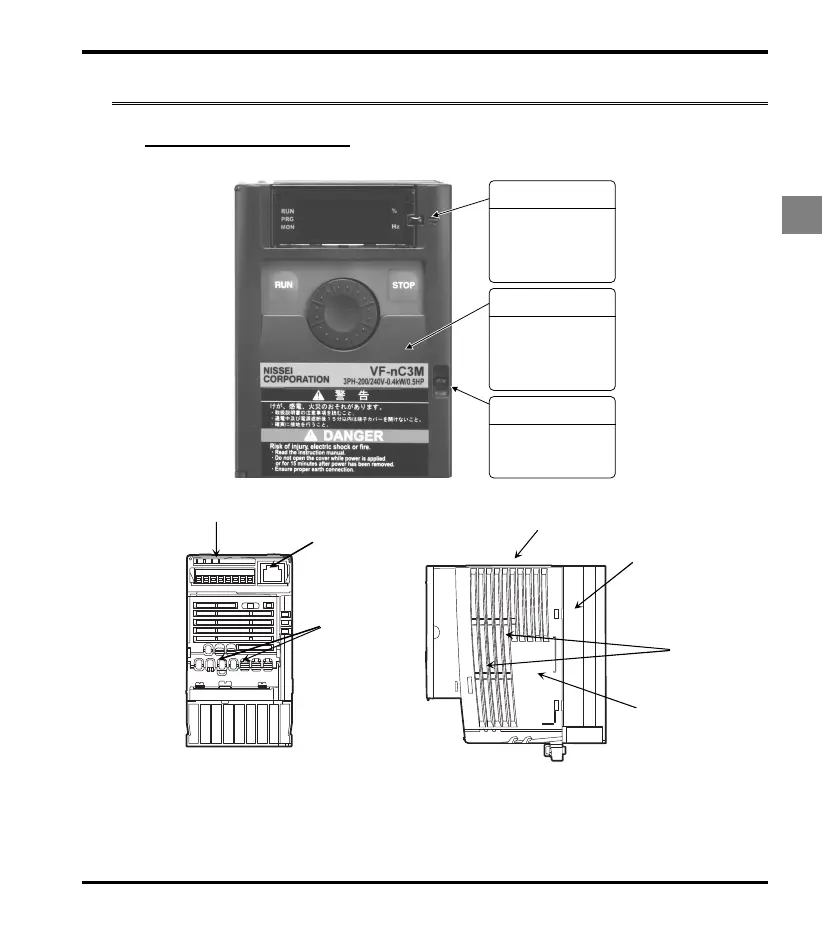

1.3.1 Outside view
With cover closed
Charge lamp
Indicates there is a high
voltage still in the inverter.
Do not open the terminal
block cover when this lamp
is lit because it is
dangerous.
Cover
This is the body or terminal
block cover.
Always close this cover
before operation to avoid
accidentally touching the
terminal block.
Door lock hole
You can lock the door by
shutting it an passing a wire
key through this hole.
Note 1) Remove the seal as shown on the next page when installing the inverter side by side with other inverters
where the ambient temperature will rise above 40°C.
Note 2) Some models are wrapped in plastic.
Hole for control wire
RS485 connector
Hole for main
circuit wiring
Upper caution plate (sticker) (Note 1)
Name plate
Ventilation
Cooling fin (Note 2)
[Front view]
[Bottom view]
[Side view]
