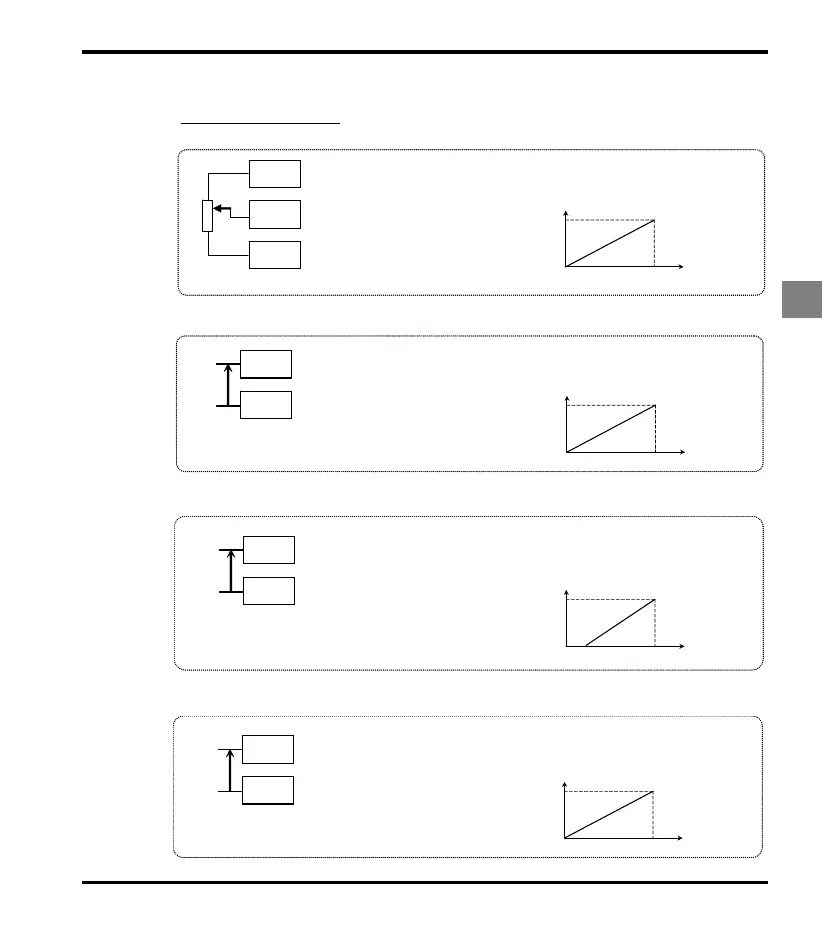

(2) Setting of frequency using external signals to terminal block (=)
 Frequency setting
1) Setting the frequency using external potentiometer
: Setting frequency
using potentiometer
★Potentiometer
Setting frequency using the potentiometer (1k -10k, 1/4W)
Refer to section 6.4.2 for detailed adjustment.
Frequency
60 / 90 Hz
0
MIN MAX
P5
CC
V
I
Note) Set parameter =.
2) Setting the frequency using voltage input (0-10V)
★Voltage signal
Setting frequency using voltage signals (0-10V).
Refer to section 6.4.2 for detailed adjustment.
Frequency
60 / 90 Hz
0
0Vdc 10Vdc
Note) Set parameter =.
CC
V I +
-
: Voltage signal 0-10Vdc
3) Setting the frequency using current input (4-20mA)
★Current Signal
Current signal Setting frequency using current signals (4-20mA).
Refer to section 6.4.2 for detailed adjustment.
Frequency
60 / 90 Hz
0
4mAdc 20mAdc
* Setting of parameters also allow 0-20mAdc.
Note) Set parameter = and =.
CC
V I +
-
: Current signal 4-20mAdc
4) Setting the frequency using voltage input (0-5V)
Note) Set parameter =.
CC
V I +
-
: Voltage signal 0-5Vdc
Frequency
60 / 90 Hz
0
0Vdc 5Vdc
★Voltage signal
Set the frequency using voltage signals (0-5V).
Refer to section 6.4.2 for detailed adjustment.
