1.3.2 Opening the terminal cover
Caution
Mandatory
action
When removing and installing the terminal cover with a screwdriver, be sure not to scratch your hand
as this results in injury.
Pressing too hard on the screwdriver may scratch the inverter.
Always cut the power supply when removing the wiring cover.
After wiring is complete, be sure to replace the terminal cover.

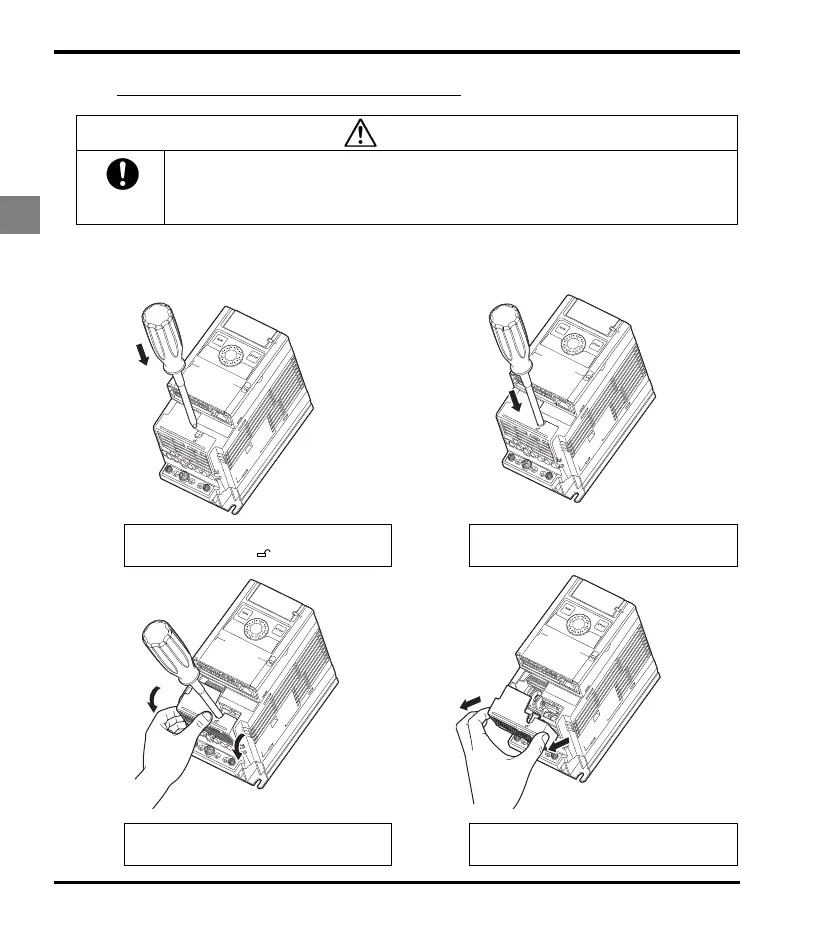

Use the following procedure to remove both the outside and inside terminal block covers.
(1) Removing the outside terminal block cover (VFNC3M-2001 to 2007PY -A30)
1)
2)
3) 4)
Insert a screwdriver or other thin object into the
hole indicated with the mark.
Press in on the screwdriver.
While pressing on the screwdriver, rotate the
terminal cover downward to remove it.
Pull the terminal cover up at an angle.
