Omron 3G3RX User Manual

4-86
4-2 Function Mode
4
Functions

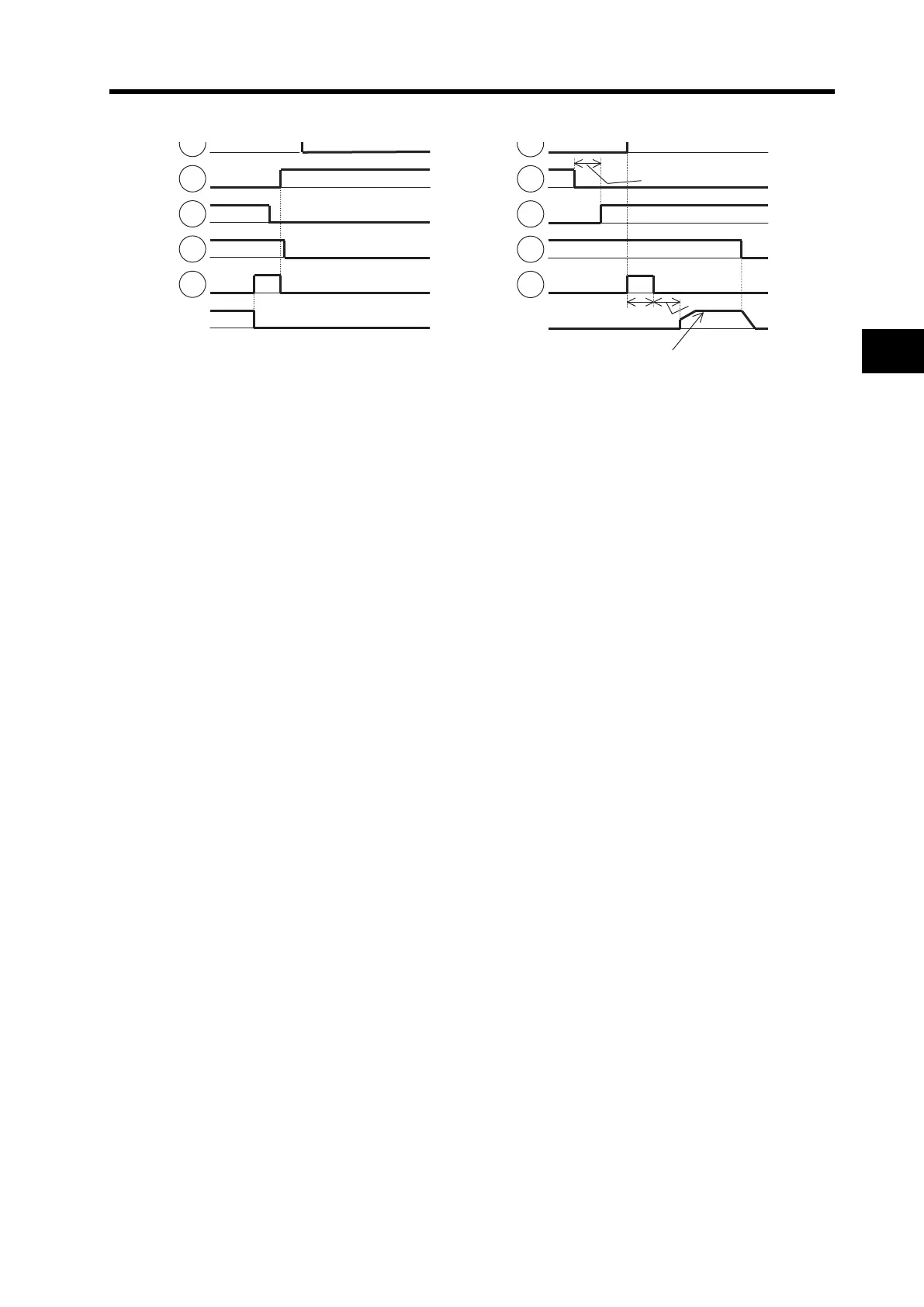

Timing example of switching from Timing example of switching from
Inverter to commercial power commercial power to Inverter
MC1
MC2
MC3
FW
CS
MC1
MC2
MC3
FW
CS
ON
ON
ON
ON
ON
Operation
Inverter output
frequency
Interlock time of MC2 and MC3
(0.5 to 1 s)
ON
ON
ON OFF
0.5 to 1 s
Retry wait time b003
Operation
Operates after
frequency matching.

Omron 3G3RX Specifications

General

Dimensions	Varies by model
Weight	Varies by model
Series	3G3RX
Power Rating	0.4 kW to 220 kW
Control Method	V/f control, Sensorless vector control
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat, Ground fault, Short circuit
Communication Options	RS-485, Modbus, DeviceNet, Profibus, Ethernet
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +60°C (-4 to 140°F)
Humidity	5% to 95% (non-condensing)
Vibration Resistance	5.9 m/s² (0.6G)
Cooling Method	Fan-cooled
