Omron 3G3RX User Manual

7-24
7-3 Options
7
Specifications
Output AC Reactor (AX-RAO-DE)

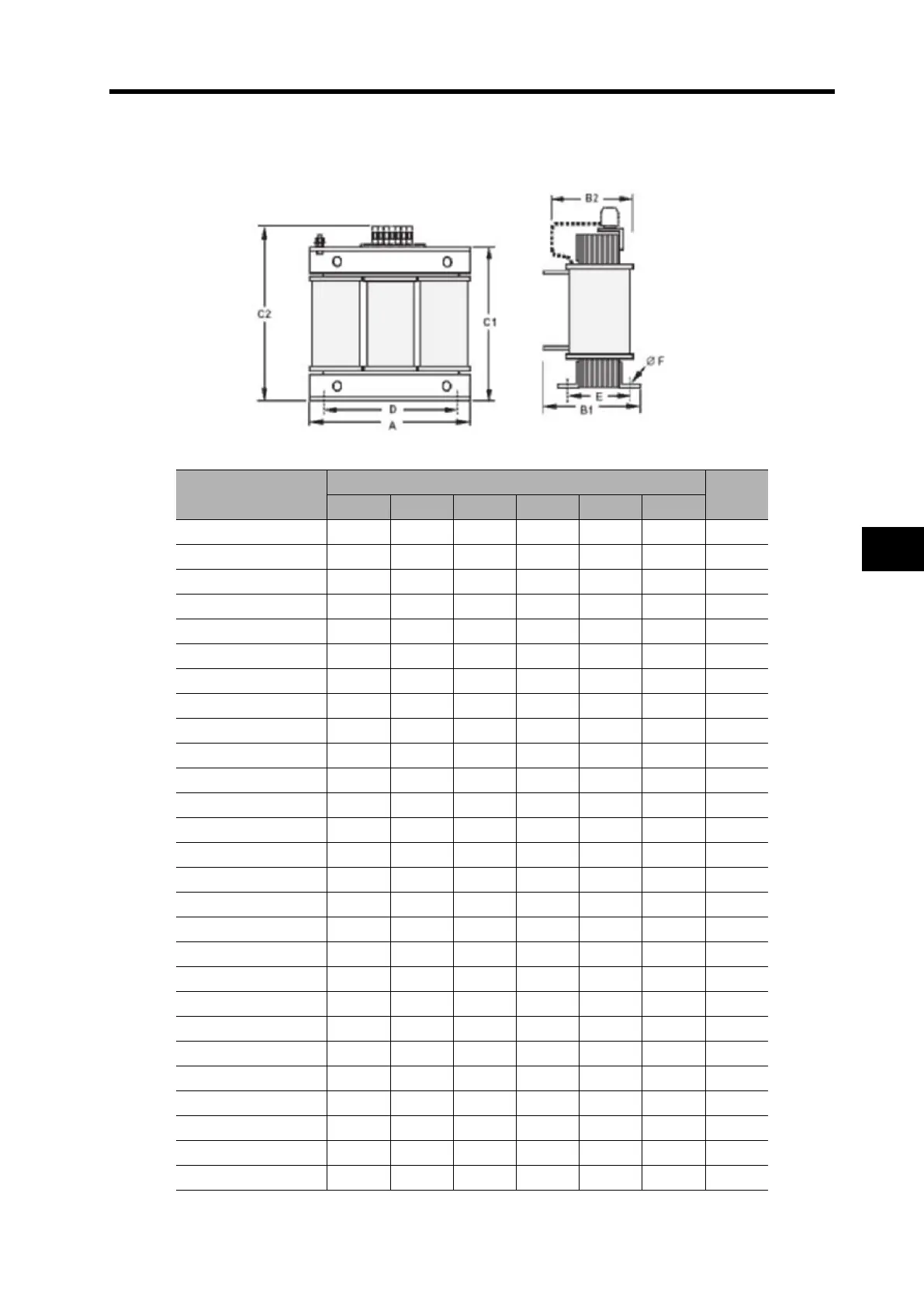

Dimensional Drawing
Reference
Dimensions Weight
Kg
A B2 C2 D E F
AX-RAO11500026-DE 120 70 120 80525.51.78
AX-RAO07600042-DE 120 70 120 80525.51.78
AX-RAO04100075-DE 120 80 120 80625.52.35
AX-RAO03000105-DE 120 80 120 80625.52.35
AX-RAO01830160-DE 180 85 190 140 55 6 5.5
AX-RAO01150220-DE 180 85 190 140 55 6 5.5
AX-RAO00950320-DE 180 85 205 140 55 6 6.5
AX-RAO00630430-DE 180 95 205 140 65 6 9.1
AX-RAO00490640-DE 180 95 205 140 65 6 9.1
AX-RAO00390800-DE 240 110 275 200 75 6 16.0
AX-RAO00330950-DE 240 110 275 200 75 6 16.0
AX-RAO00251210-DE 240 110 275 200 75 6 16.0
AX-RAO00191450-DE 240 120 275 200 85618.6
AX-RAO00161820-DE 240 150 275 200 110 6 27.0
AX-RAO00132200-DE 240 - - 200 110 6 27.0
AX-RAO16300038-DE 120 70 120 80525.51.78
AX-RAO11800053-DE 120 80 120 80525.52.35
AX-RAO07300080-DE 120 80 120 80625.52.35
AX-RAO04600110-DE 180 85 190 140 55 6 5.5
AX-RAO03600160-DE 180 85 205 140 55 6 6.5
AX-RAO02500220-DE 180 95 205 140 55 6 9.1
AX-RAO02000320-DE 180 105 205 140 85611.7
AX-RAO01650400-DE 240 110 275 200 75 6 16.0
AX-RAO01300480-DE 240 120 275 200 85618.6
AX-RAO01030580-DE 240 120 275 200 85618.6
AX-RAO00800750-DE 240 120 275 200 110 6 27.0
AX-RAO00680900-DE 240 150 275 200 110 6 27.0
