97
DST1-MD16SL-1 Section 5-2
5-2 DST1-MD16SL-1

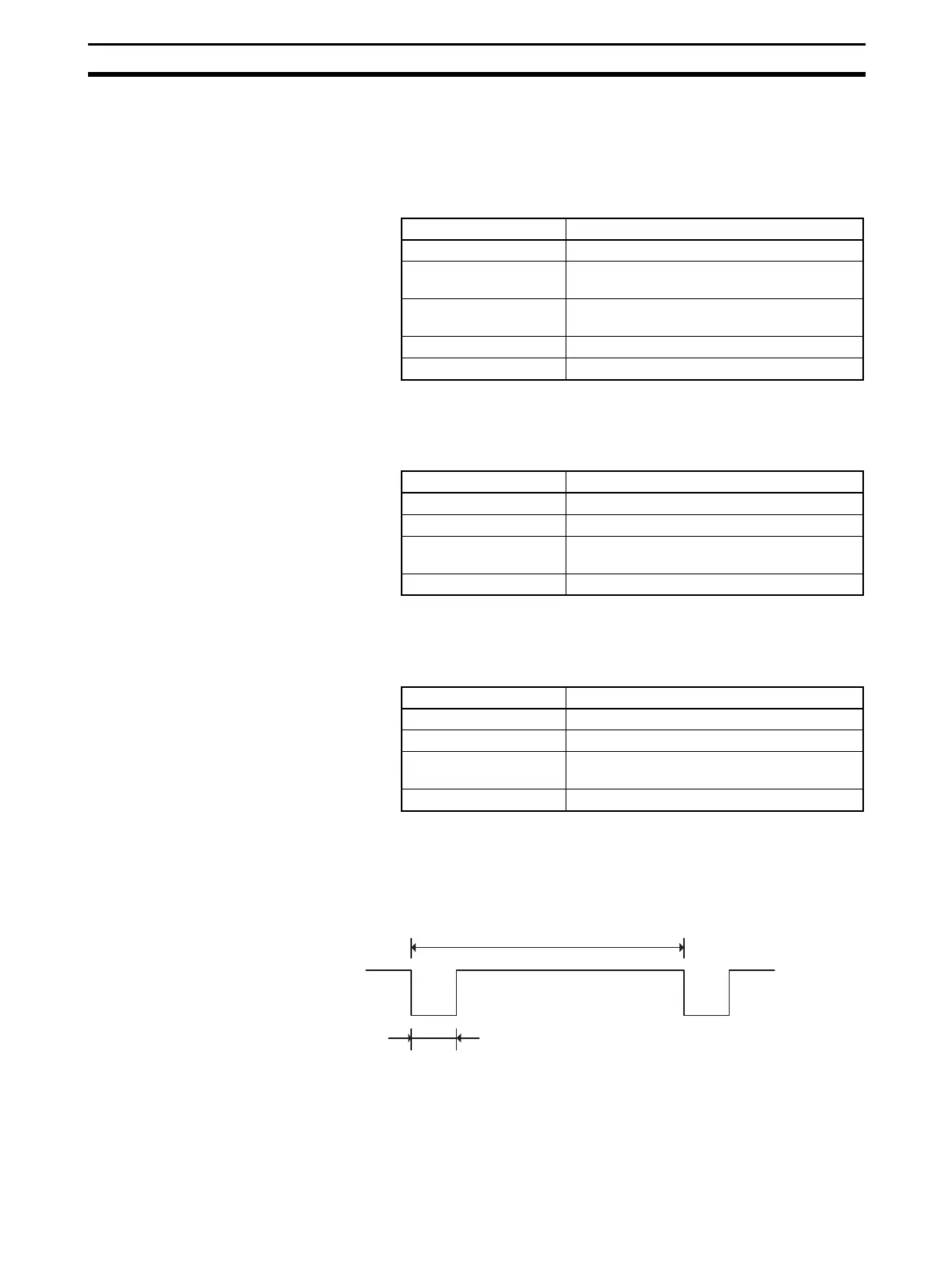

5-2-1 Safety Input Specifications
The following table gives the safety input specifications for the DST1-
MD16SL-1.
5-2-2 Test Output Specifications
The following table gives the test output specifications for the DST1-
MD16SL-1.
5-2-3 Safety Output Specifications for Semiconductor Outputs
The following table gives the safety output specifications for the Semiconduc-
tor outputs on the DST1-MD16SL-1.
IMPORTANT In case that a safety output is configured as Safety pulsed test, while this out-
put is in an ON state, the signal sequence shown below is output continuously
to enable diagnosis. Confirm the response times of the devices connected to
the safety outputs so that the devices do not malfunction due to the OFF
pulse.
Item Specifications
Input type Sinking input (PNP)
ON voltage 11 VDC min. between each input terminal
and G0
OFF voltage 5 VDC max. between each input terminal and
G0
OFF current 1 mA max.
Input current 6 mA
Item Specifications
Output type Sourcing output (PNP)
Rated output current 0.7 A
Residual voltage 1.2 V max. between each output terminal and
V0
Leakage current 0.1 mA max.
Item Specifications
Output type Sourcing output (PNP)
Rated output current 0. 5 A
Residual voltage 1.2 V max. between each output terminal and
V1
Leakage current 0.1 mA max.
ON
OFF
580 µs
t
pical
648 ms
typical
To Next Page
