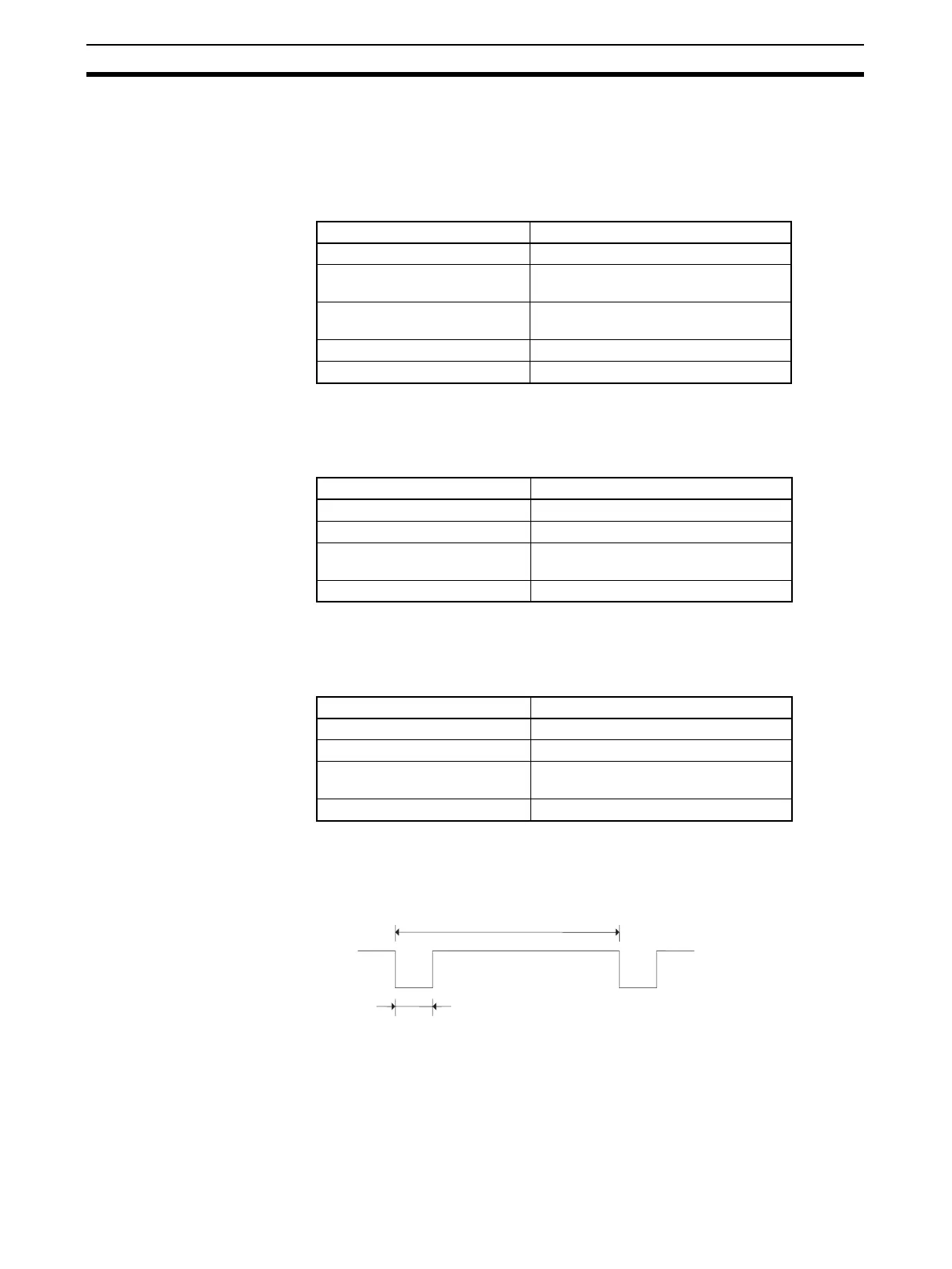

DST1-XD0808SL-1 Section 5-4
5-4 DST1-XD0808SL-1
5-4-1 Safety Input Specifications
The following table gives the safety input specifications for the DST1-
XD0808SL-1.
5-4-2 Test Output Specifications
The following table gives the test output specifications for the DST1-
XD0808SL-1.
5-4-3 Safety Output Specifications for Semiconductor Outputs
The following table gives the safety output specifications (for semiconductor
outputs) for the DST1-XD0808SL-1.
When the safety output channel mode for a safety output terminal is set to
Safety Pulse Test, the following pulse signal is output when the safety output
turns ON. Confirm the input response times for control devices connected the
safety outputs so that the devices do not malfunction due to the OFF pulse.
5-4-4 Nomenclature
The following figure shows the names of the DST1-XD0808SL-1.
Item Specifications
Input type Sinking input (PNP)
ON voltage 11 VDC min. between each input termi-
nal and G0
OFF voltage 5 VDC max. between each input termi-
nal and G0
OFF current 1 mA max.
Input current 6 mA
Item Specifications
Output type Sourcing output (PNP)
Rated output current 0.7 A
Residual voltage 1.2 V max. between each output termi-
nal and V0
Leakage current 0.1 mA max.
Item Specifications
Output type Sourcing output (PNP)
Rated output current 0.5 A
Residual voltage 1.2 V max. between each output termi-
nal and V1
Leakage current 0.1 mA max.
ON
OFF
Approx. 580 µs
Approx. 648 ms
