Editing Parameters Section 3-1
3-1-6 Safety Output Parameter Groups

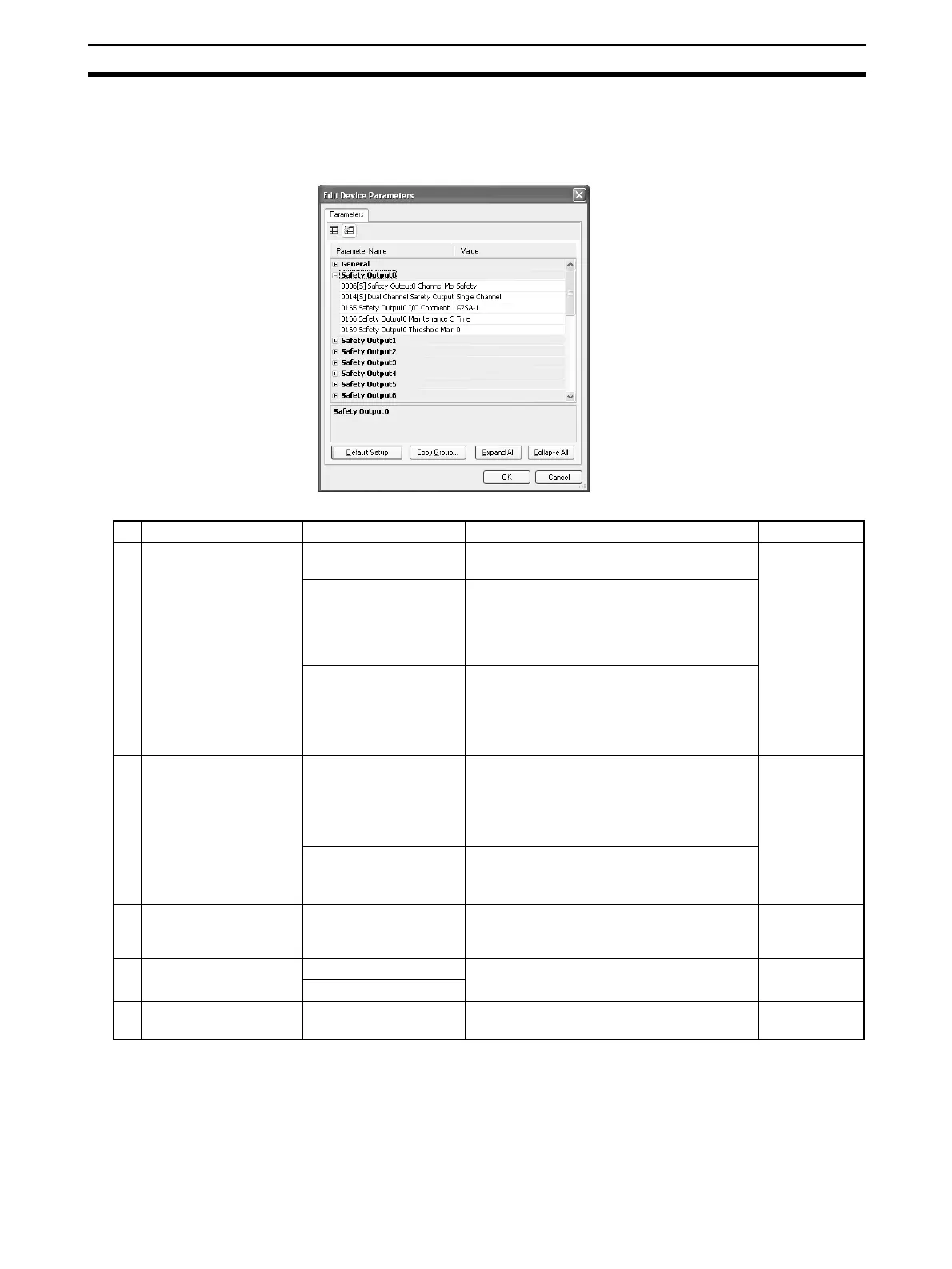

This section describes parameters in the safety output groups.
The safety output parameters are grouped by terminal number.
Item Settings Description Default
S Safety Output Channel
Mode
Not Used. The safety output is not used. (External out-
put device not connected.)
Not Used.
Safety Specifies not outputting the test pulse when
the output is ON. Contact between the out-
put signal line and the power supply (posi-
tive) when the output is OFF and ground
faults can be detected.
Safety Pulse Test
(Setting supported only
for the DST1-MD16SL-
1.)
Outputs the test pulse when the output is
ON.
Contact between the output signal line and
the power supply, and short circuits with
other output signal lines can be detected.
S Dual Channel Safety
Output Mode
Single Channel Specifies using Single Channel Mode.
When Single Channel is set, the safety out-
put that would be paired for the dual channel
parameter is also set to Single Channel
Mode.
Dual Channel
Dual Channel Specifies using Dual Channel Mode.
When both of the safety outputs to be paired
are normal, the outputs can be turned ON.
I/O Comment 32 characters max. Sets an I/O comment for the safety output.
The I/O comment set here is used as the I/O
tag in the Logic Editor.
None
Maintenance Counter
Mode Choice
Time Sets the operating mode for the mainte-
nance counter.
Time
Count
Threshold Mainte-
nance Counter
0 to 4,294,967,295
hours
Sets the threshold value for the maintenance
counter.
0
