10.8 Replacing Periodic Parts

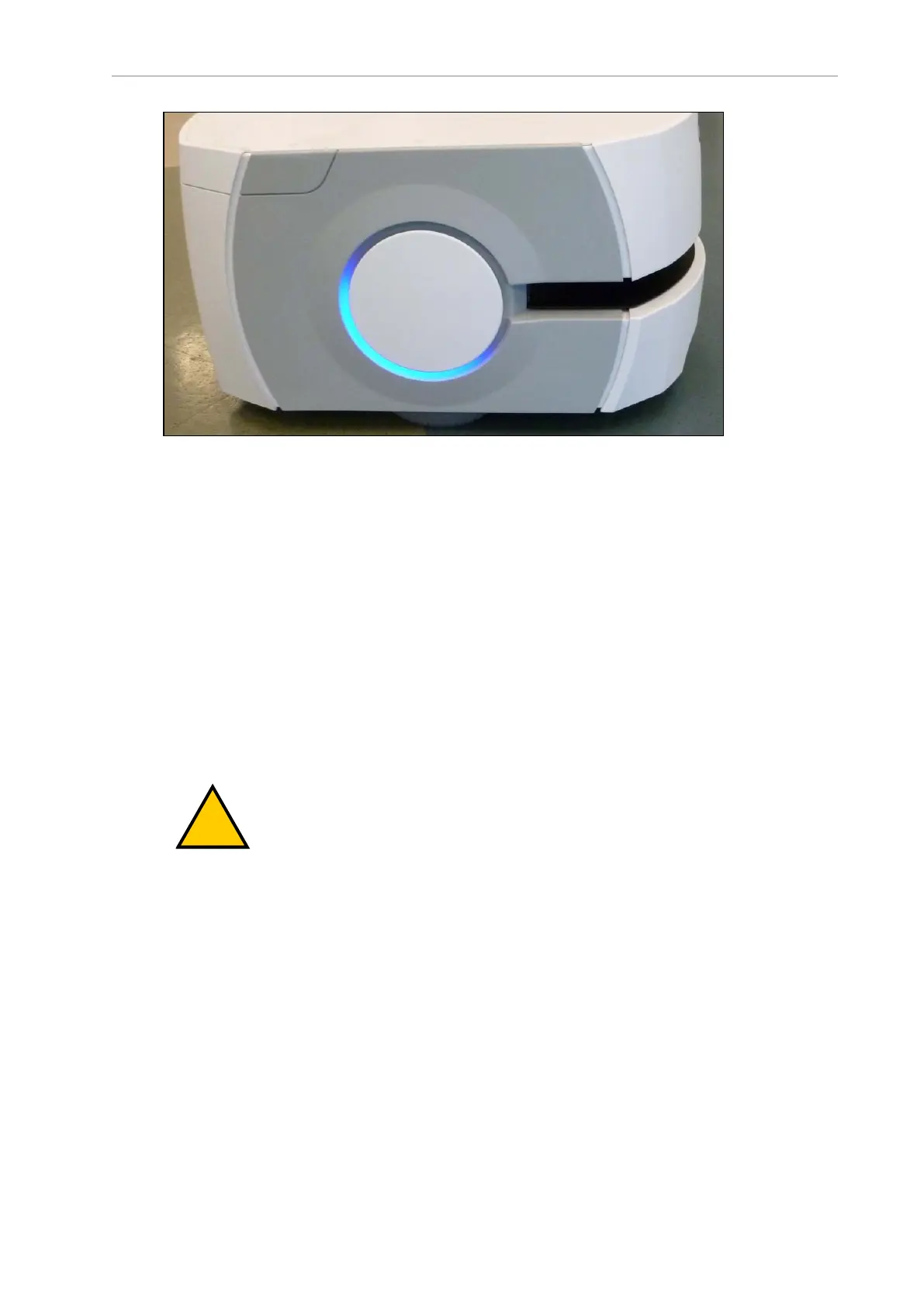

Figure 10-11. Right Side Cover, Showing Even Gaps at Edges
NOTE: The gaps between the side covers and the bumper cover will be smaller
than the other gaps, and will not be even.
Access Panel
1.
Slide the panel to the right, so its tab goes under the left side cover.
The panel is attached with a lanyard, to prevent getting lost.
2.
Press the left (front) side of the panel in, and the latch will hold it.
This is a toggle latch - pressing it once engages it, pressing it a second time releases it.
Rear Inner (Battery) Cover
1.
Slide the cover up, so its top tab fits under the rear outer cover.
CAUTION: PINCHRISK
This cover is the most likely to pinch you if you are not careful, par-
ticularly at its bottom edge. Hold the cover at the bottom, in the center,
with two hands.
2.
Holding the cover near the center, with both hands, tilt the bottom of the cover down,
towards the platform chassis.
10.8 Replacing Periodic Parts
The drive motors and gearbox are sealed and permanently lubricated, so they do not require
periodic maintenance.
