Chapter 3: Setup
LD Platform Cart Transporter

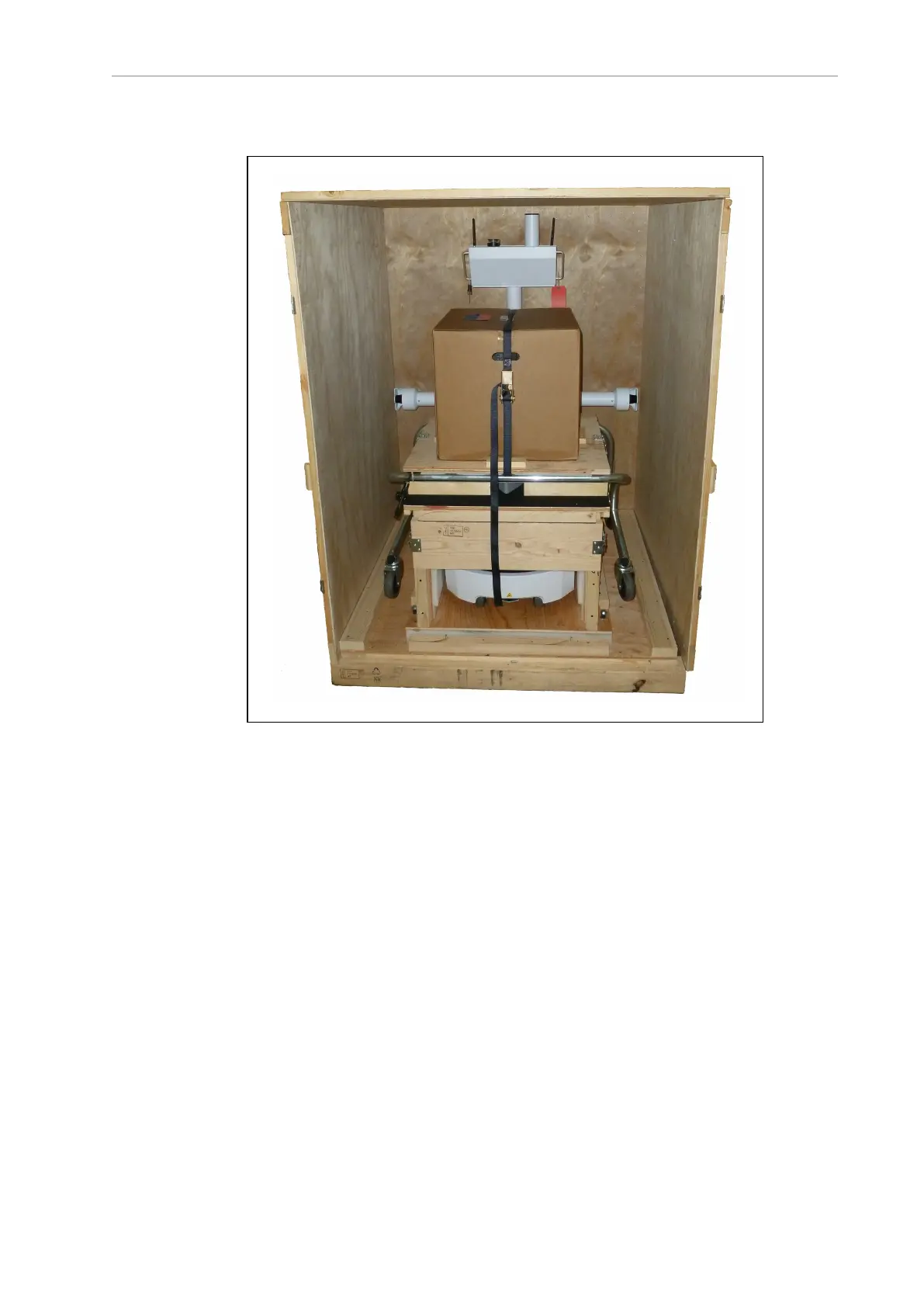

Figure 3-2. Cart and LD Platform Cart Transporter in Crate
The transporter crate measures 1257 x 1149 x 1645 mm (49.50 x 45.25 x 64.75 inches).
Removing the Front Panel
The front panel of the transporter crate doubles as a ramp, for rolling the platform off of the
crate base.
1.
Release the latches that hold the front panel to the crate.
There are four spring-loaded latches.
