166 LD Cart Transporter User's Manual 14766-000 Rev H
10.9 ī ±Replacing Non-Periodic Parts

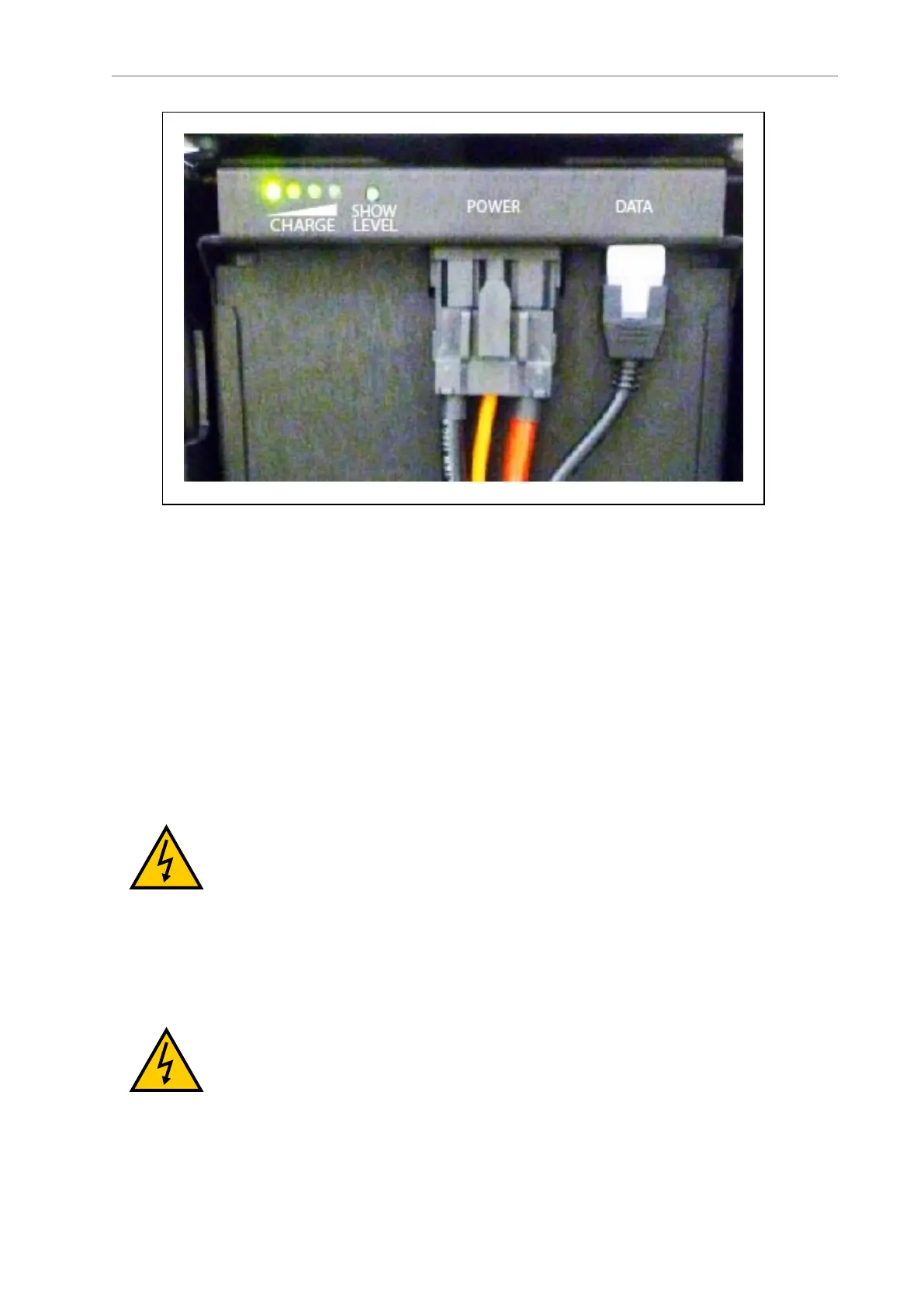

Figure 10-12. Battery Cable Connectors
4.
Slide the battery back and out of the platform.
There is a hand grip at the front and the rear of the battery, to help you lift it.
Installation
Refer to Installing the Battery on page 47 for instructions on installing the battery.
10.9 Replacing Non-Periodic Parts
All of the following parts are replaced on an as-needed basis.
Docking Station Roller and Bearing
WARNING: ELECTROCUTIONī ±RISK
There are no user-serviceable parts inside the docking station. Do not remove
the covers of the docking station. There is high voltage inside, and the covers
are not interlocked.
The roller, which guides the platform onto the docking station, may be subject to wear after
extended use. The time to replace the roller should be based on your visual inspection and
judgment of when it is too worn. We do not specify a quantitative measure for this.
Refer to the following figure for the location of the roller.
WARNING: ELECTROCUTIONī ±RISK
Unplug power from the docking station before starting. Remove the power cord
at the docking station.
