188 LD Cart Transporter User's Manual 14766-000 Rev H
11.2 Specifications
591.82
480.06
845.82
254
295.4
8x M6
234.44
234.44
234.44
234.44
254
254
254
A

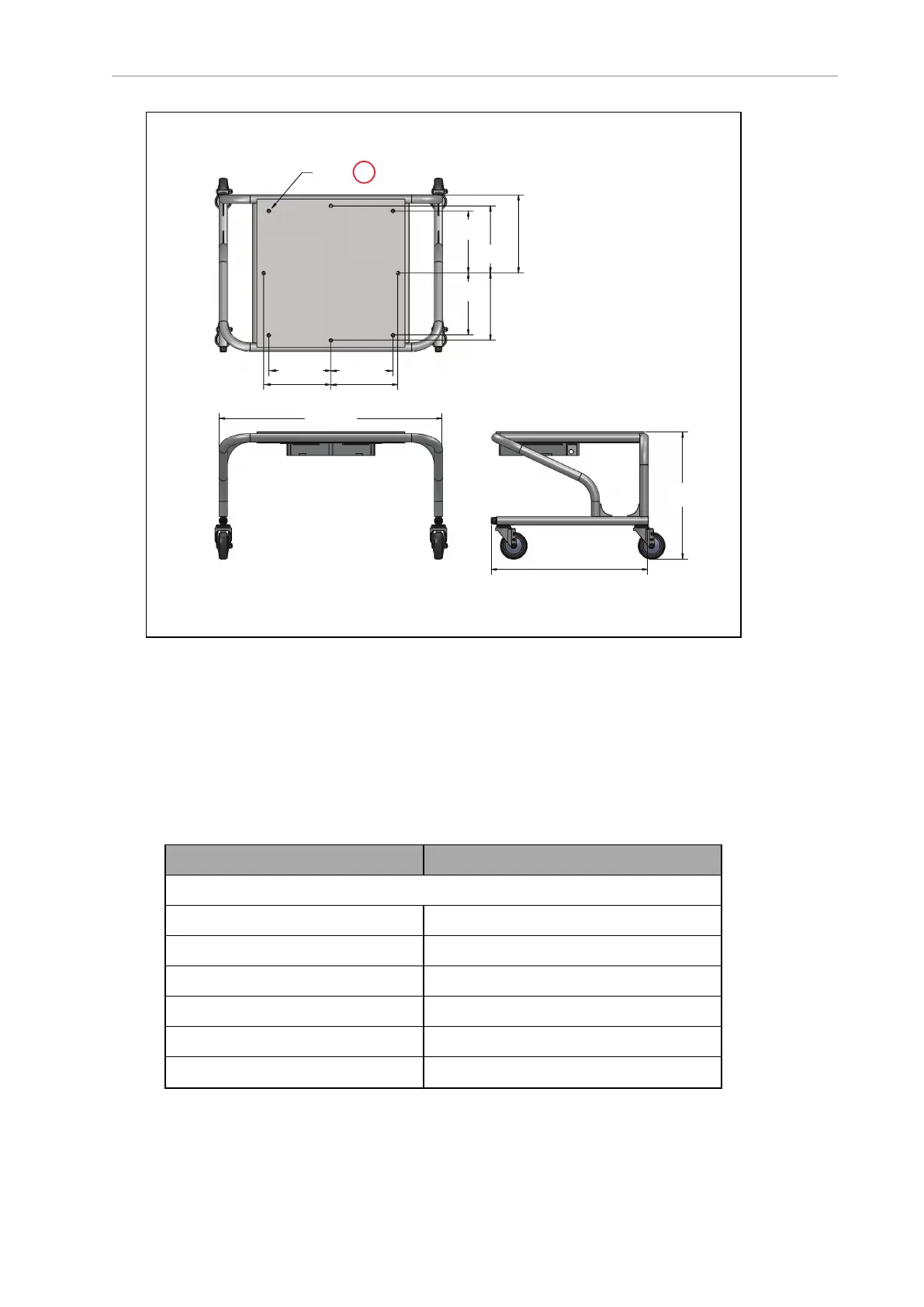

Figure 11-3. Cart Dimensions, (A) Threads (units in mm)
If you have a factory-supplied cart, these preceding dimensions show where you will attach
your payload.
11.2 Specifications
LD Platform Cart Transporter Physical
Description Specification
Physical
Overall Length (with HMI post) 894 mm
Width (at side lasers) 1073 mm
Height (body) 383 mm
Overall Height (with HMI post) 1393 mm
Weight (with battery) 81 kg (179 lb)
Body clearance 50 mm

Omron LD-105CT Specifications

General

Brand	Omron
Model	LD-105CT
Category	Robotics
Language	English
