3.38
9850045 R01 - 2020-2021 RANGER 1000 Service Manual
© Copyright Polaris Inc.

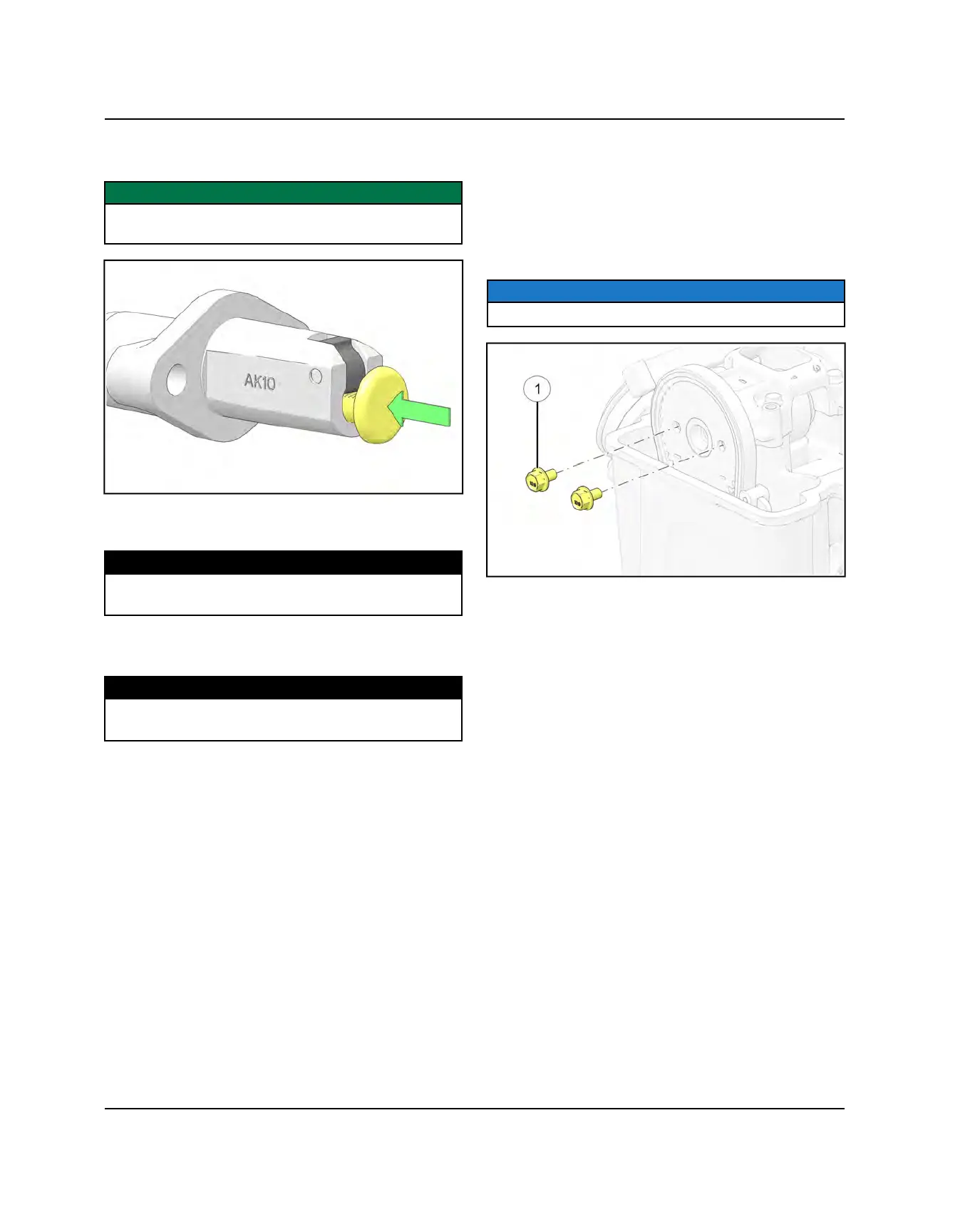

5. Retract the plunger all the way in and install into the
cylinder.
IMPORTANT
Ensure the plunger and spring are not installed when
installing the tensioner.
6. Install the two mounting bolts. Torque fasteners to
specification.
TORQUE
Tensioner Mounting Fastener:
7 ft-lbs (10 Nm)
7. Install the plunger bolt. Torque fastener to
specification.
TORQUE
Plunger Bolt:
15 ft-lbs (20 Nm)
8. Turn the engine over by hand to ensure proper chain
tension is applied.
CAMSHAFT SPROCKET SERVICE
REMOVAL
1. Remove the valve cover. Refer to Valve Cover
Service page 3.35.
2. Remove the two fasteners
q
securing the camshaft
sprocket to the camshaft and slide the sprocket off
the camshaft.
NOTICE
Fasteners are one time use. Discard after removing.
INSTALLATION
1. Perform engine timing procedure. Refer to Engine
Timing page 3.32.
2. Reinstall the valve cover. Refer to Valve Cover
Service page 3.35.
ENGINE / COOLING / EXHAUST
