10.24
9850045 R01 - 2020-2021 RANGER 1000 Service Manual
© Copyright Polaris Inc.
REAR CALIPER SERVICE

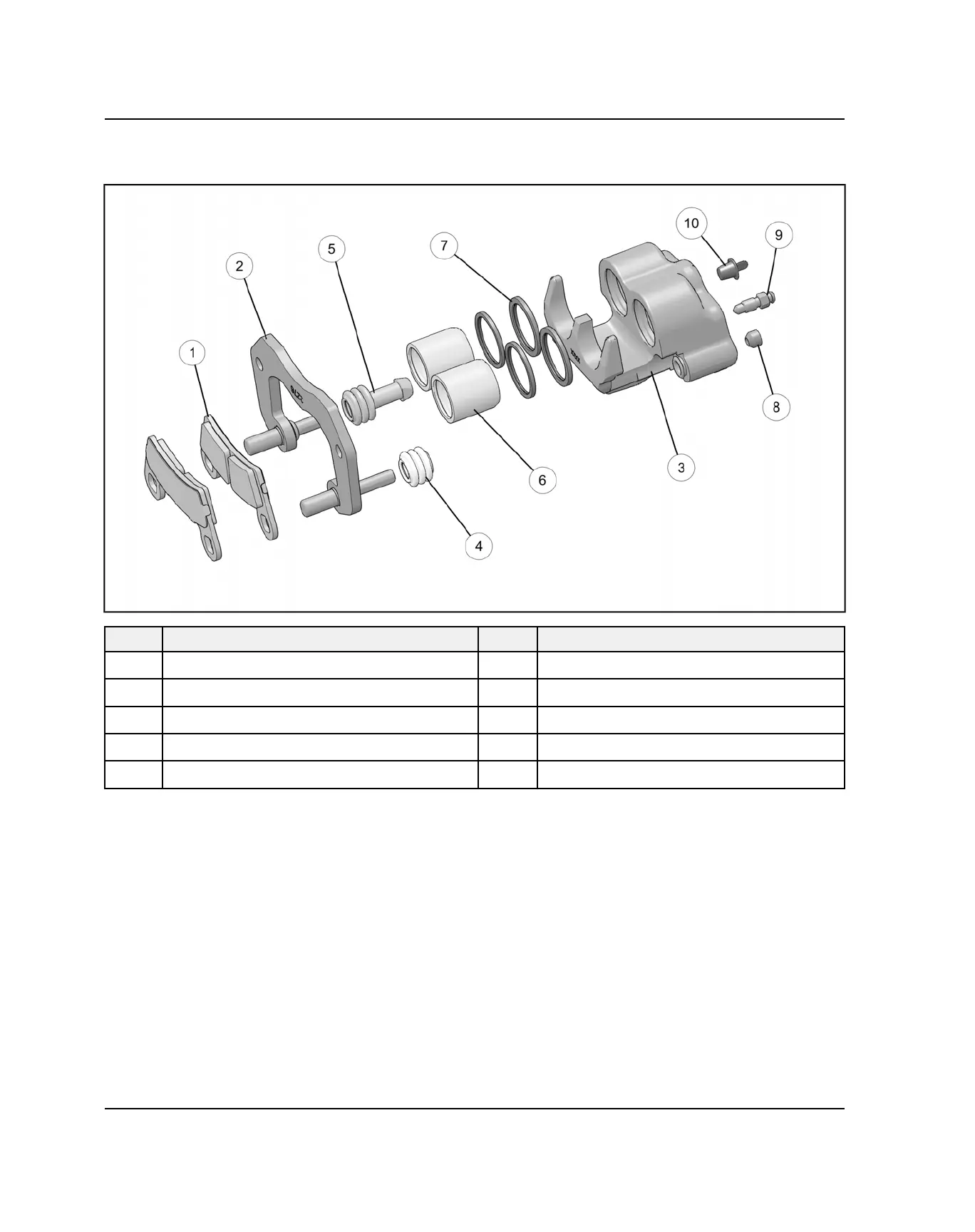

REAR CALIPER ASSEMBLY VIEW
REF
PART DESCRIPTION
REF
PART DESCRIPTION
q
Brake Pad Assembly
y
Brake Piston
w
Caliper Mount Assembly
u
Ring
e
Brake Caliper
i
Bolt
r
Pin Seal Boot
o
Bleeder Screw
t
Pin Bushing Boot
a
Plug Cap
BRAKE SYSTEM
