8
9850045 R01 - 2020-2021 RANGER 1000 Service Manual
© Copyright Polaris Inc.
8.5

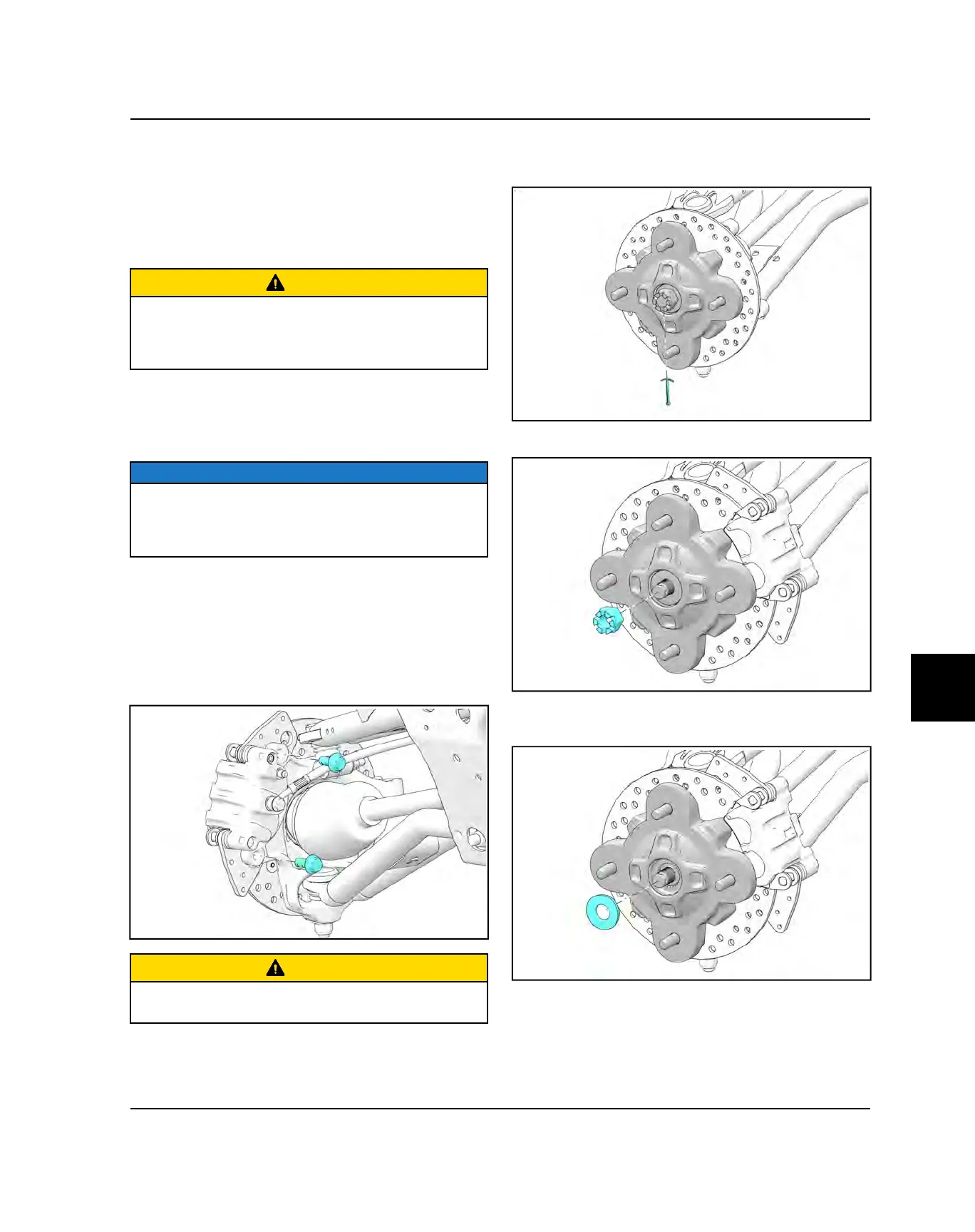

FRONT BEARING CARRIER SERVICE
BEARING CARRIER REMOVAL /
INSPECTION
INSPECTION
1. Elevate vehicle and safely support machine under the
frame area.
CAUTION
Serious injury may result if machine tips or falls. Be
sure machine is secure before beginning this service
procedure. Wear eye protection when removing
bearings and seals.
2. Check bearings for side play by grasping the top and
bottom of the tire firmly and checking for movement.
The tire should rotate smoothly without binding or
rough spots.
NOTICE
Side to side play could also indicate tie rod end wear
and top to bottom play could also indicate upper or
lower ball joint wear. Be sure to closely inspect these
components if play is found.
REMOVAL
1. Remove the wheel nuts and wheel of the affected
bearing carrier.
2. Remove the rubber dust cap if equipped.
3. Remove the two brake caliper mounting bolts and
remove caliper assembly.
CAUTION
Do not hang caliper by the brake line. Use wire to hang
caliper to prevent damage to brake line.
4. Remove the cotter pin.
5. Remove the front wheel hub castle nut.
6. Remove the washer(s) from the front wheel hub
assembly.
FINAL DRIVE
