4. Push shifter into Park while looking for dash
movement. If the plastic dash moves and the shifter
contacts the cut-out before a shift is complete, the
shift cable is not adjusted correctly.
5. If the shift cable is found to be out of adjustment,
proceed with Shift Cable Adjustment.
STOP!
If the shifter does not contact the dash in park or high
the shift cable requires no further adjustment, reinstall
the rubber bezel.
Shift cable adjustment may be necessary if symptoms
include:
• No gear position or incorrect gear position shown.
• AWD light displayed on instrument cluster
• Ratcheting noise on deceleration
• Inability to engage into a gear
• Excessive gear lash (noise)
• Gear selector moving out of desired range
Inspect shift cable, clevis pins, and pivot bushings and
replace if worn or damaged.
SHIFT CABLE ADJUSTMENT
Shift cable adjustment may be necessary if symptoms
include:
• No gear position or incorrect gear position shown.
• AWD light displayed on instrument cluster
• Ratcheting noise on deceleration
• Inability to engage into a gear
• Excessive gear lash (noise)
• Gear selector moving out of desired range
Inspect shift cable, clevis pins, and pivot bushings and
replace if worn or damaged.

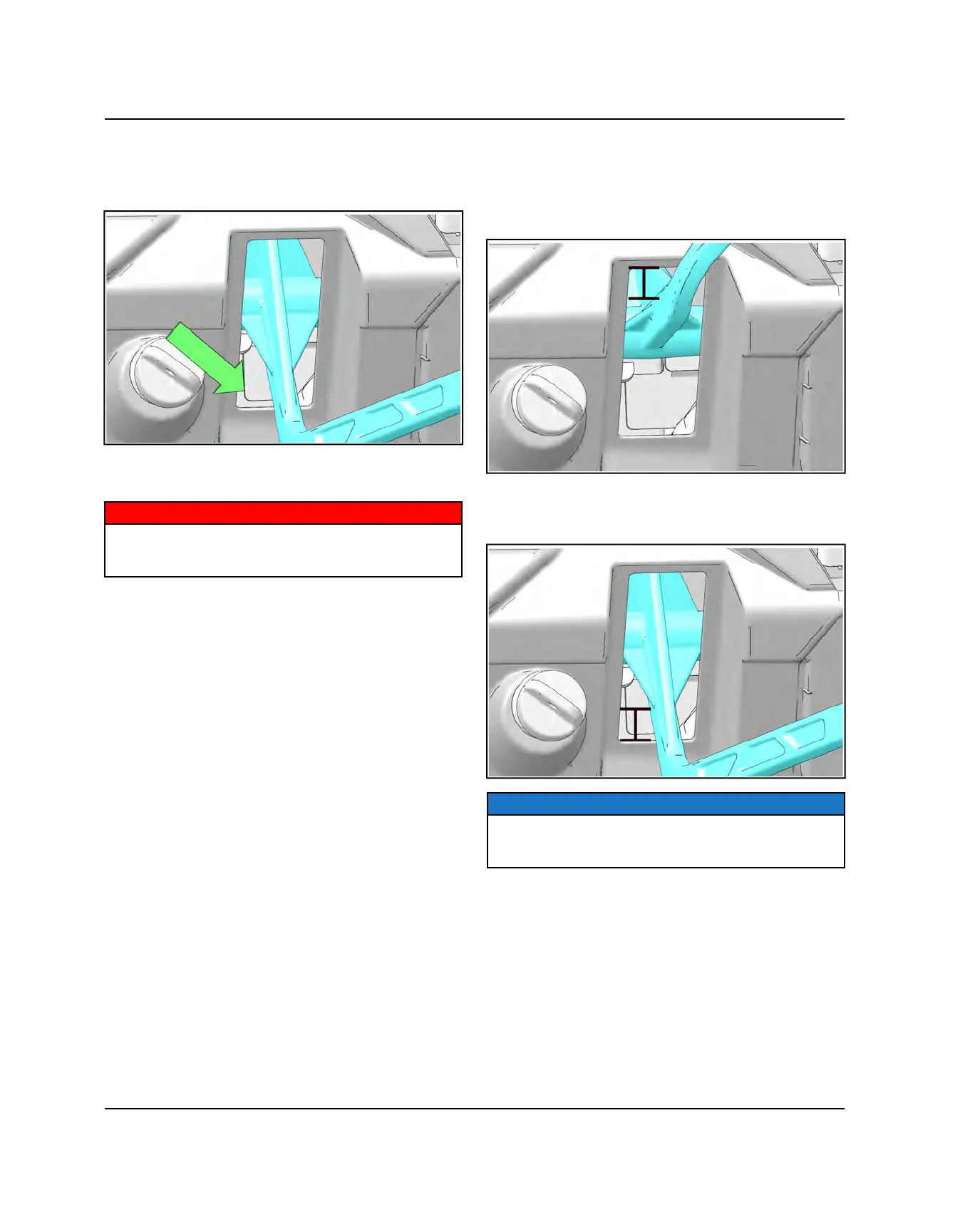

1. Shift to High Gear, release the shifter. Measure the
distance between shifter and top side of the dash
opening.
2. Shift to Park, release the shifter. Measure the
distance between shifter and bottom side of the dash
opening.
NOTICE
For optimal shift cable adjustment, the gap
measurements in High and Park should be equal. This
will ensure the shifter will not contact the dash.
TRANSMISSION
To Next Page
