8.20
9850045 R01 - 2020-2021 RANGER 1000 Service Manual
© Copyright Polaris Inc.

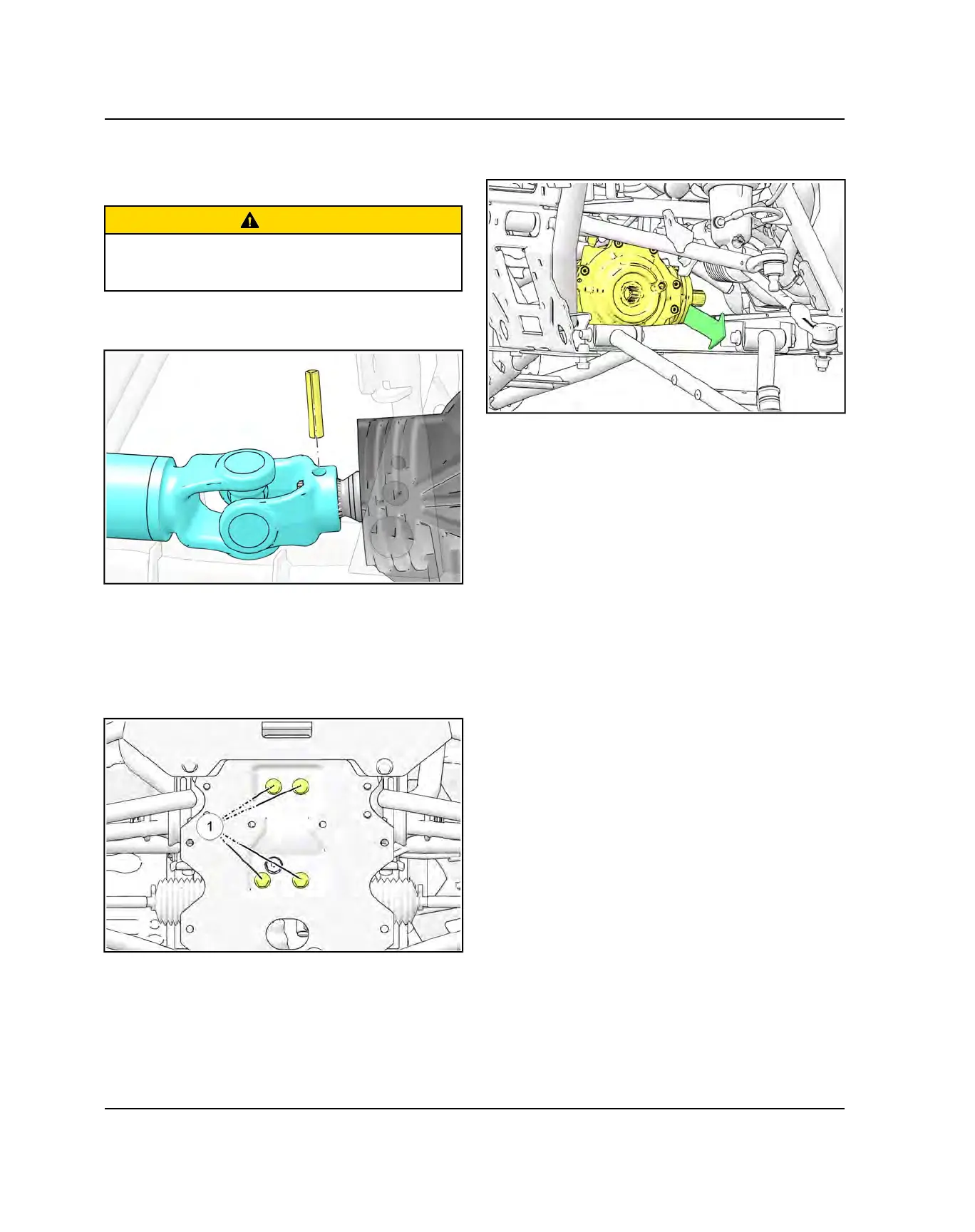

FRONT GEARCASE REMOVAL
1. Place the transmission in Park. Elevate front of
vehicle and safely support machine under the frame.
CAUTION
Serious injury may result if machine tips or falls.Be sure
machine is secure before beginning this service
procedure.
2. Remove the prop shaft pin at the front differential
using special tool (PN 2872608)
3. Slide the propshaft off the front gearcase input shaft
splines.
4. Disconnect the AWD wire harness and remove the
plastic zip tie holding the AWD coil pigtail.
5. Remove the bolts
q
retaining the front gearcase to
the skid plate frame.
6. Remove the vent hose from the front gearcase.
7. Remove the front gearcase from the left-hand side
between the upper and lower control arms.
FINAL DRIVE
To Next Page
