6.10
9850045 R01 - 2020-2021 RANGER 1000 Service Manual
© Copyright Polaris Inc.
INSTALLATION

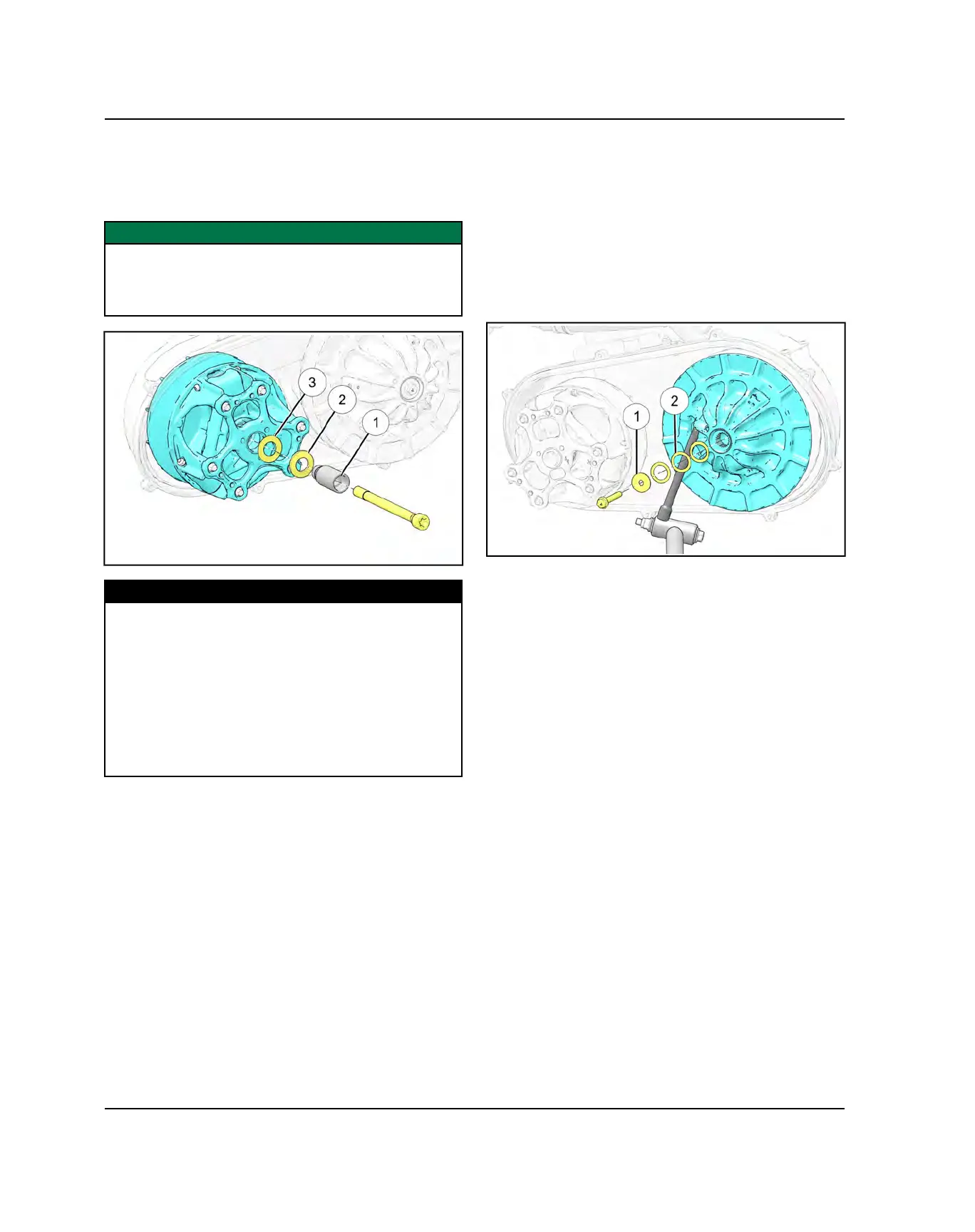

1. Install the drive clutch and drive clutch holding tool
(PU-52430) and torque the drive clutch bolt to
specification.
IMPORTANT
Ensure proper orientation of washers. Orientation
should be as follows: Clutch Spider, Yellow Washer
e
,
Silver Belleville Washer with dome side facing outwards
towards Outer Post,
w
and Outer Post
q
.
TORQUE
Drive Clutch Retaining Bolt (Moveable sheave only
removed):
96 ft-lbs (130 Nm)
Drive Clutch Retaining Bolt (Stationary sheave
completely removed):
Step 1: 110 ft-lbs (149 Nm)
Step 2: Loosen Fastener
Step 3: 96 ft-lbs (130 Nm)
DRIVEN CLUTCH REMOVAL /
INSTALLATION
REMOVAL
1. Remove the drive belt. Refer to Drive Belt Service
page 6.4
2. Wedge a six inch extension between the driven clutch
movable sheave and the A-arm.
3. Remove the driven clutch bolt, belleville washer
q
and all washers
w
. Slide the clutch off the vehicle.
PVT SYSTEM
