MASTER CYLINDER SERVICE

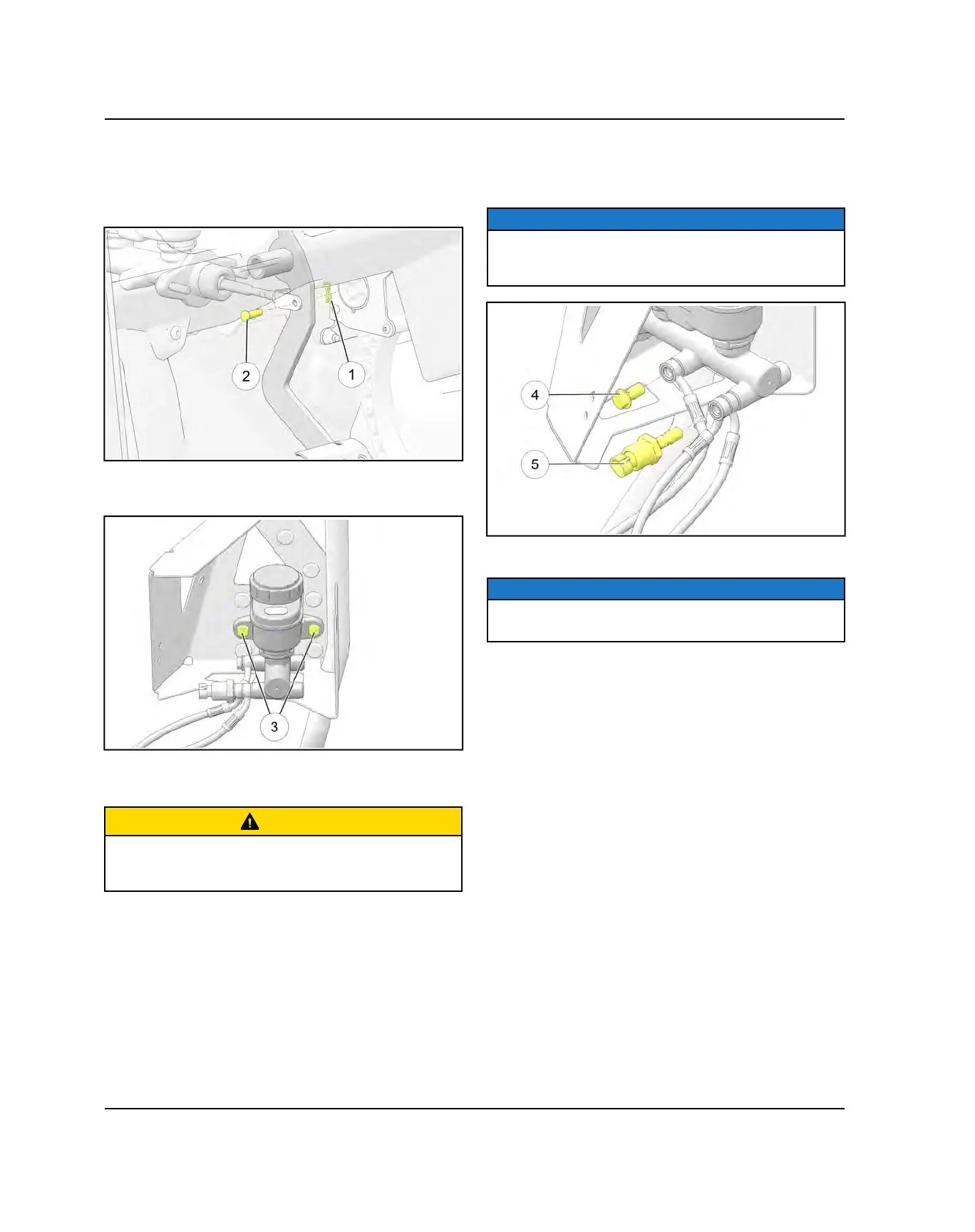

MASTER CYLINDER REMOVAL
1. Remove retaining clip
q
from the clevis pin
w
that
attaches the master cylinder to the brake pedal lever.
2. Remove the two mounting bolts
e
that secure the
master cylinder to the frame.
3. Remove master cylinder and place a fluid catch
container under the master cylinder brake lines.
CAUTION
Brake fluid will damage finished surfaces.
Do not allow brake fluid to come in contact with finished
surfaces.
4. Loosen the brake line banjo bolt
r
and brake switch
t
allowing the fluid to drain.
NOTICE
Tractor models will have two pressure switches, and
ABS models will have no pressure switches located on
the master cylinder.
5. Discard seals and replace upon assembly.
NOTICE
Make note of front and rear brake line orientation on the
master cylinder.
6. Dispose of brake fluid properly and DO NOT re-use.
