9850045 R01 - 2020-2021 RANGER 1000 Service Manual
© Copyright Polaris Inc.
CHARGING SYSTEM SERVICE
STATOR

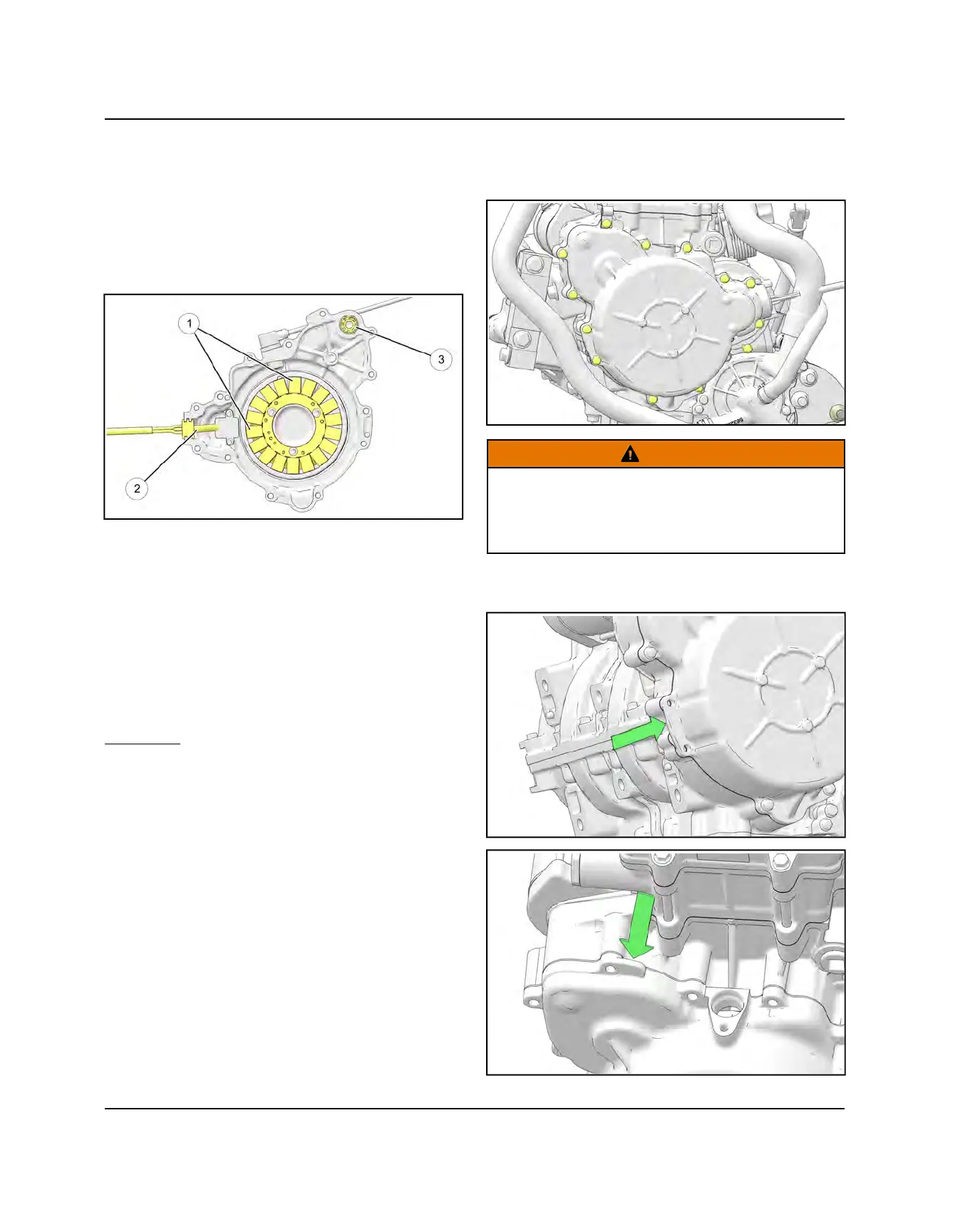

STATOR INSPECTION
1. Remove the Stator Cover. Refer to Stator Cover
Service page 3.70.
2. Inspect the condition of the stator windings
q
and
output wires
w
. Replace if necessary. Refer to
3. Inspect the ball bearing
e
that supports the starter
motor shaft.
4. If bearing replacement is required, remove the
retaining ring and heat the stator cover around the
bearing evenly with a heat gun. Tap cover on a soft
work surface to remove the bearing from the housing.
A blind bearing puller can also be used. Replace
bearing if removed.
STATOR SERVICE
REMOVAL
1. Disconnect the battery. Refer to Battery Service page
2.62
2. Remove the Crankshaft Position Sensor. Refer to
CPS Replacement page 4.11.
3. Disconnect the stator connector.
4. Remove the thirteen screws retaining the stator
cover.
WARNING
The flywheel contains powerful magnets. Use caution
when removing and installing the stator cover. DO NOT
place fingers between cover and crankcase at any time
during the removal / installation process or injury could
result.
5. Carefully pry the stator cover off the engine using the
two pry areas as shown below.
