5
9850045 R01 - 2020-2021 RANGER 1000 Service Manual
© Copyright Polaris Inc.
5.9

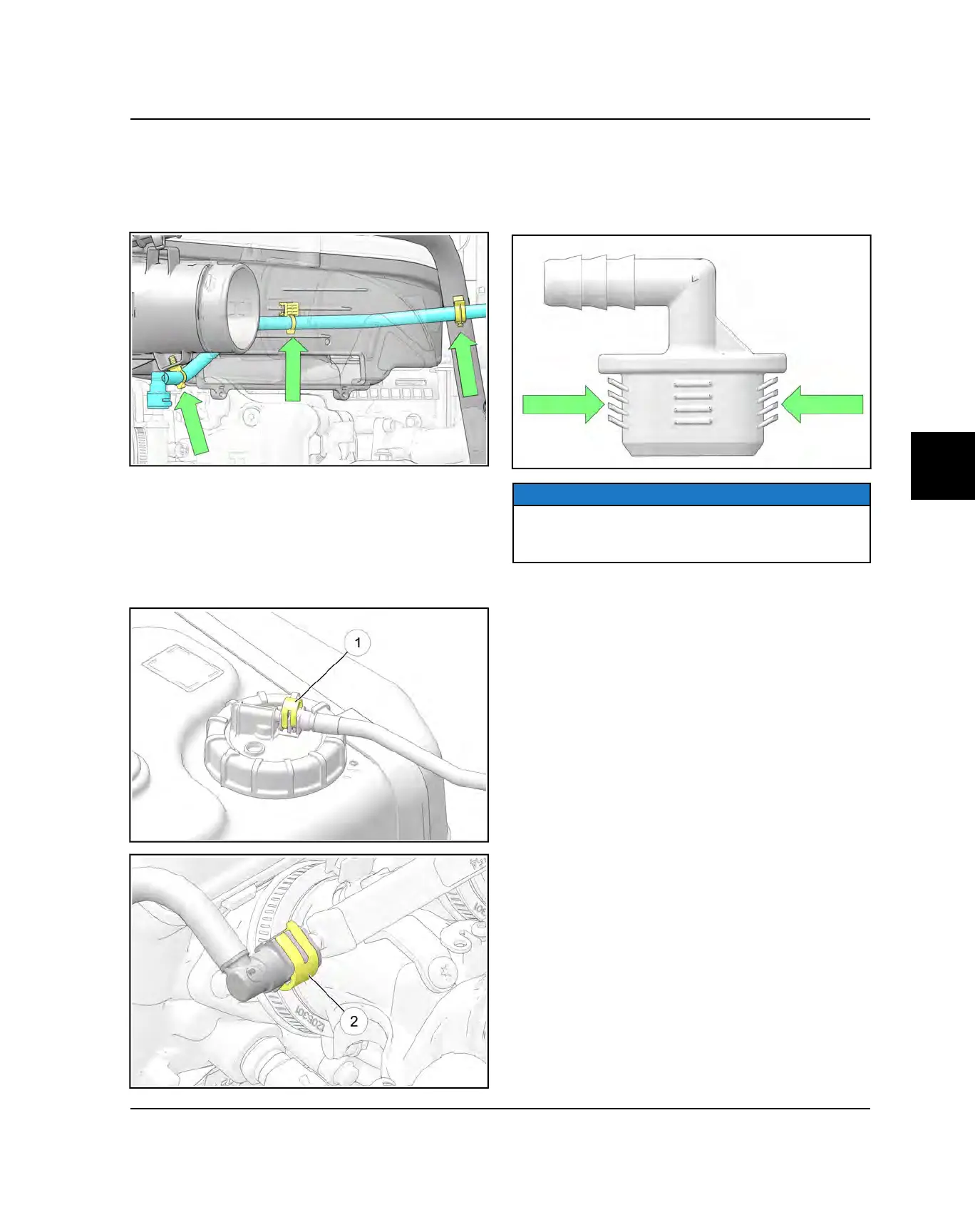

INSTALLATION
1. Install the fuel line in the vehicle and connect the
retention clips on the inner clutch cover and engine
breather hose. Refer to Fuel Line Routing page 5.5
for more details.
2. Ensure the fuel line connections are clean and free of
debris.
3. Place the fuel line back over the fitting at the fuel tank
q
and fuel rail
w
and slide the connector locking
mechanism back into place. Verify the connector tabs
snap back into place by pulling out lightly on
connector.
VENT LINE TERMINATION FITTING
This fitting should be inspected and tested using a Mity
Vac™ to ensure proper venting. Connect the Mity Vac to
the fitting and give it 5 pumps. The gauge should return
to 0 immediately or there is an obstruction.
NOTICE
If the vent line fitting is removed from the frame, it must
be replaced. The ears on the clip (arrows) will not hold
properly once it is removed.
FUEL SYSTEM
