9850045 R01 - 2020-2021 RANGER 1000 Service Manual
© Copyright Polaris Inc.

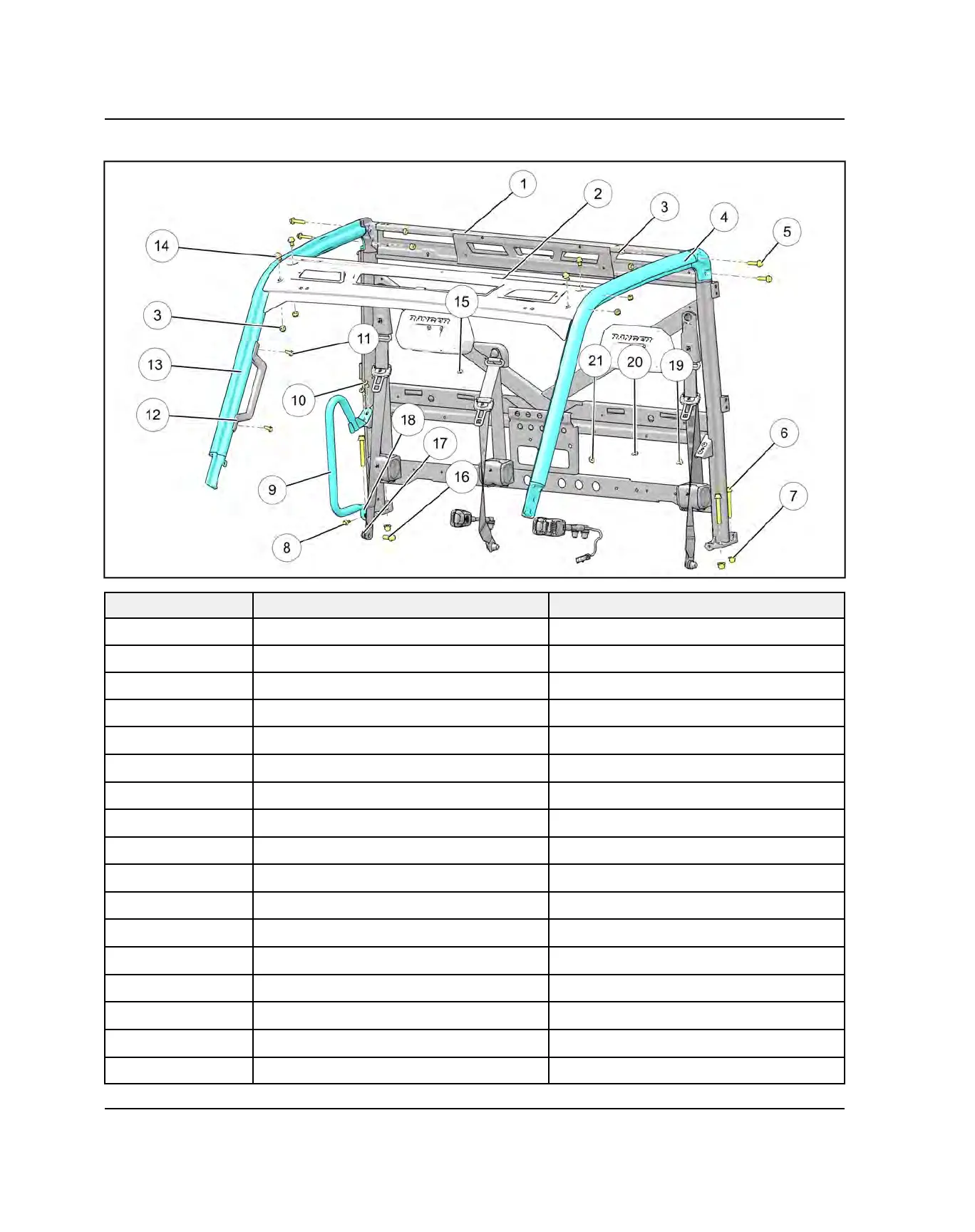

ROPS ASSEMBLY VIEW
REF
DESCRIPTION TORQUE
q
Rear Cab Frame
NA
w
Windshield Plate NA
e
Front Cab Frame Fastener Nut 40 ft-lbs (54 Nm)
r
Cab Frame-Front Left
NA
t
Front Cab Frame Fastener 40 ft-lbs (54 Nm)
y
Rear Cab Frame Fastener 45 ft-lbs (61 N·m)
u
Rear Cab/Seat Belt Fastener Nut 45 ft-lbs (61 N·m)
i
Bolster Lower Fastener
6 ft-lbs (8 Nm)
o
Passenger Bolster NA
a
Side Bezel Fastener 6 ft-lbs (8 Nm)
s
Passenger Grab Handle Fasteners 10 ft-lbs (14 Nm)
d
Passenger Grab Handle
NA
f
Cab Frame- Front Right
NA
g
Windshield Plate Fastener
36 ft-lbs (49 Nm)
h
Seat Back Screw 18 inch-lbs (2 Nm)
j
Seat Belt Fastener 40 ft-lbs (54 Nm)
k
Rubber Washer NA
BODY / FRAME
