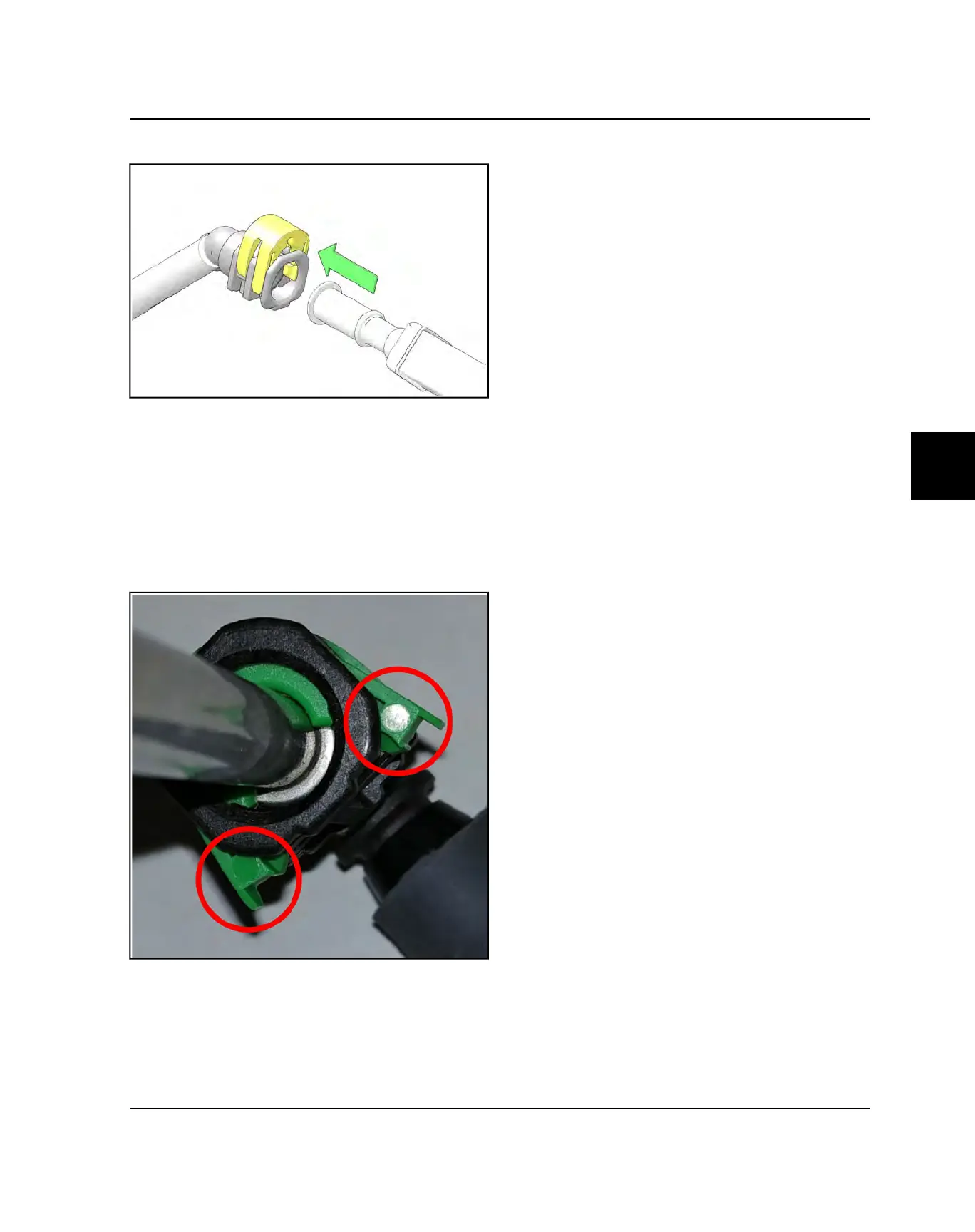

6. Remove quick connect from the fuel fitting.
Replacement Needs:
Indicators that the quick connect is damaged, and
assembly replacement is needed:
1. The retaining clip can be closed without the insertion
of a hard line end. The retaining clip is designed to
lock only when a hard line end has been fully
inserted.
2. Retaining tabs are deformed and no longer lock into
the body of the quick connect.
3. Broken retaining tabs, or any sign of cracks in the
retaining clip. The retaining clip is responsible for
holding the quick connect on the line when under fuel
pressure.
4. Quick connect has been twisted from its original
inserted position, or the connector has been
damaged.
