INSTALLATION

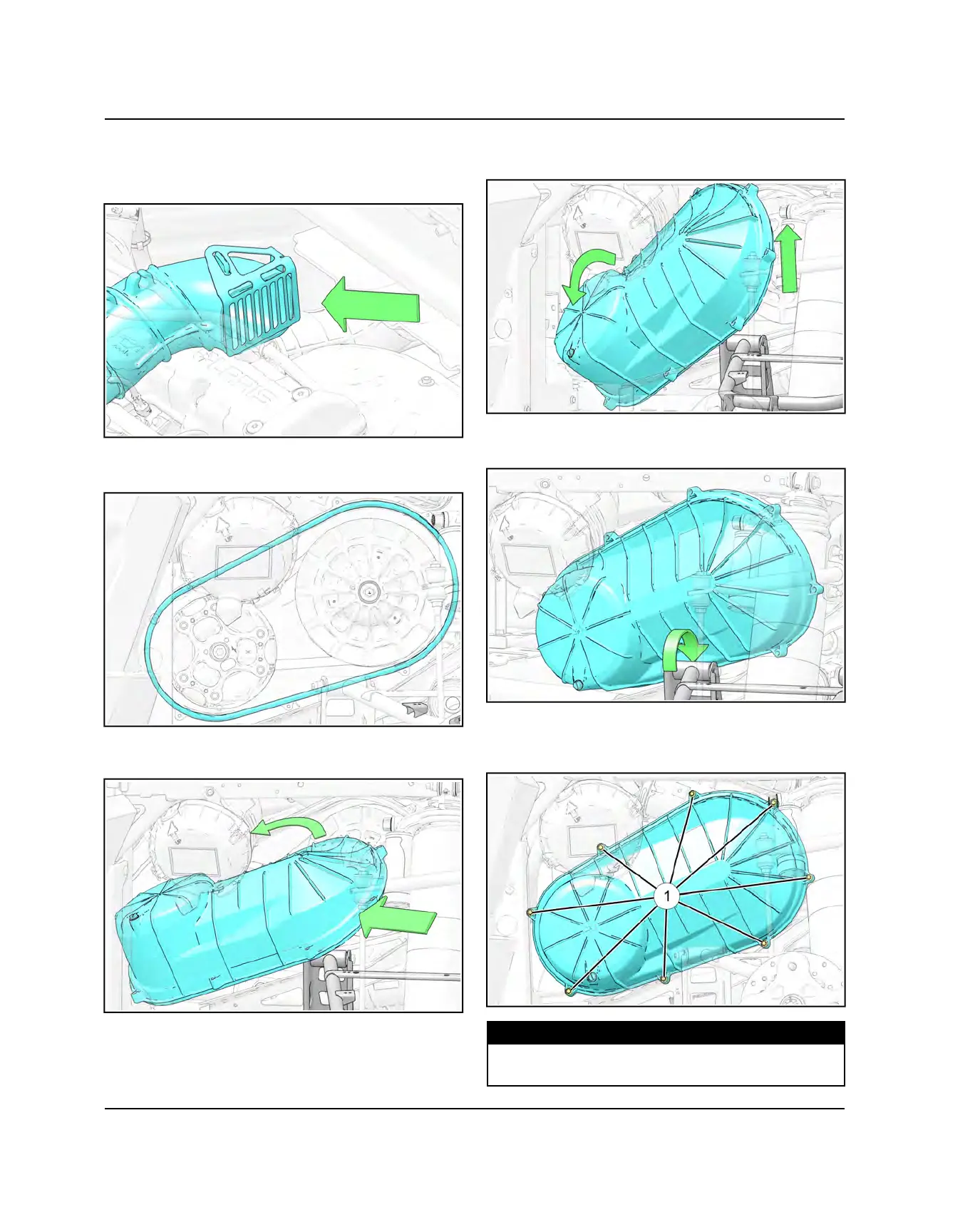

1. Remove any debris found in the clutch ducting before
reassembly.
2. Ensure the clutch cover seal is fully seated and
inspect for damage. Replace if necessary.
3. Install the cover in the vehicle and rotate counter
clockwise.
4. Lift the rear of the cover up to the a-arm while
simultaneously rotating away from the engine.
5. Lift the cover over the a-arm assembly and line up
with mounting holes.
6. Install the eight fasteners
q
to secure the clutch
cover to the vehicle. Torque the fasteners to
specification.
TORQUE
Clutch Cover Fasteners:
44 in-lbs (5 Nm)
PVT SYSTEM
