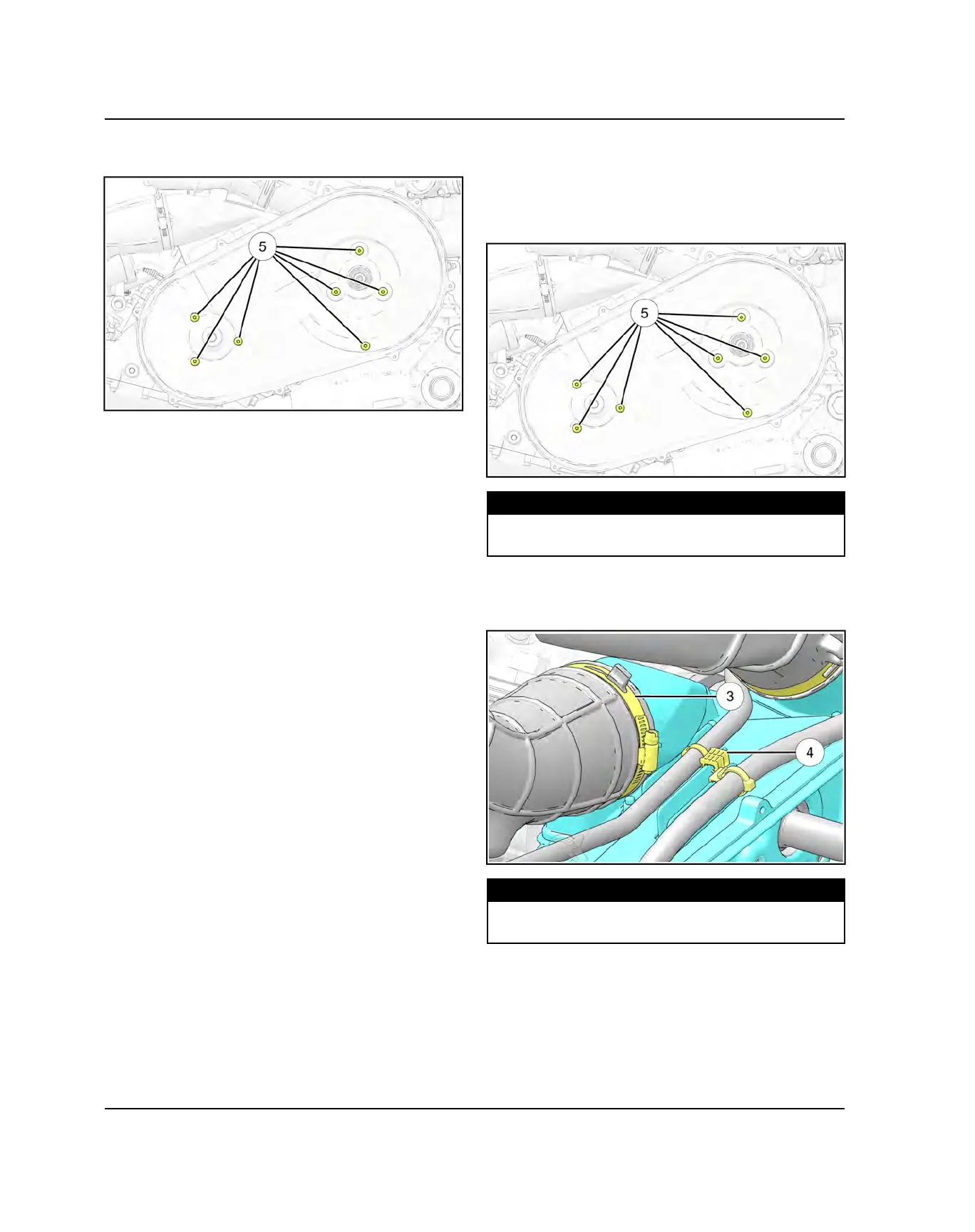

7. Remove the seven inner clutch cover fasteners
t
and remove the inner clutch cover.
INSTALLATION
1. Inspect the seals on the engine and transmission
input shaft. Replace if necessary.
2. Install the inner clutch cover and the seven cover
fasteners
t
. Torque to specification.
TORQUE
Inner Clutch Cover Fasteners:
5 ft-lbs (7 Nm)
3. Install the retention clips
r
on the top of the clutch
cover and air duct
e
. Torque the air duct clamp to
specification.
TORQUE
PVT Air Duct Clamp:
35 in-lbs (4 Nm)
4. Connect the three retention clips
q
to secure the
chassis harness and fuel line to the inner clutch
cover.
PVT SYSTEM
