12
9850045 R01 - 2020-2021 RANGER 1000 Service Manual
© Copyright Polaris Inc.
12.15

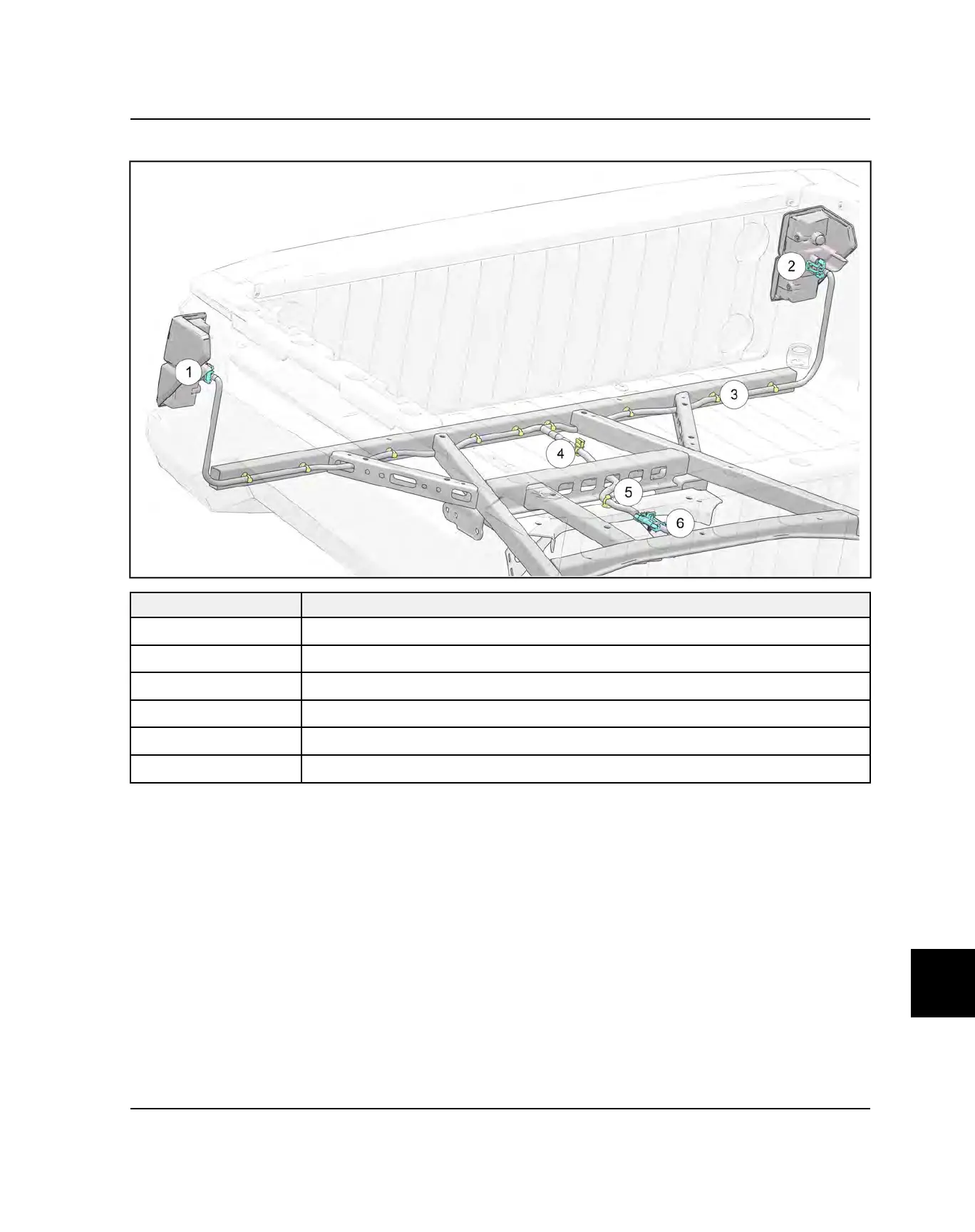

CARGO BOX ROUTING
REF DESCRIPTION
q
Right Tail Light Connector
w
Left Tail Light Connector
e
Retention Clip (Into Cargo Box Frame)
r
Retention Clip (Into Bottom of Cargo Box)
t
Retention Clip Tree (Into Vehicle Frame)
y
Cargo Box Harness Connector (Tree Clip Into Intake Manifold)
CHASSIS / BODY ELECTRICAL
